Test H: Radio Interference

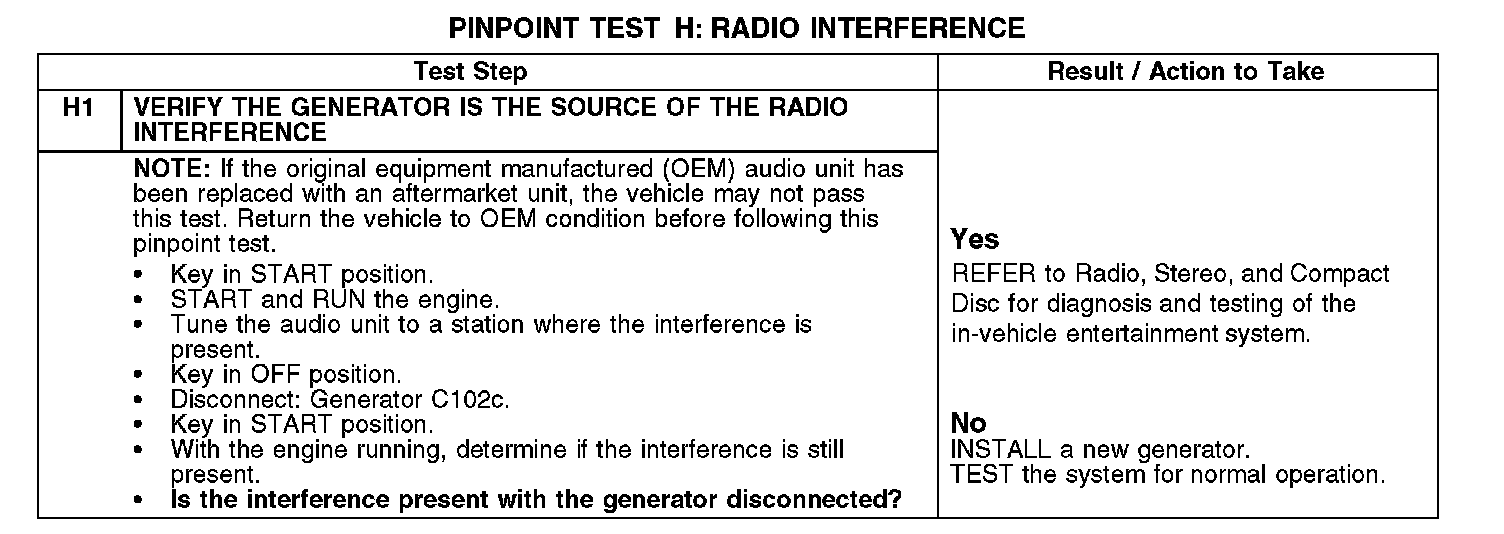

PINPOINT TEST H: RADIO INTERFERENCE


H1:






Normal Operation
The generator radio suppression equipment reduces interference transmitted through the speakers by the vehicle electrical system.

Possible Causes
- Generator
- In-vehicle entertainment system
