Wiper and Washer Systems
Wiper and Washer Systems

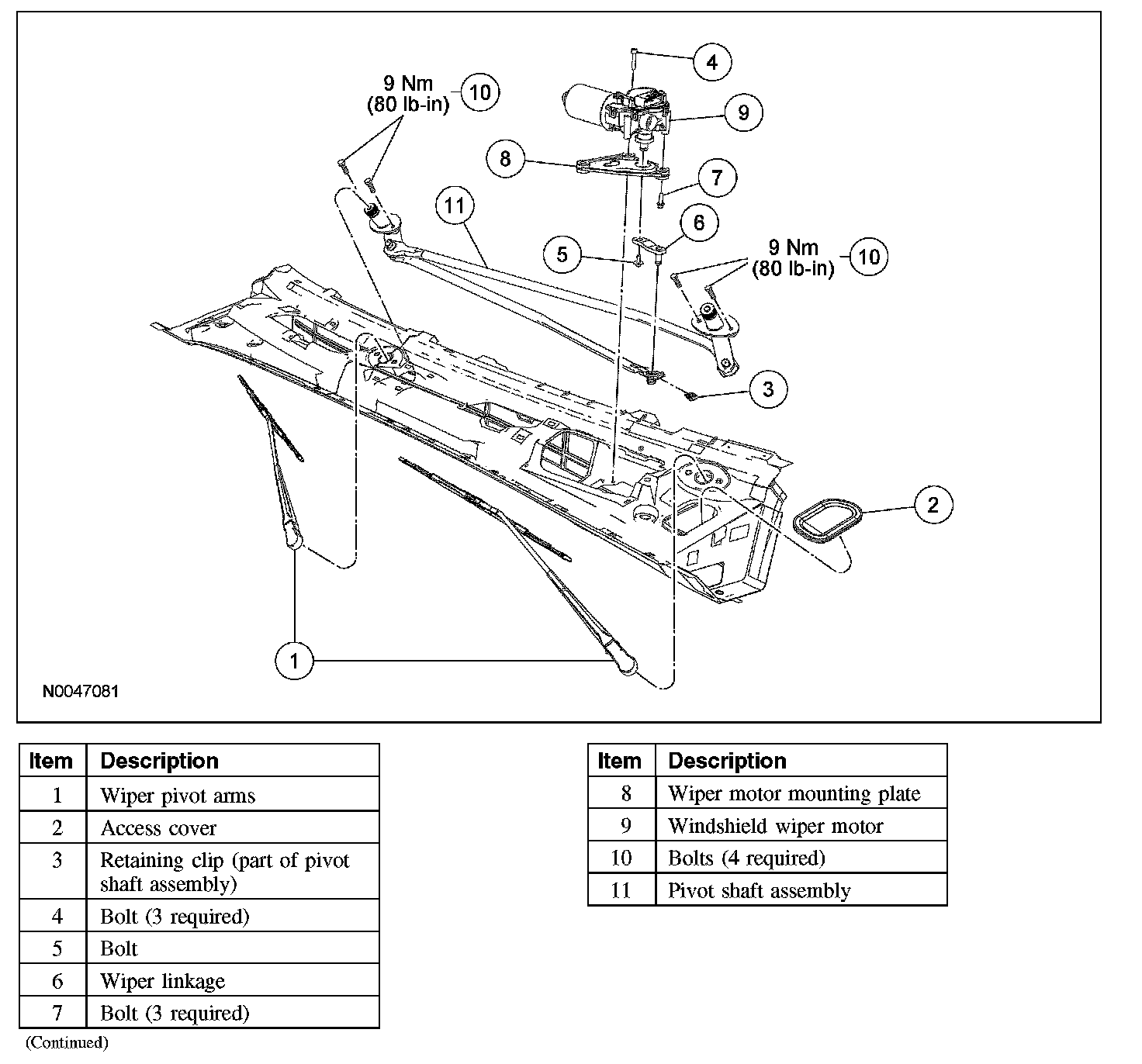

WIPER AND WASHER SYSTEM - EXPLODED VIEW
removal and installation
1.
For additional information, refer to the procedures.
