Body / Frame Mount Bushing: Service and Repair

BODY SUPPORT

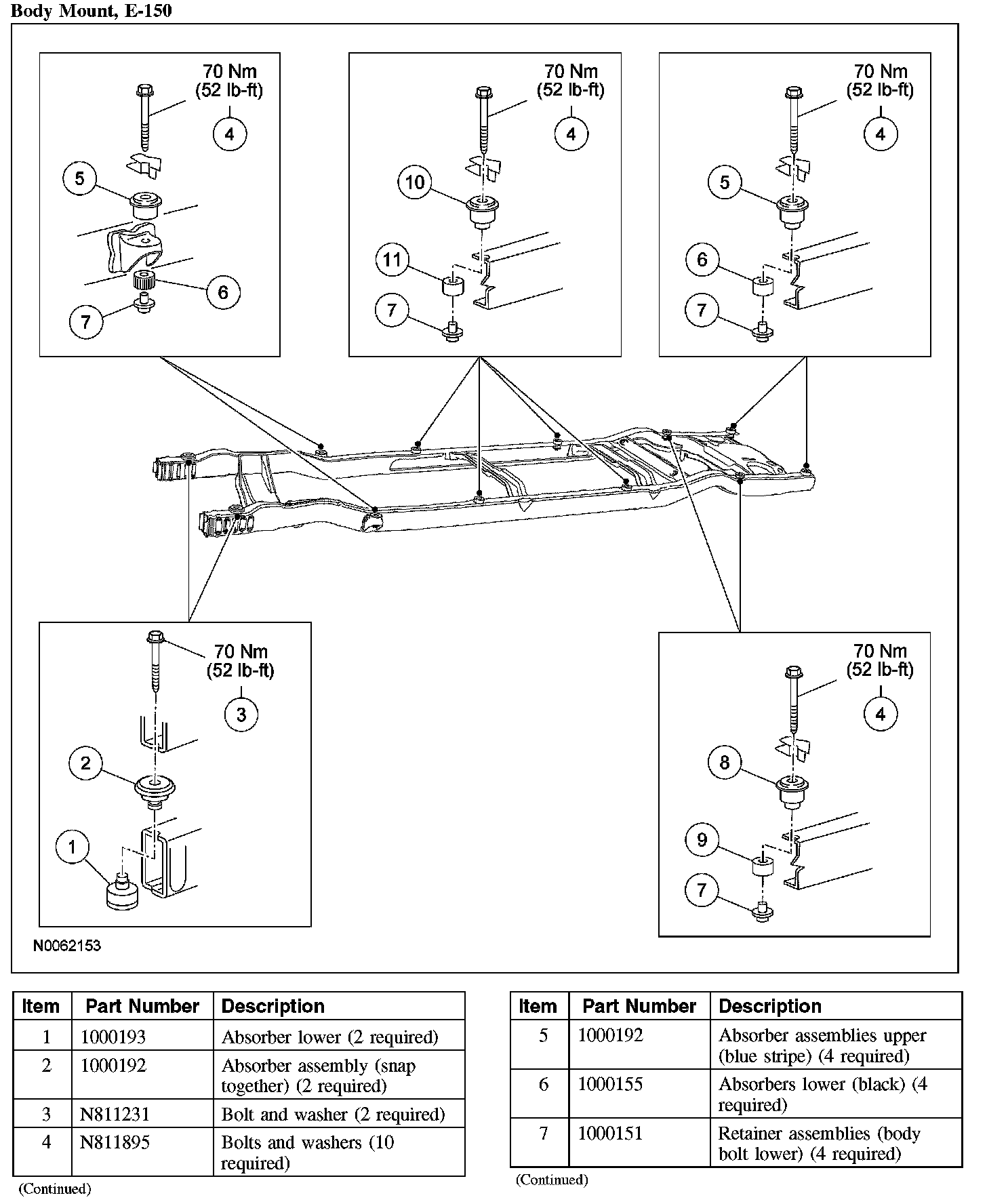

Body Mount, E-150 (Part 1):

Body Mount, E-150 (Part 2):

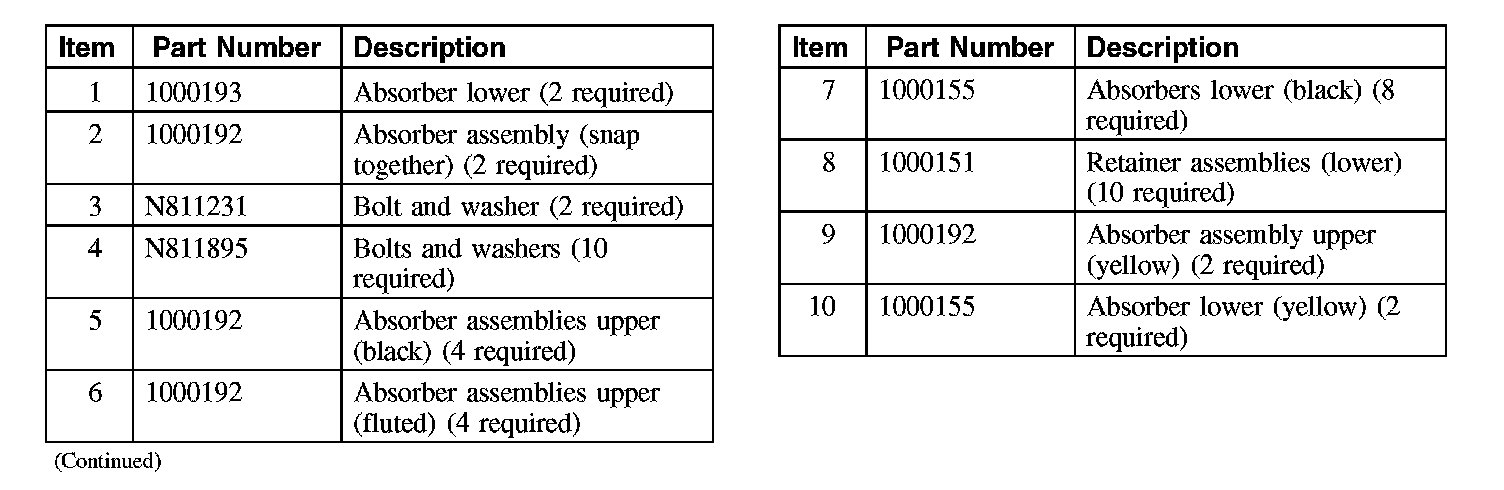

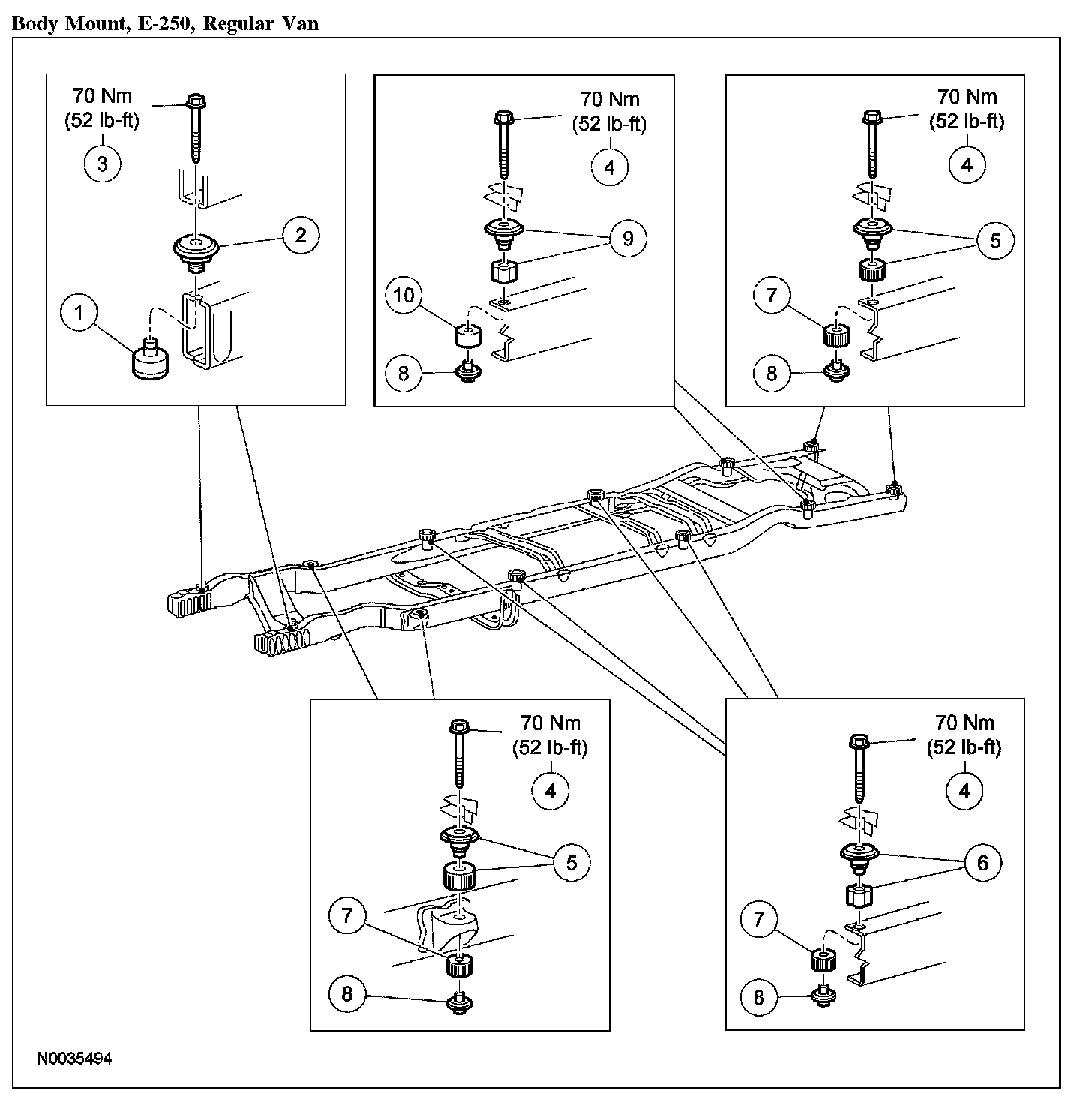

Body Mount, E-250, Regular Van (Part 1):

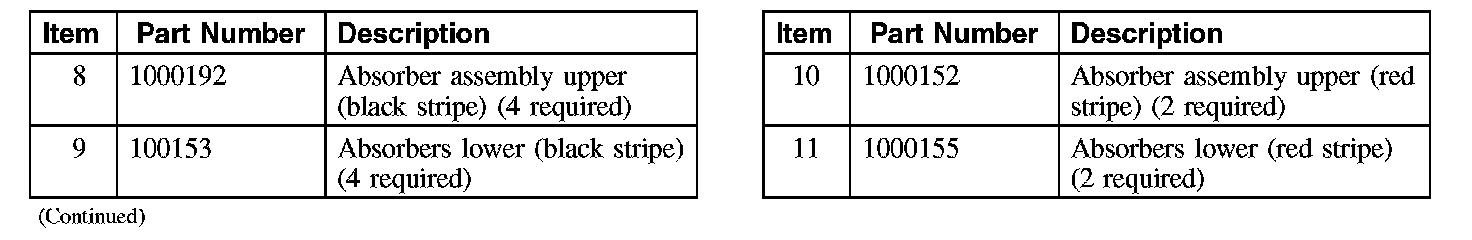

Body Mount, E-250, Regular Van (Part 2):

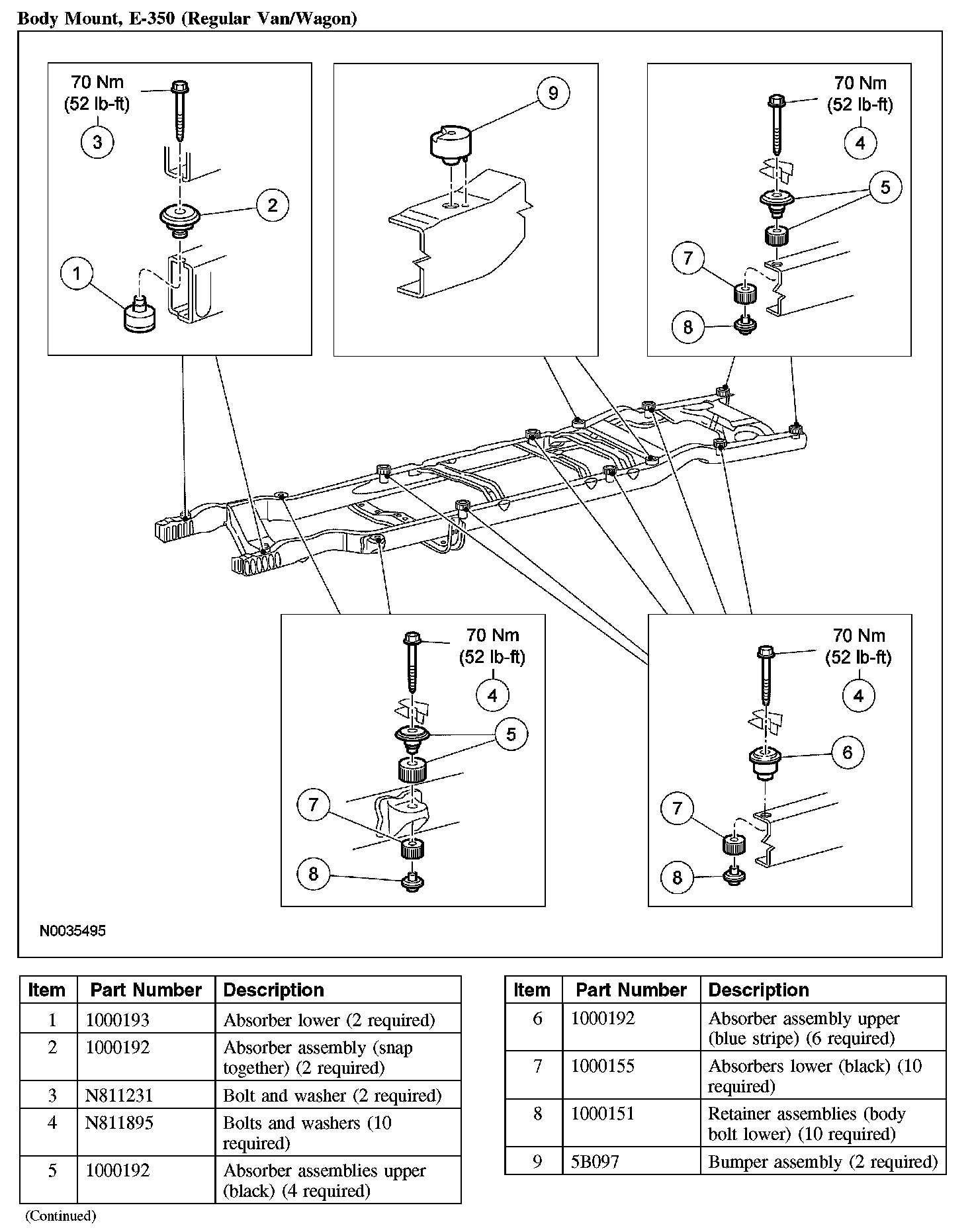

Body Mount,E-350(Regular Van/Wagon):

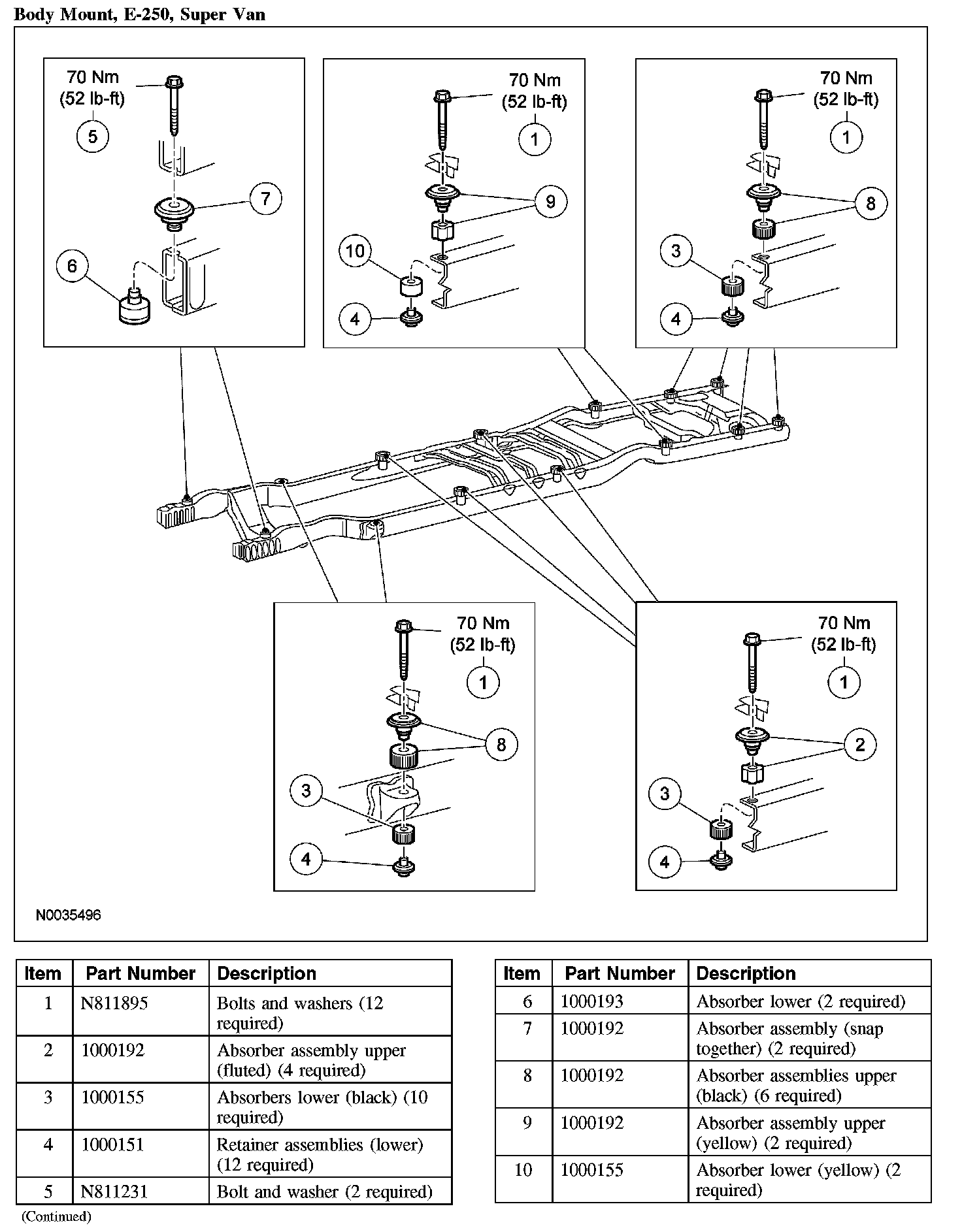

Body Mount,E-250, Super Van:

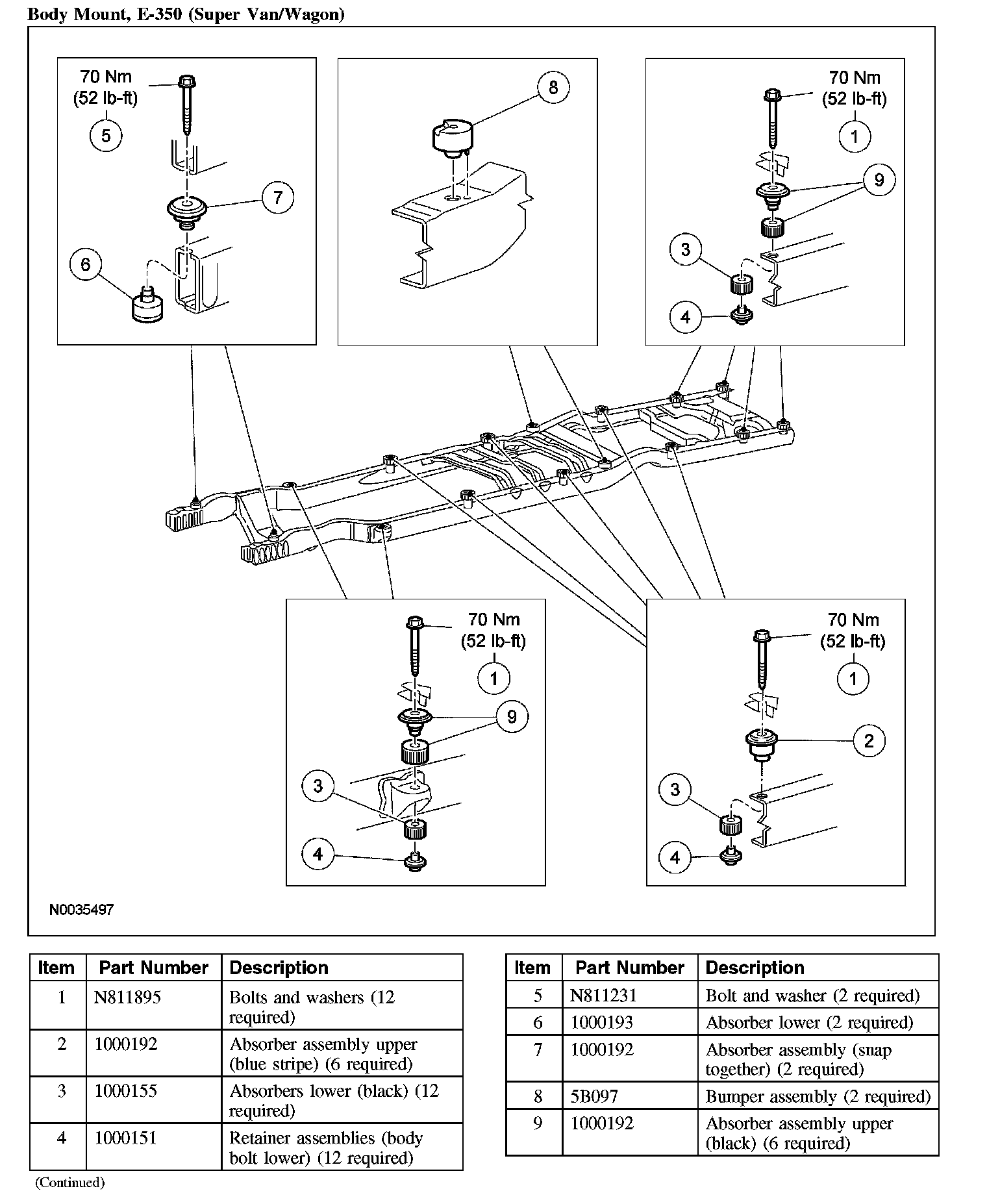

Body Mount ,E-350(Super Van/Wagon):

Removal And Installation
1. Refer to the preceding illustrations.
- For information on E350 and E450 Cutaway and Stripped Chassis models, refer to the Ford Light and Heavy Truck Body Builder's Layout Book.
