Camshaft Position Sensor: Service and Repair

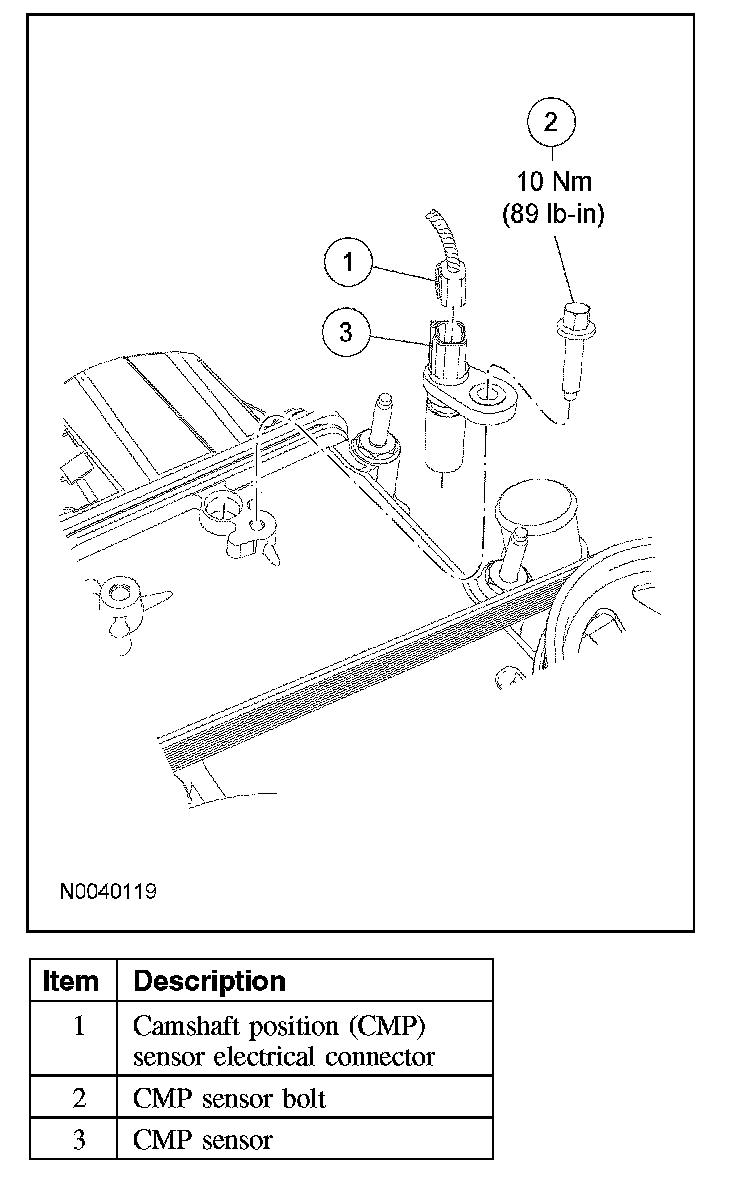

CAMSHAFT POSITION (CMP) SENSOR







Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the camshaft position (CMP) sensor electrical connector.
3. Remove the CMP bolt.
- To install, tighten to 10 Nm (89 lb-in).

4. Remove the CMP sensor.
5. To install, reverse the removal procedure.
