Air Flow Meter/Sensor: Service and Repair

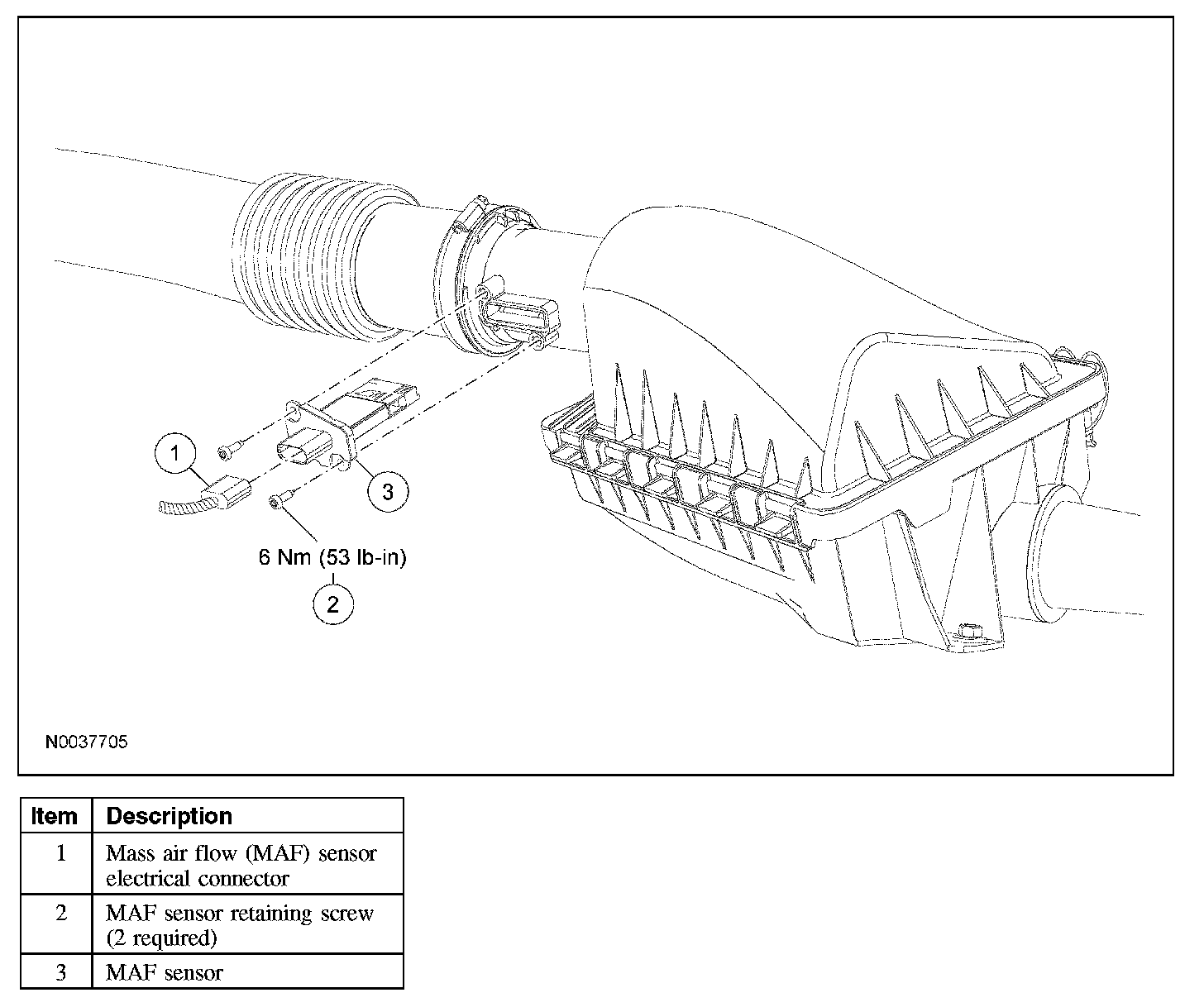

MASS AIR FLOW (MAF) SENSOR







Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the mass air flow (MAF) sensor electrical connector.
3. Remove the MAF sensor retaining screws.
- To install, tighten to 6 Nm (53 lb-in).

4. Remove the MAF sensor.
5. To install, reverse the removal procedure.
