Flex Plate

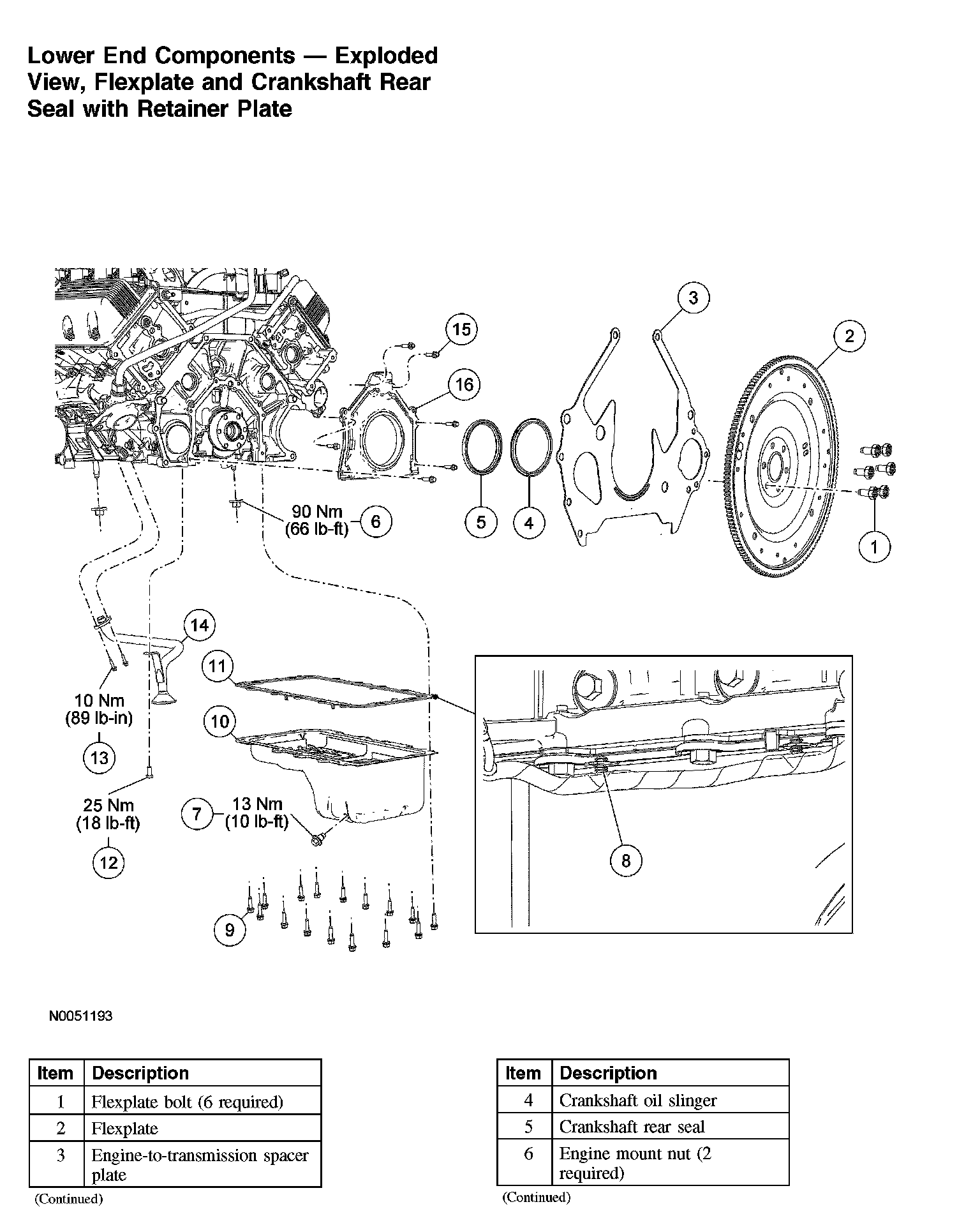

Lower End Components - Exploded View, Flexplate and Crankshaft Rear Seal with Retainer Plate:
