Home >> Ford >> 2007 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fire Suppression Module

Fire Suppression Module

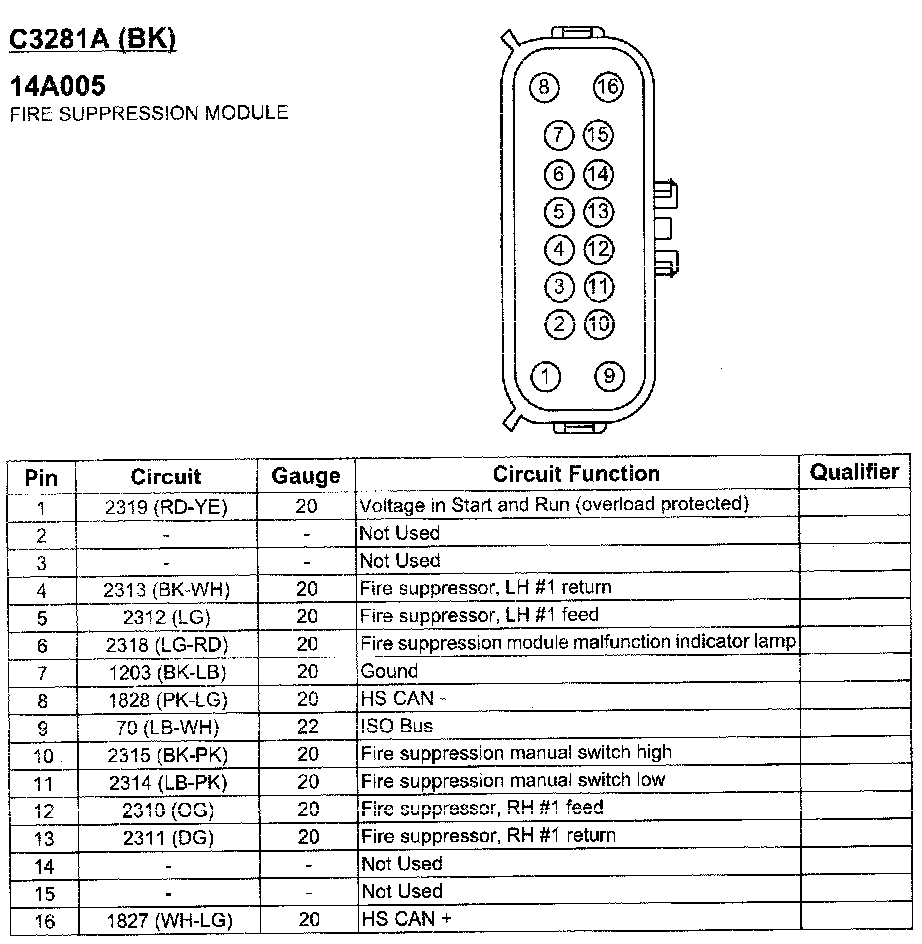

C3281A:



C3281B:
