Ford
>>
2006
>>
Ranger 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Timing Components
Timing Components

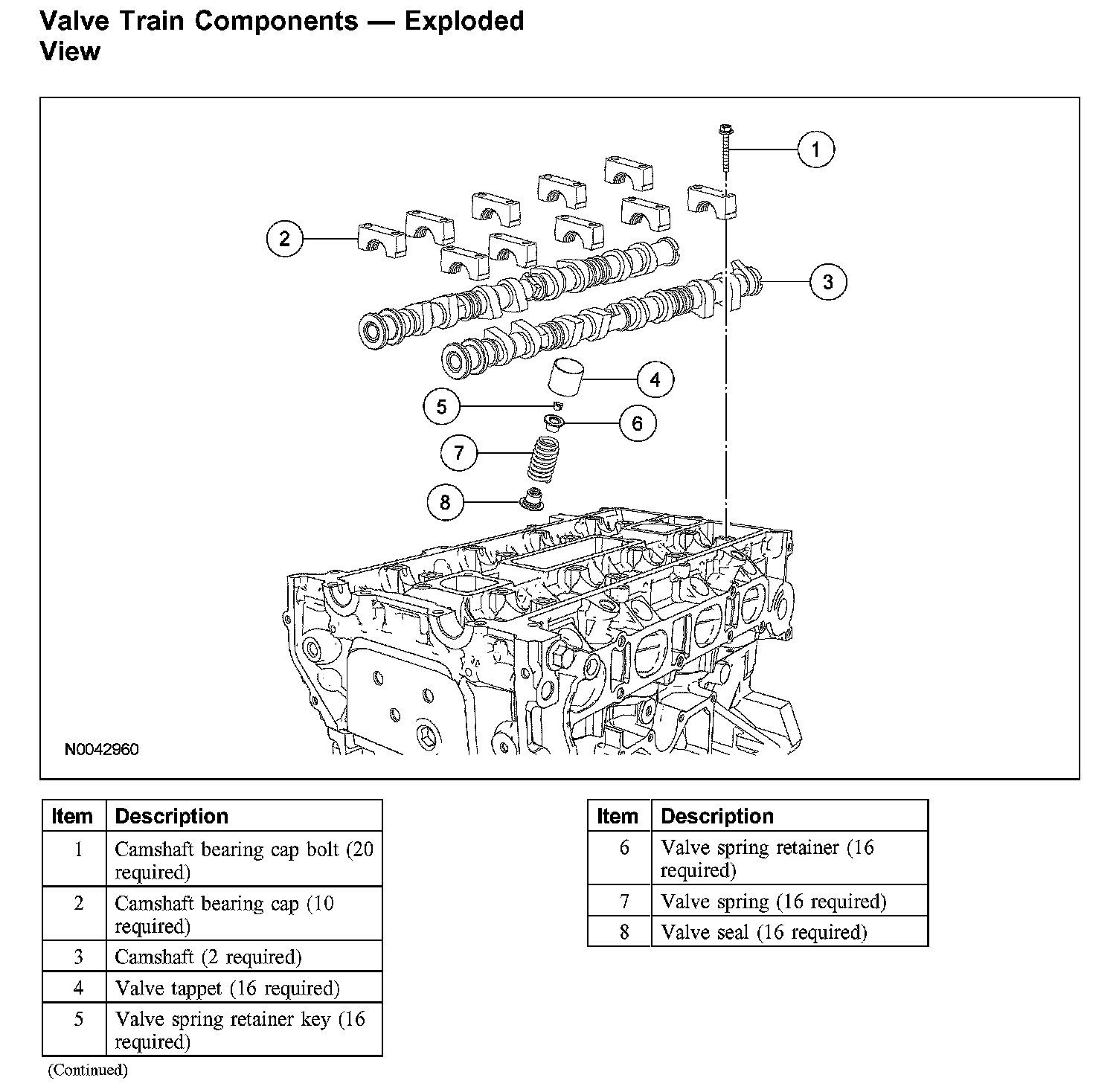

Valve Train Components - Exploded View
Valve Train Components - Exploded View:
