Exhaust System

Exhaust System - Exploded View

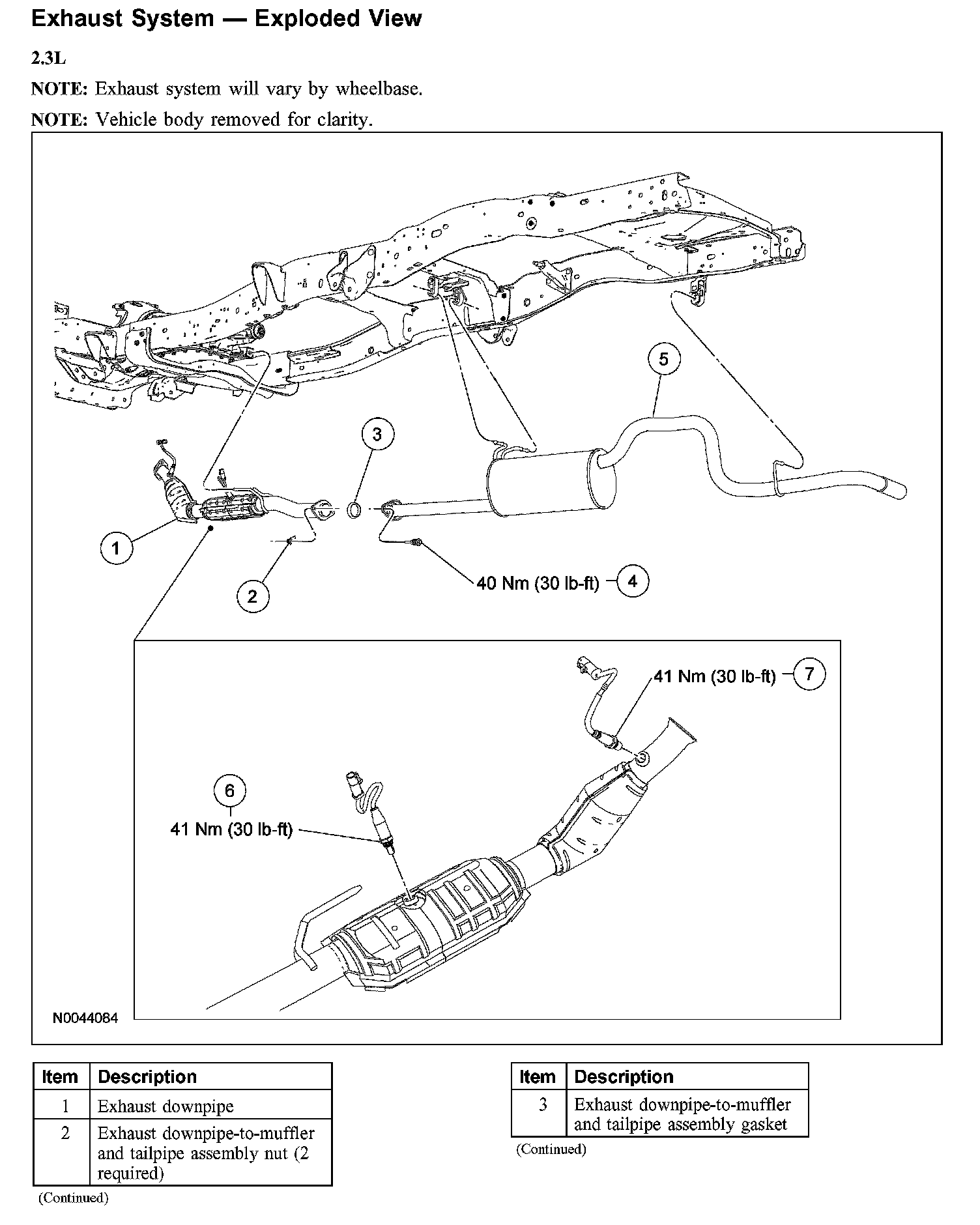

Exhaust System - Exploded View: 2.3L:




Exhaust System - Exploded View: 2.3L:

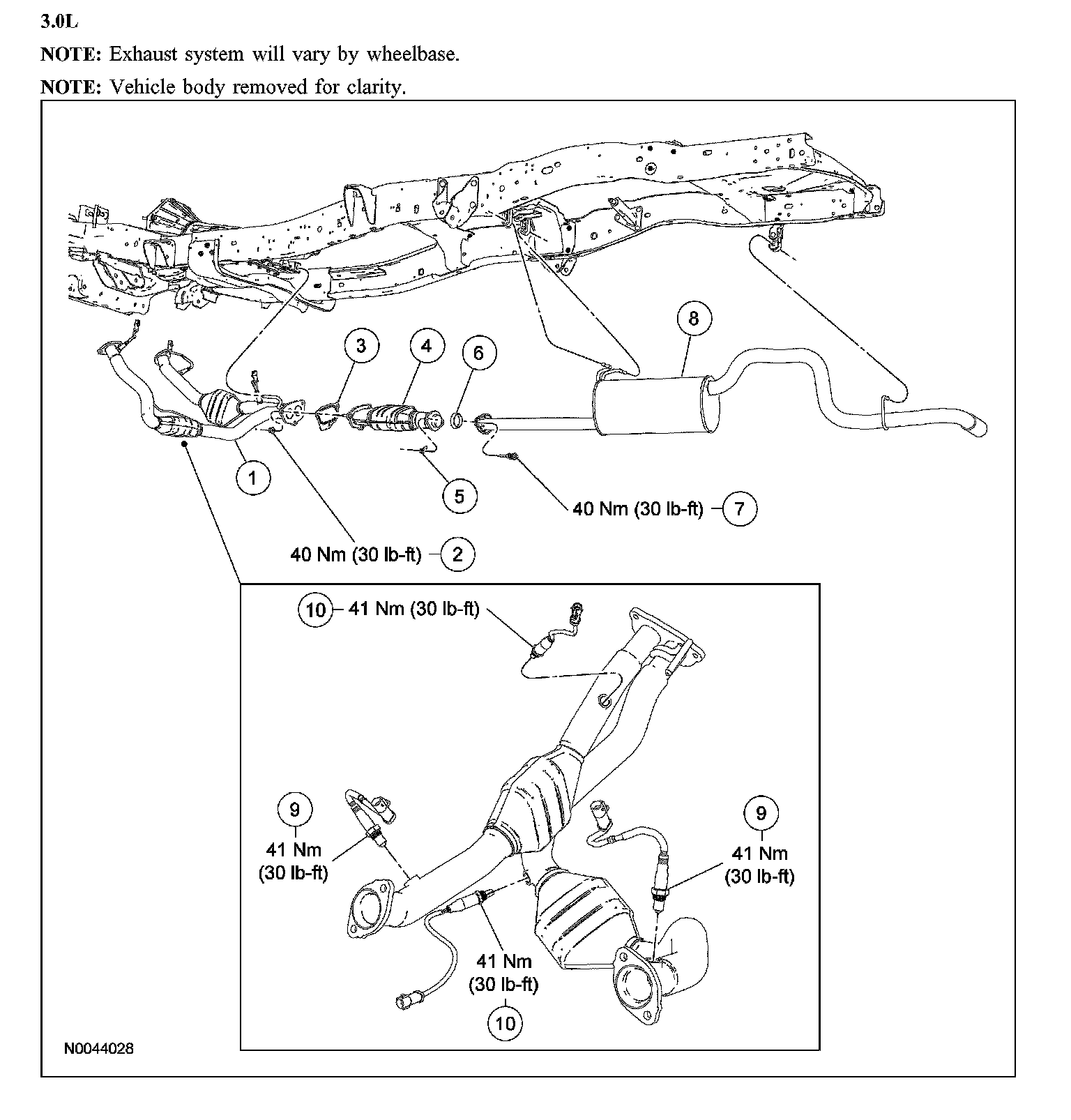

Exhaust System - Exploded View: 3.0L:




Exhaust System - Exploded View: 3.0L:

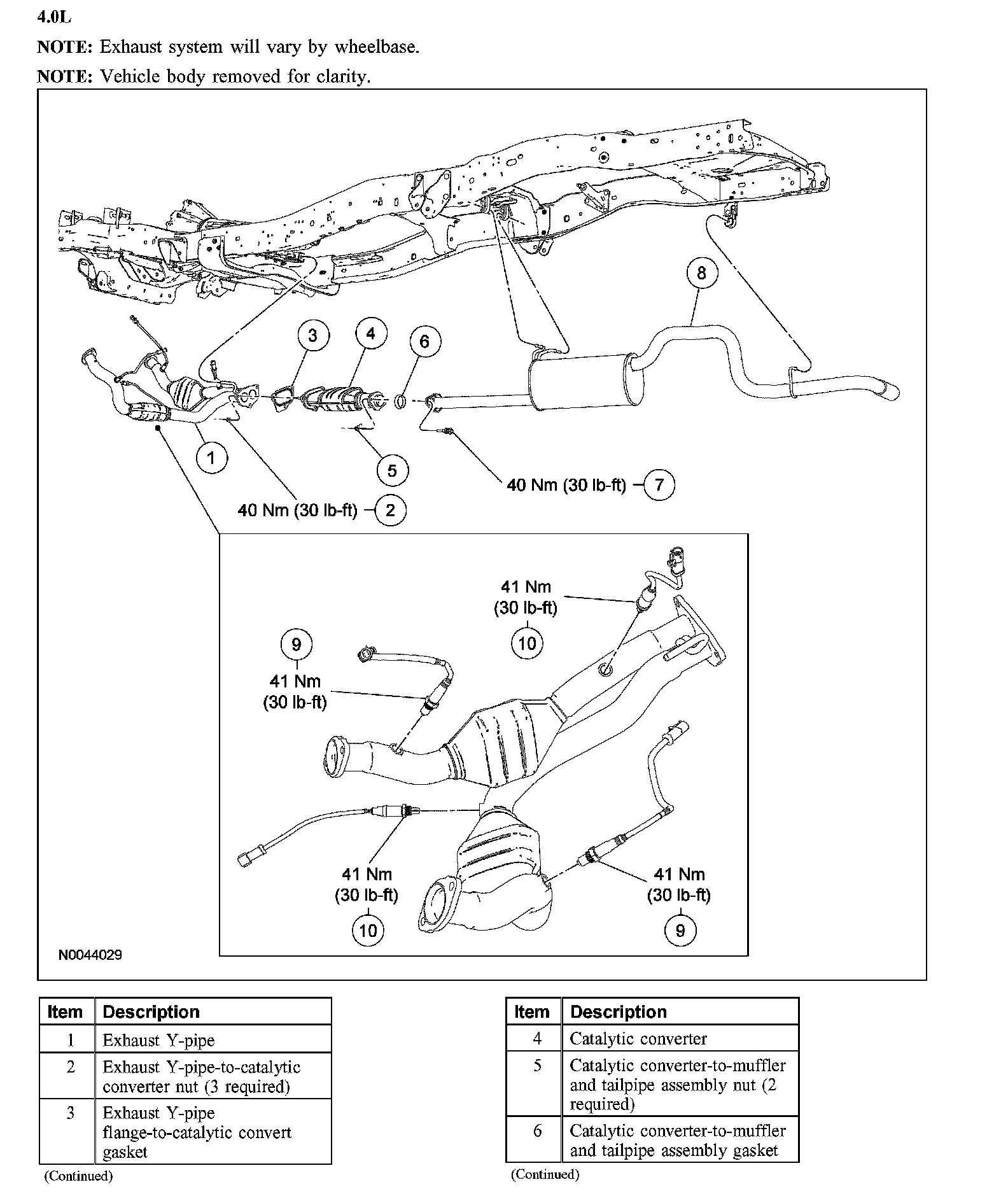

Exhaust System - Exploded View: 4.0L:




Exhaust System - Exploded View: 4.0L:
