Engine Lubrication

Engine Lubrication Components - Exploded View

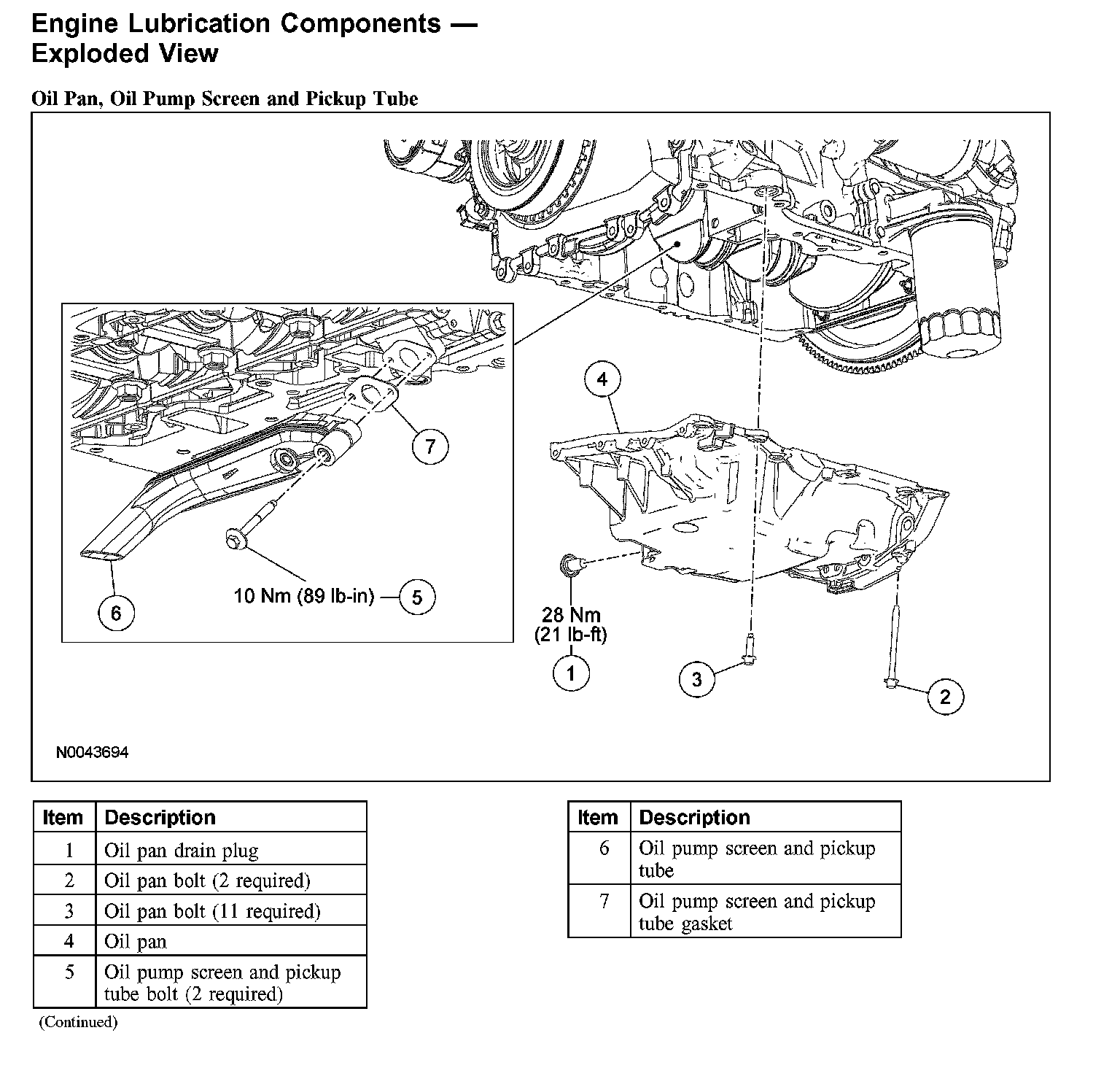

Engine Lubrication Components - Exploded View: Oil Pan, Oil Pump Screen and Pickup Tube:

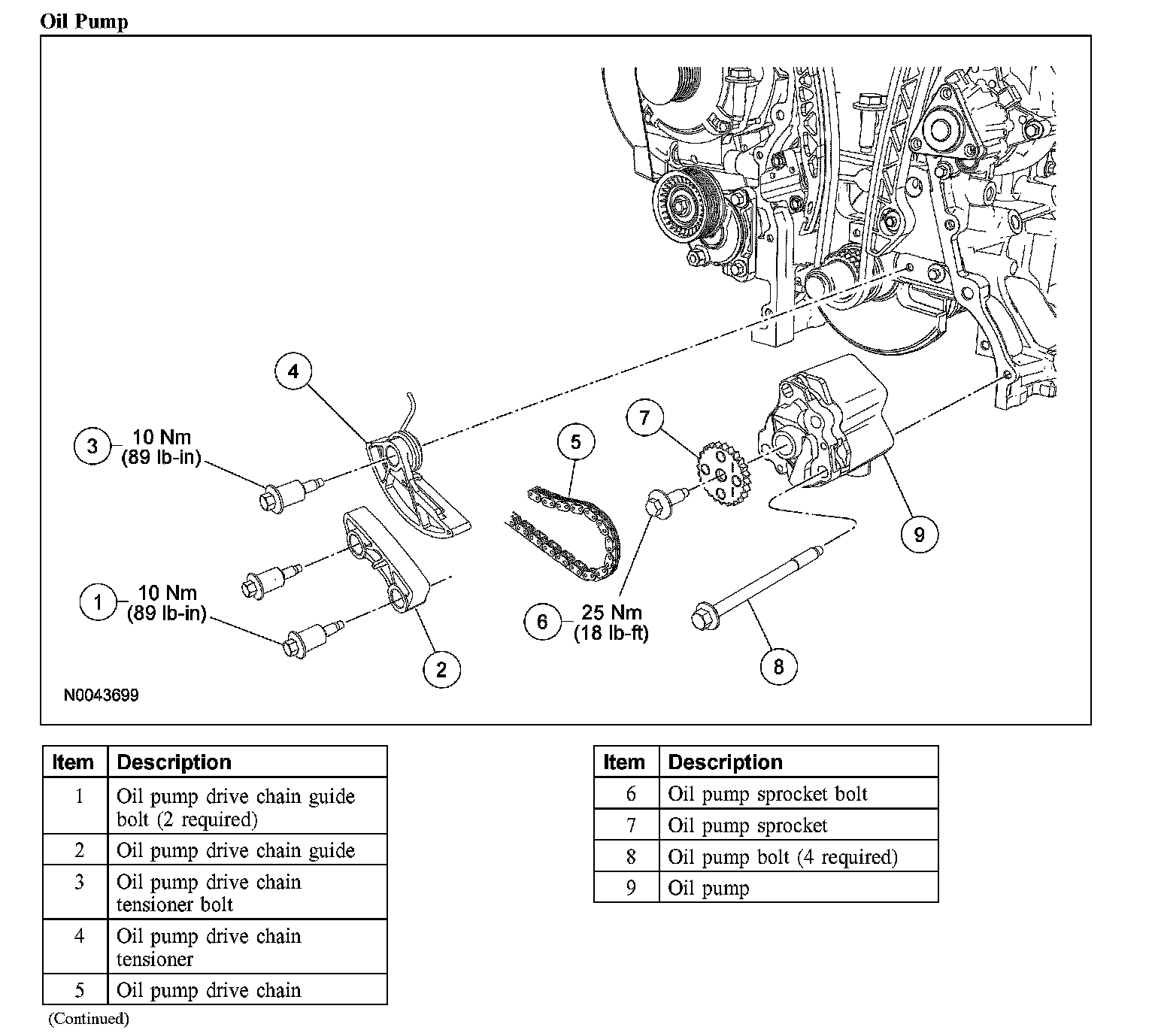

Engine Lubrication Components - Exploded View: Oil Pump:
