Cooling System

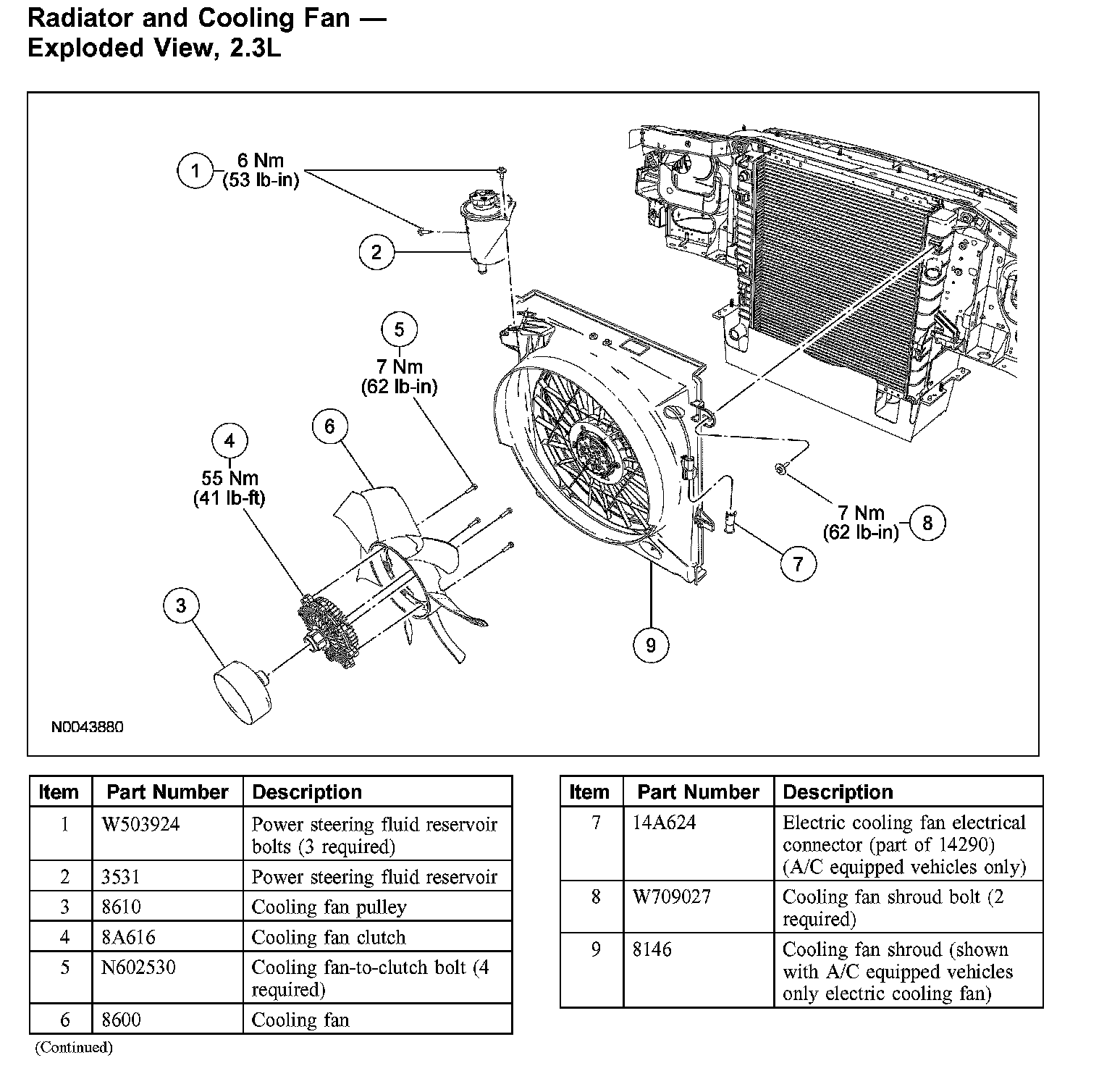

Radiator and Cooling Fan - Exploded View, 2.3L

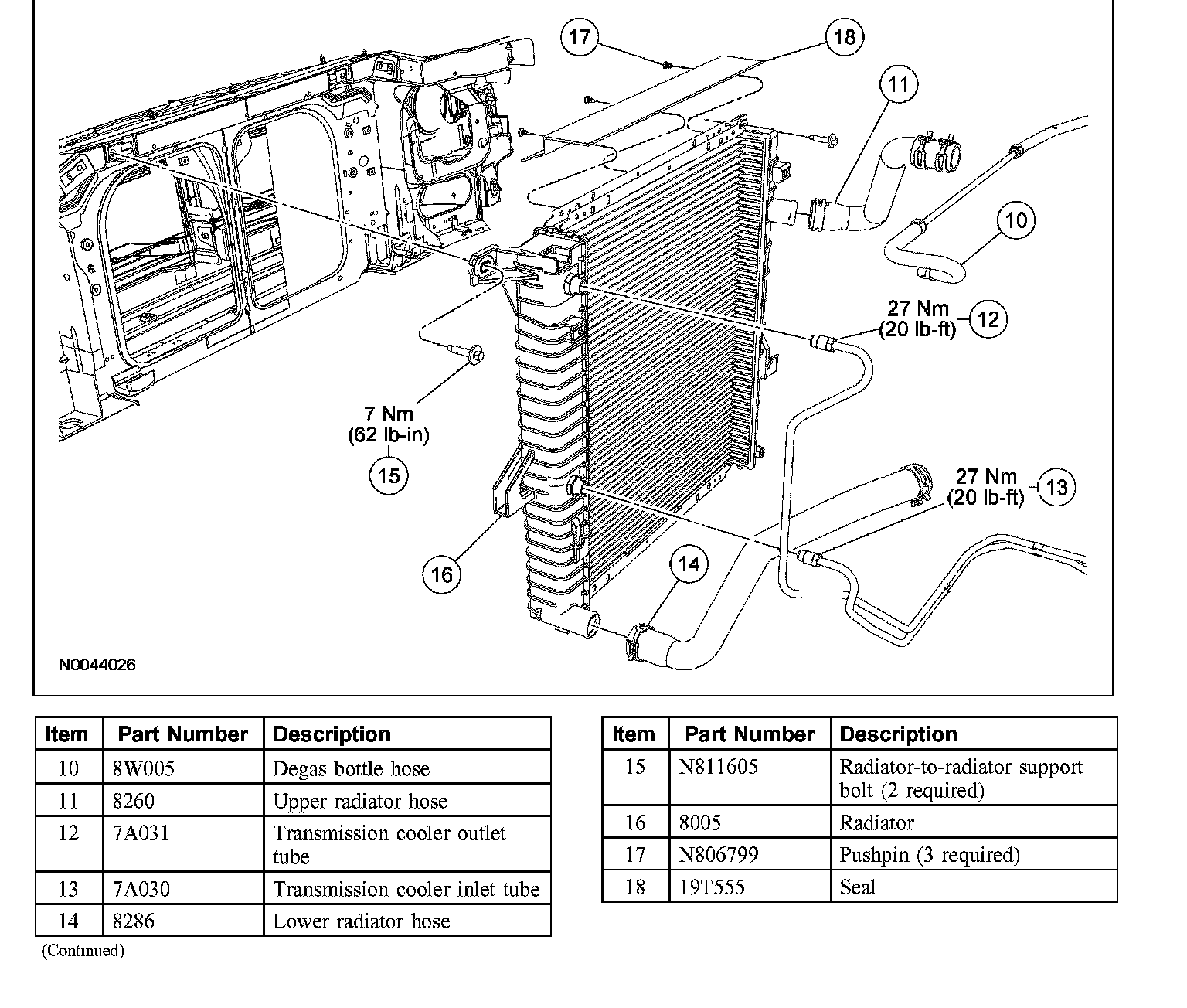

Radiator and Cooling Fan - Exploded View, 2.3L:

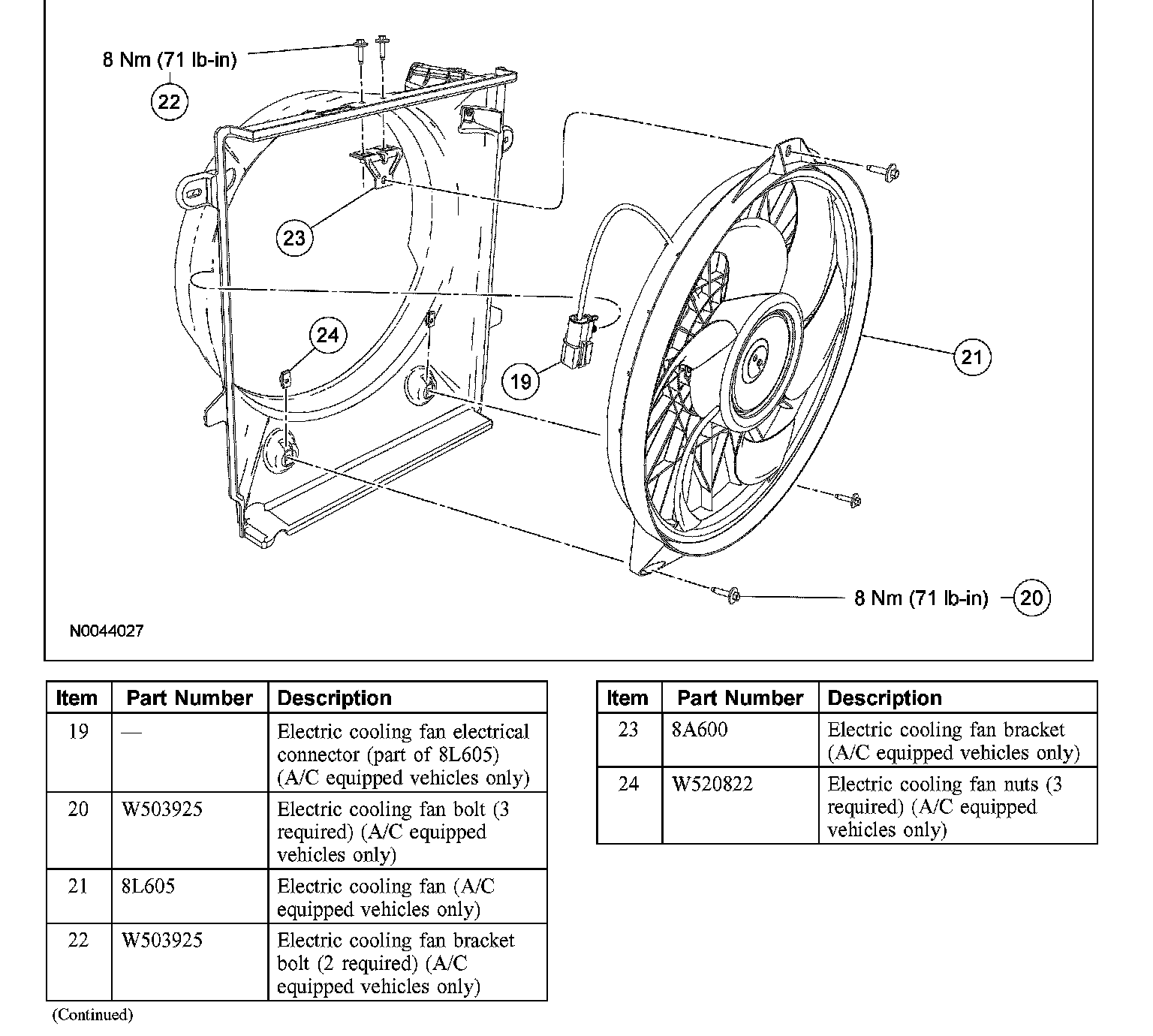

Radiator and Cooling Fan - Exploded View, 2.3L:




Radiator and Cooling Fan - Exploded View, 2.3L:
