Ranger 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
Air Bag Control Module

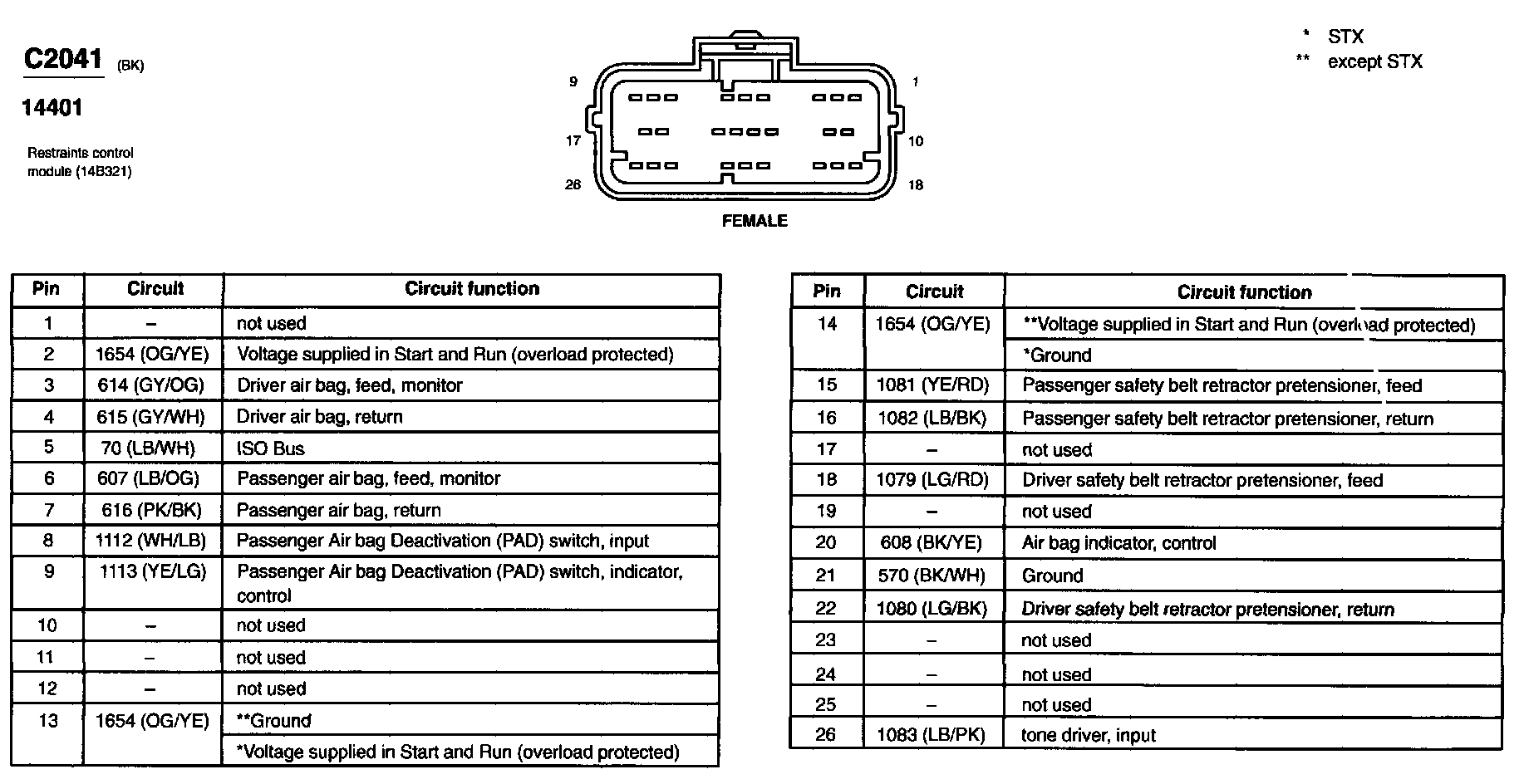

C2041:
