Steering Column: Material

MATERIAL SPECIFICATIONS

Item Specification
Premium Long-Life Grease XG-l-C or XG-l-K (Canada CXG-l-C) ESA-M1C75-B
Multi-Purpose Grease XG-4 and/or XL-5 ESB-M1C93-B

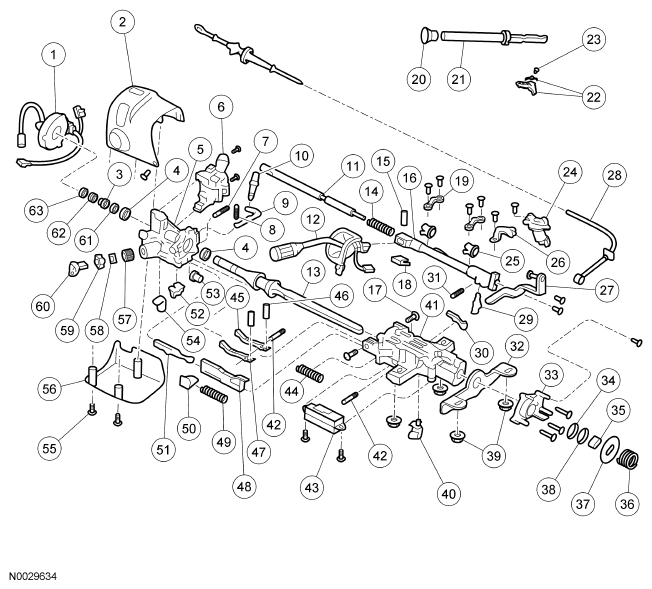

Fig 1: Exploded View Of Steering Column
G04611012Courtesy of FORD MOTOR CO.

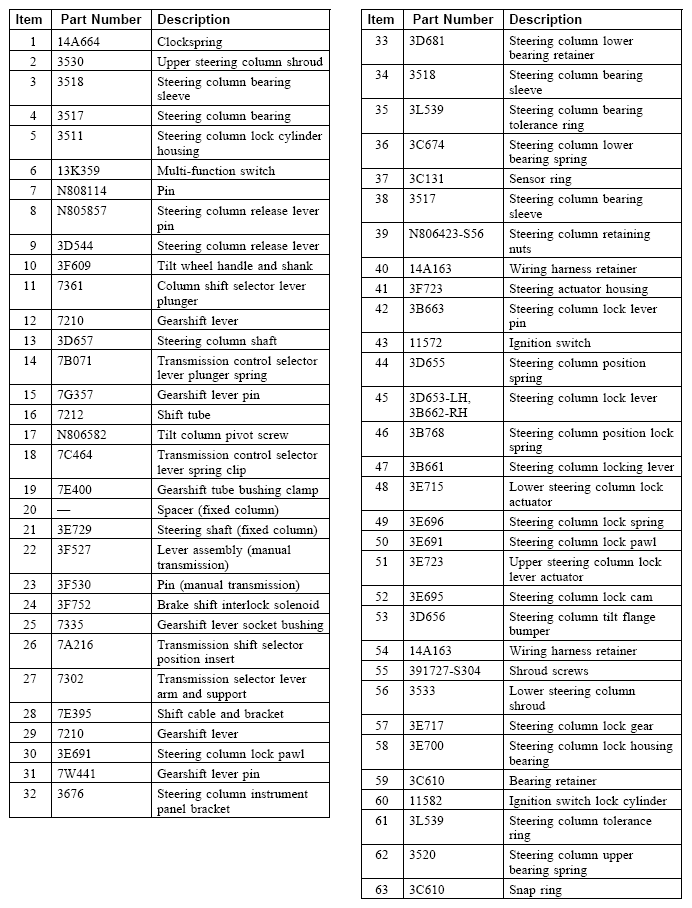

Fig 2: Steering Column Components Description Chart
G04611013Courtesy of FORD MOTOR CO.
