Timing Cover

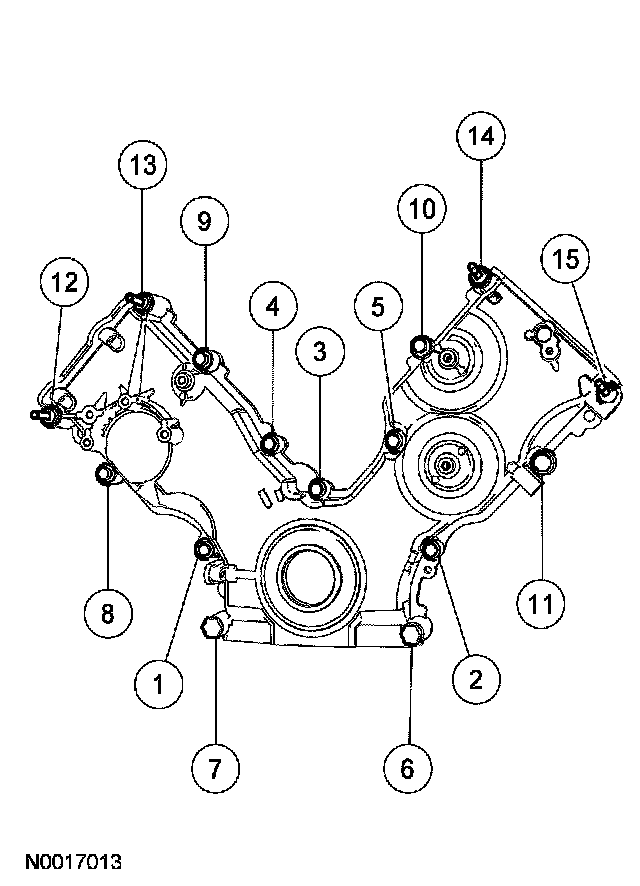

Engine front cover fasteners 25 Nm (18 ft. lbs.).





Oil pan to front cover bolts
First pass 20 Nm (15 ft. lbs.)
Final pass tighten 60°
