Exhaust System
Exhaust System
Exhaust System
- Exploded View

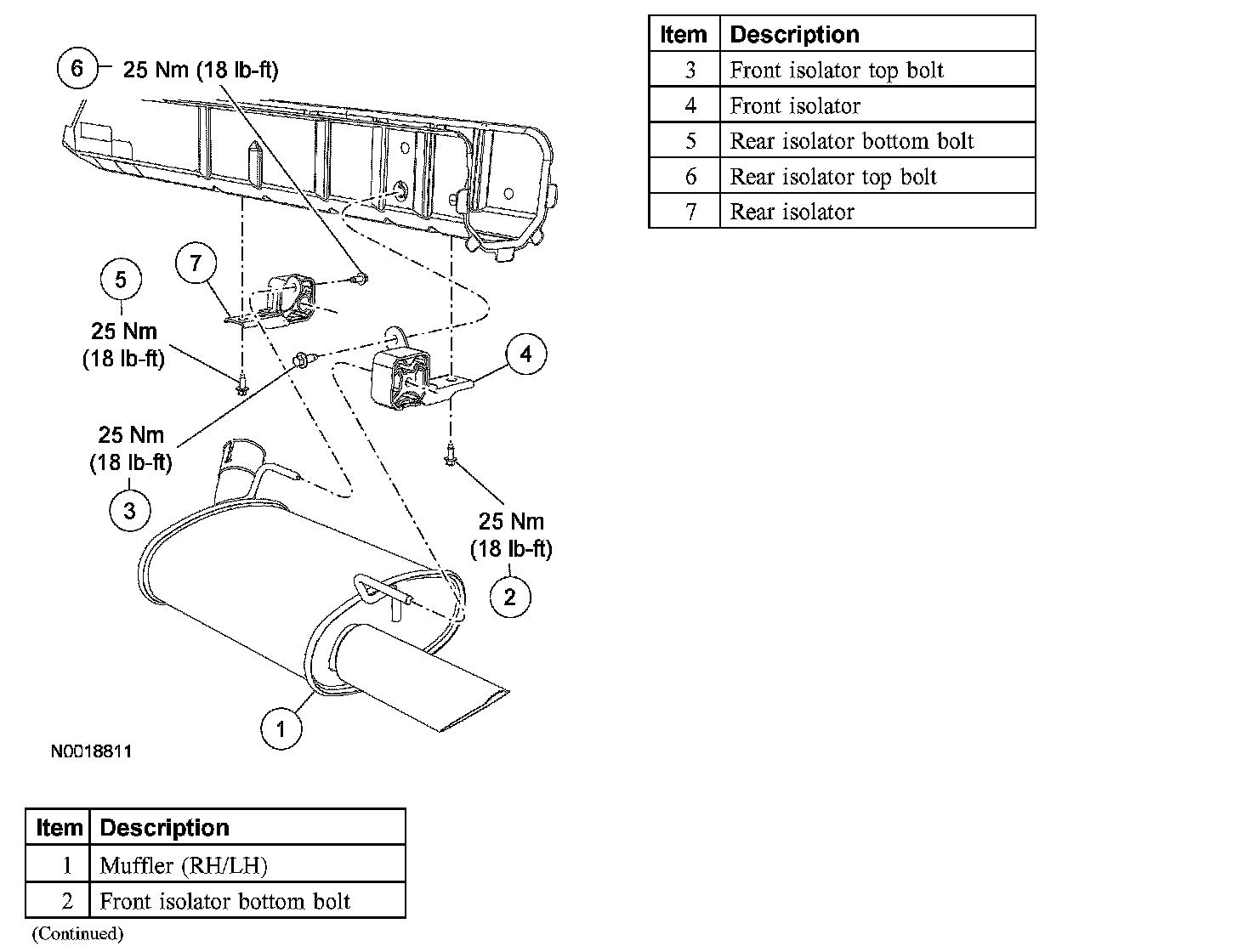

Exhaust System - Exploded View, 4.6L:

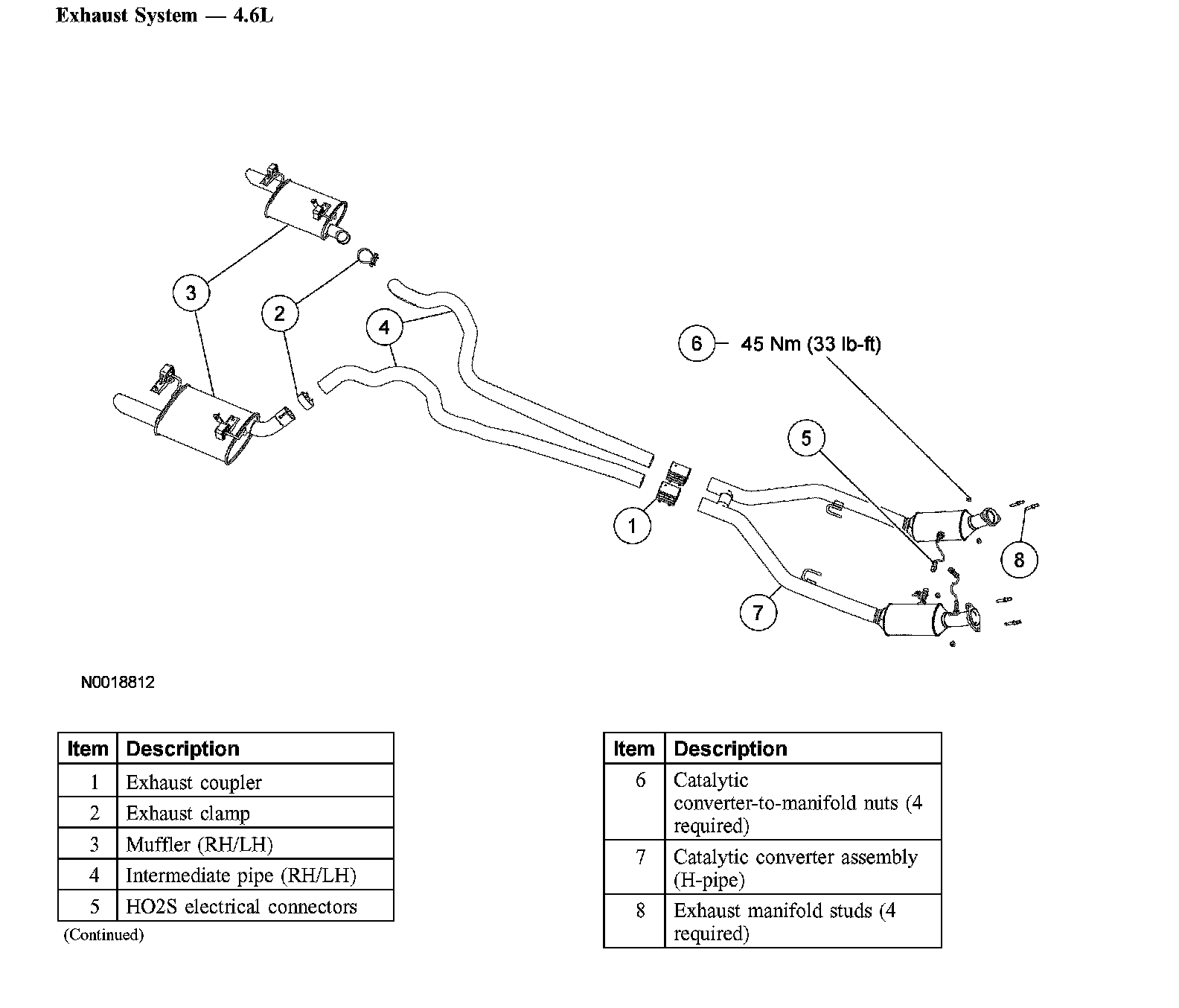

Exhaust System - Exploded View, 4.6L:
