Home
>>
Ford
>>
2006
>>
Mustang V8-4.6L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Disc Brake System
>>
Front
Front
Disc Brake System
- Exploded View

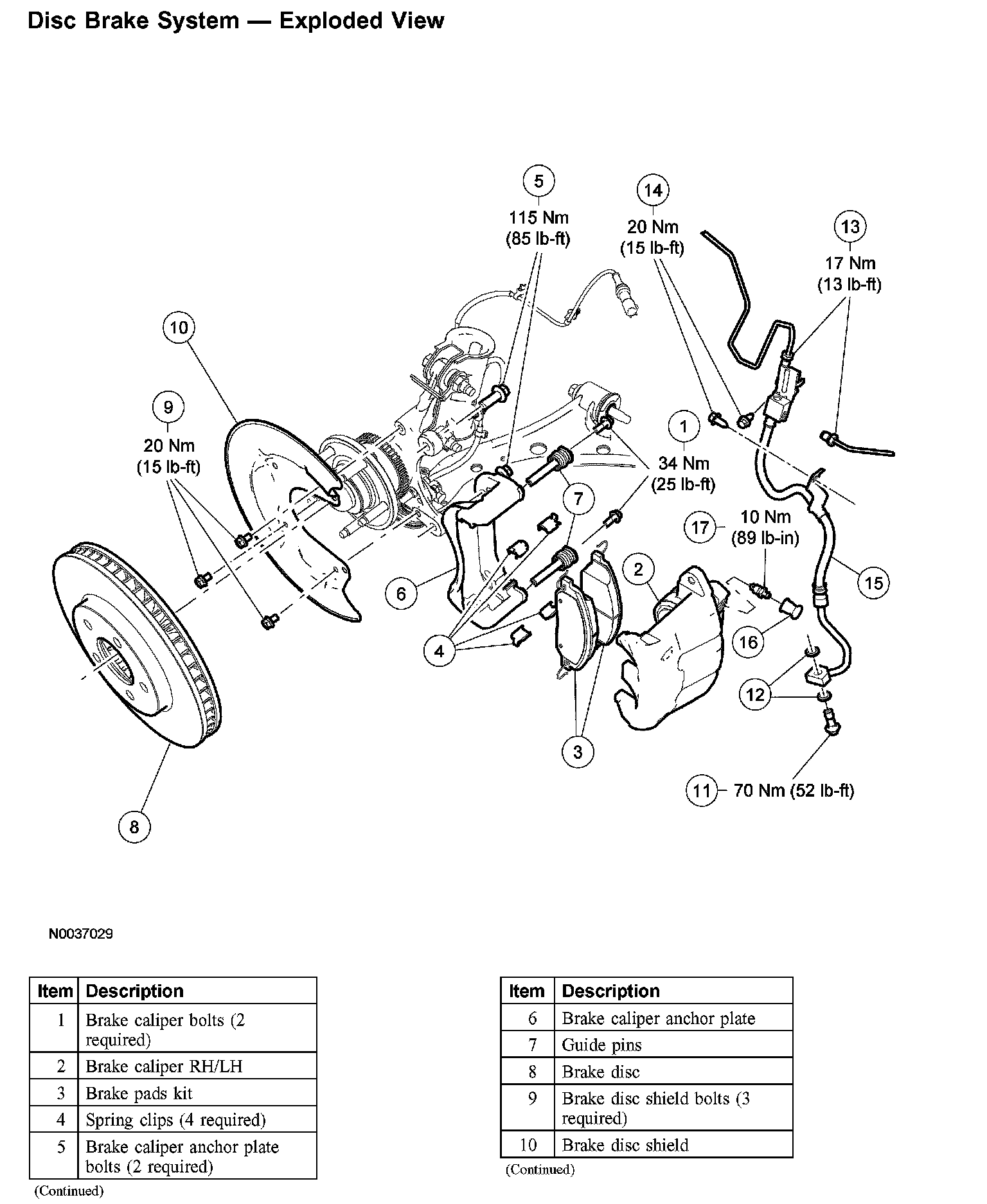

Disc Brake System - Exploded View:
Disc Brake System - Exploded View:
