Exhaust System
Exhaust System
Exhaust System
- Exploded View

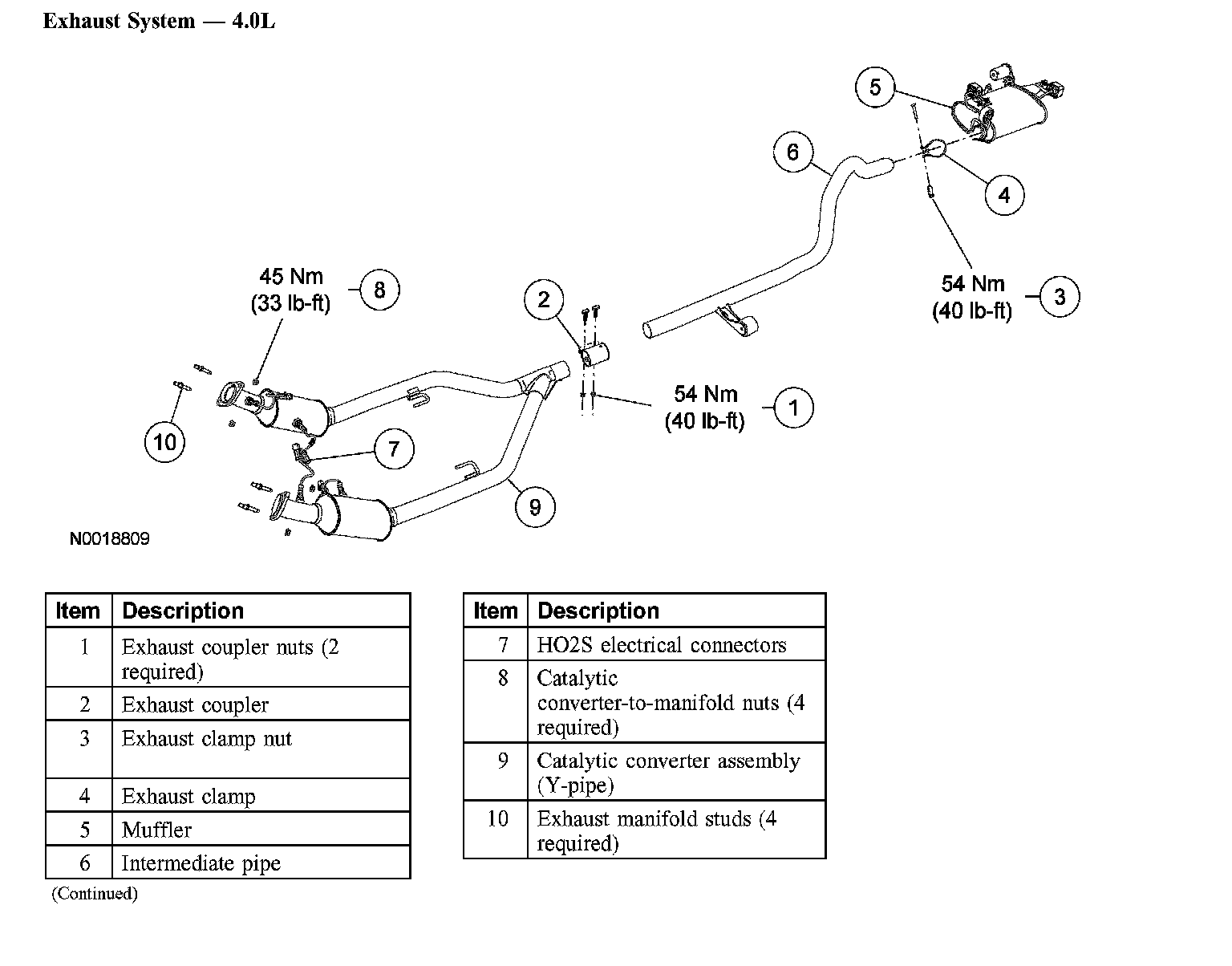

Exhaust System - Exploded View, 4.0L:

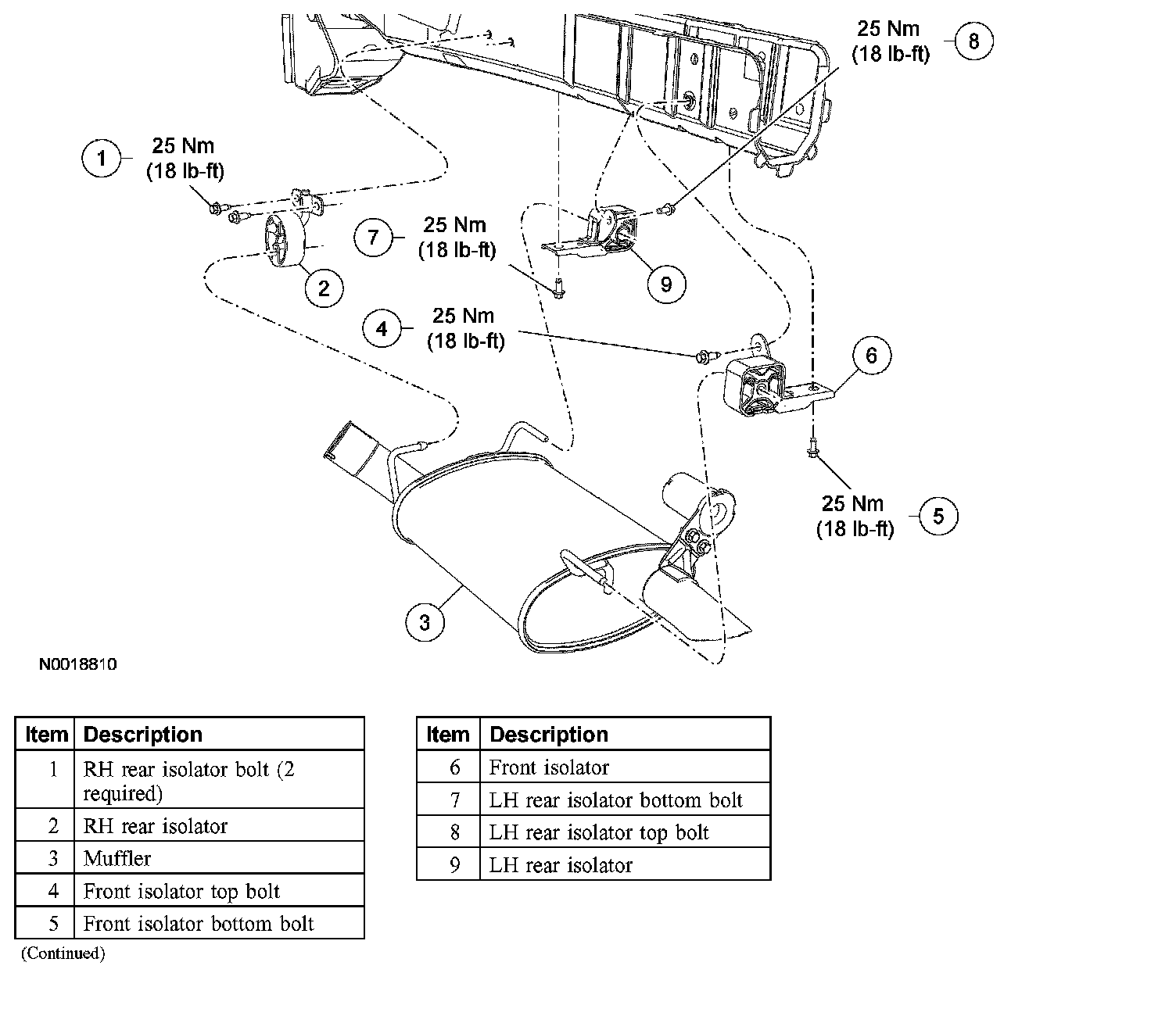

Exhaust System - Exploded View, 4.0L:
