Component Location Index
PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

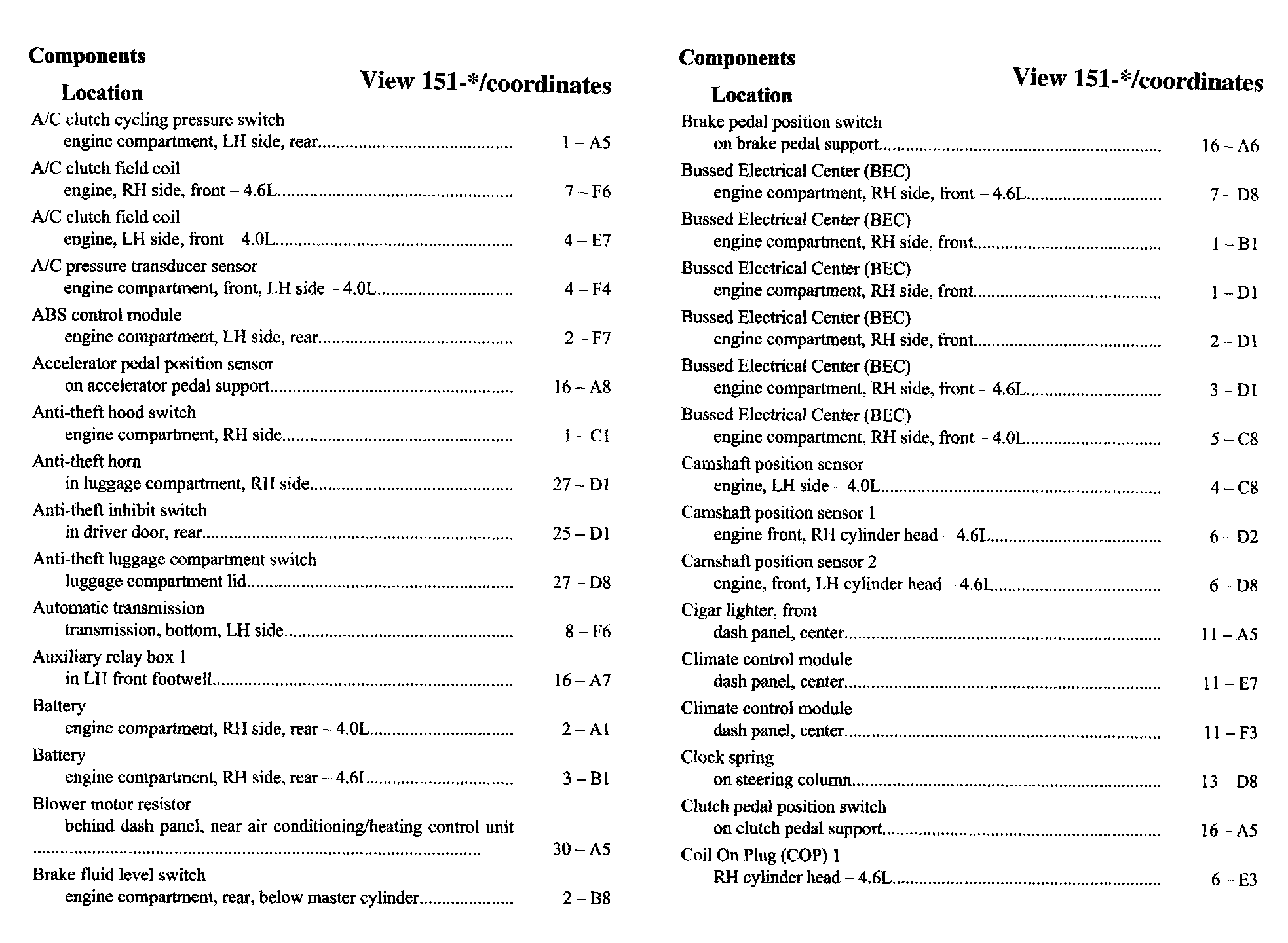

A/C-Co:

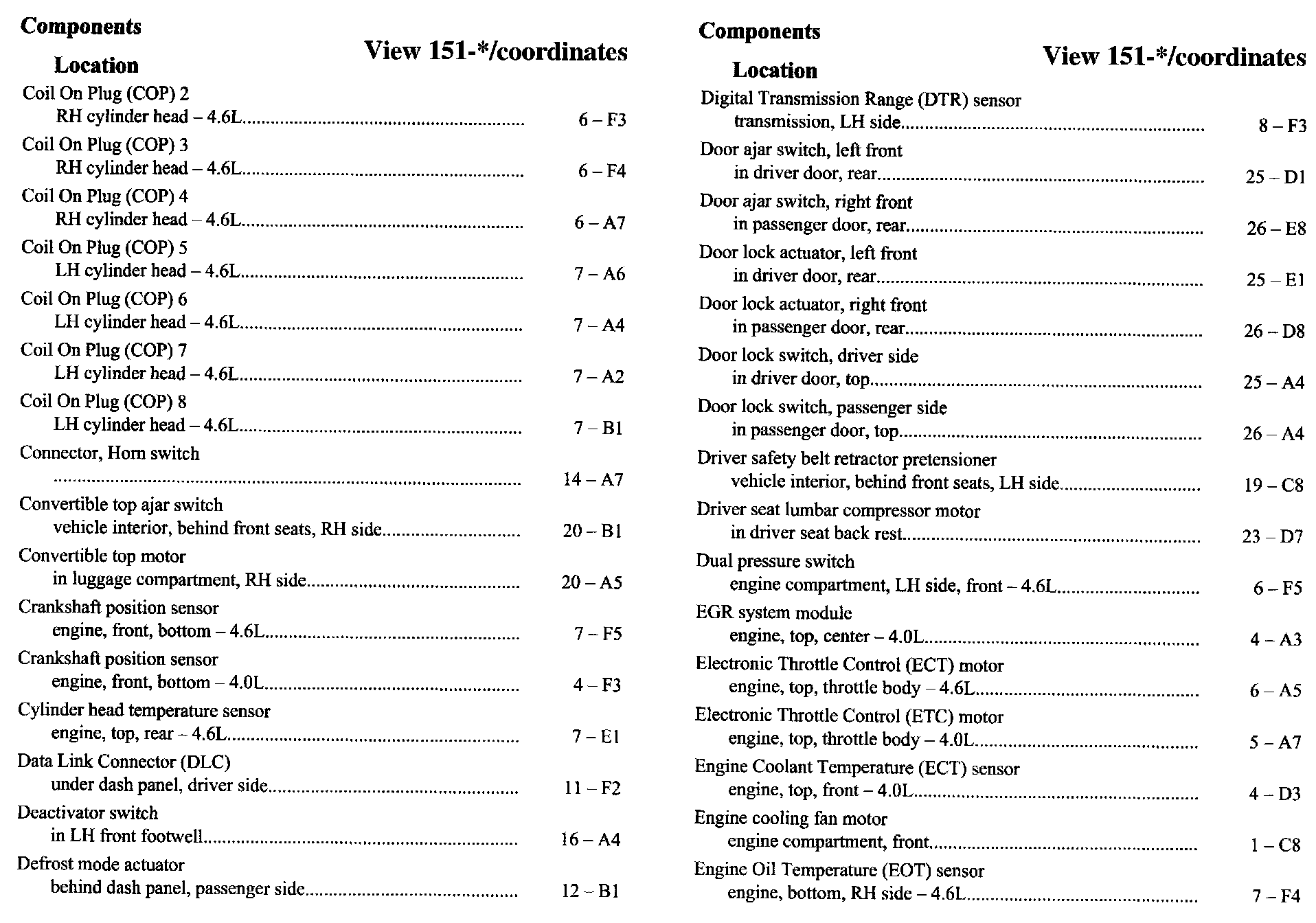

Co-En:

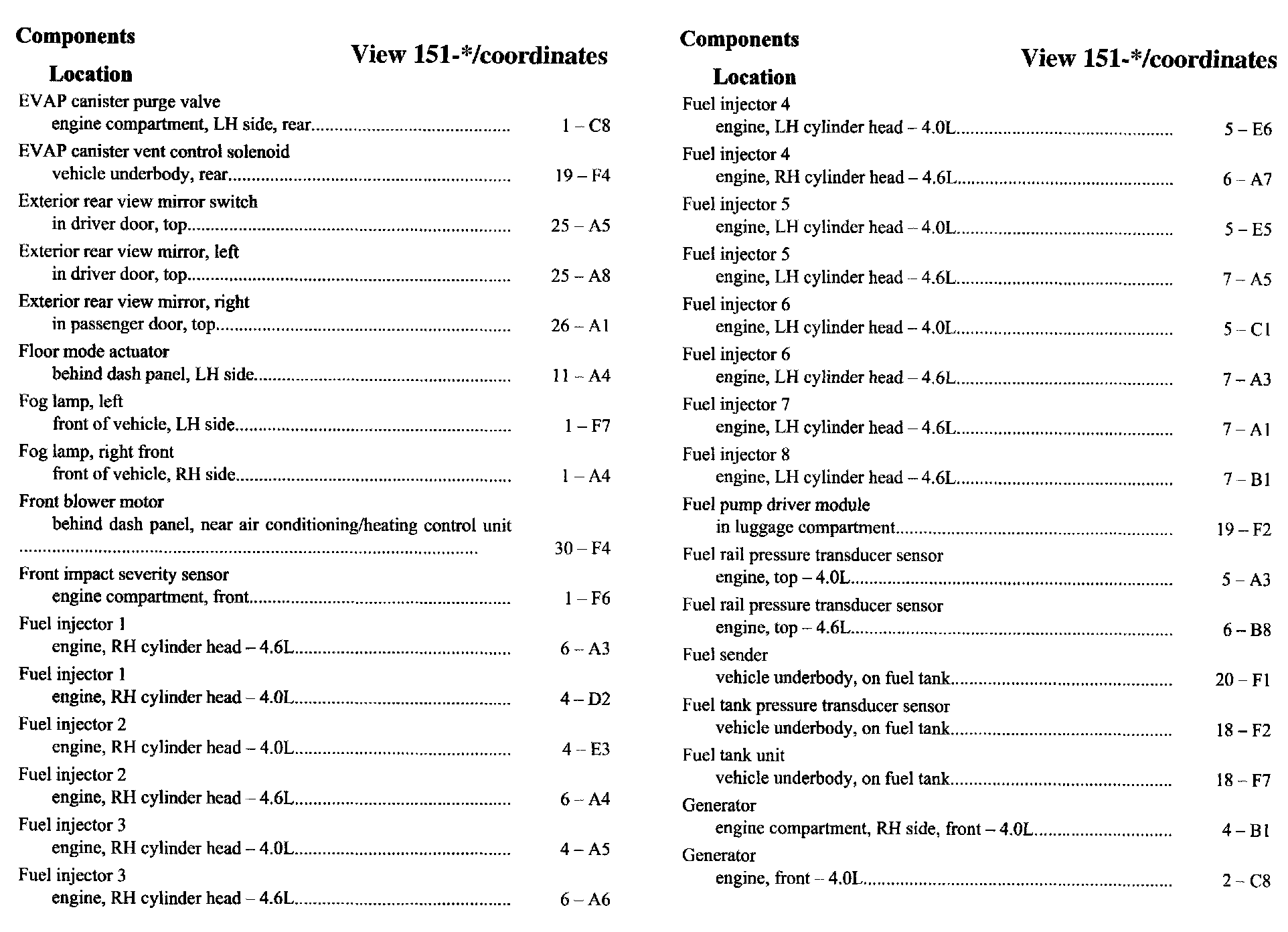

EVAP-Ge:

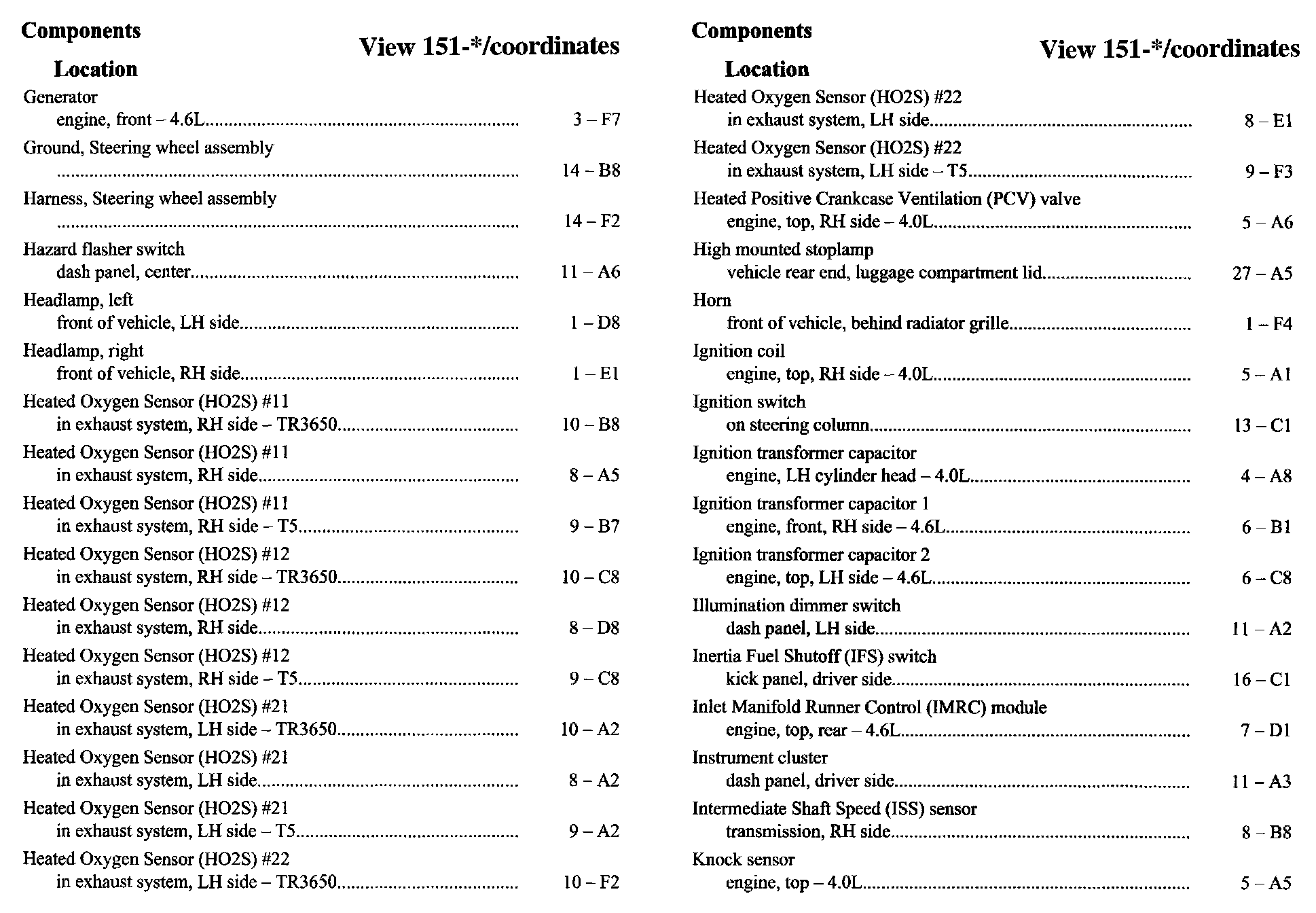

Ge-Kn:

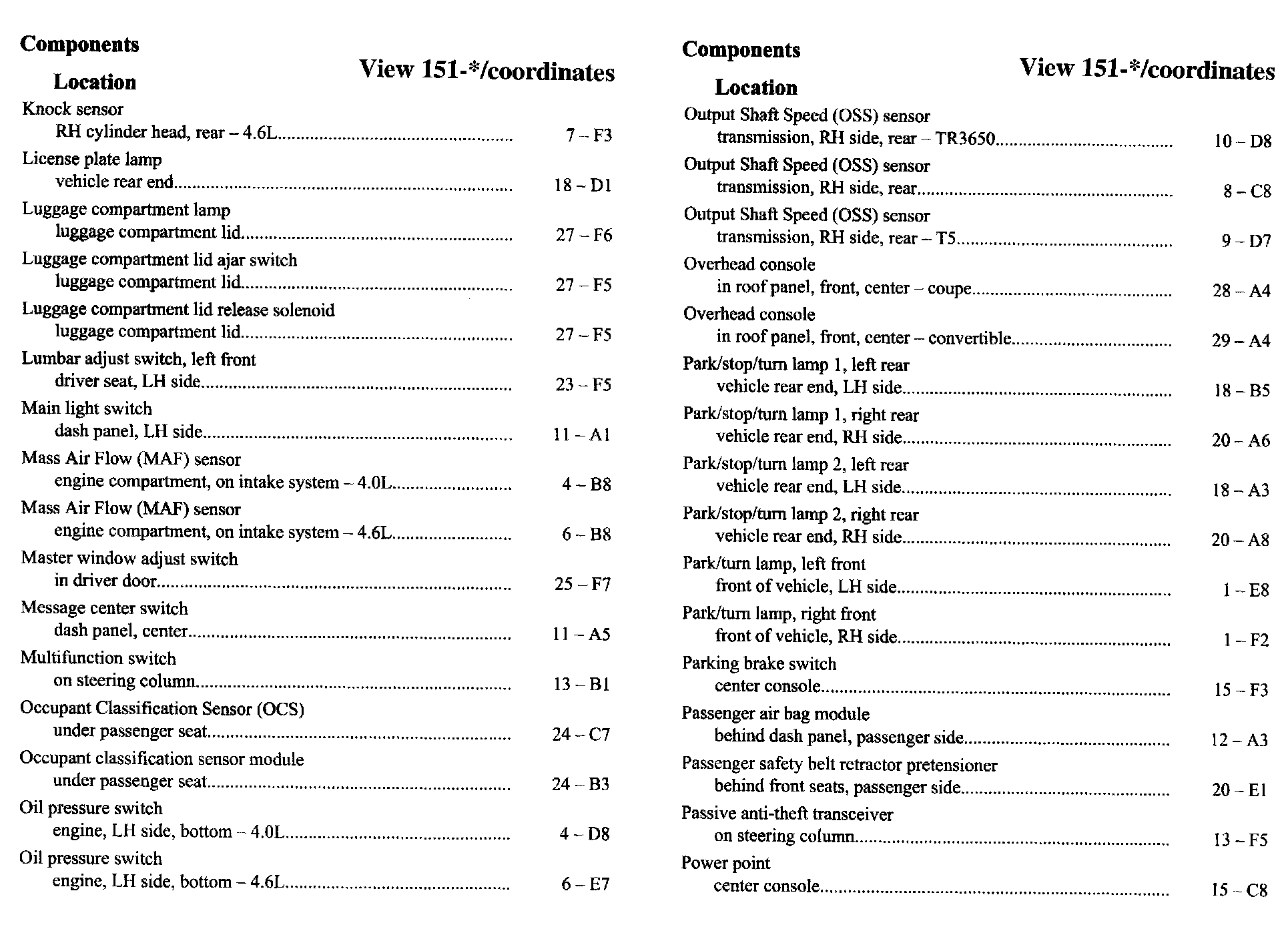

Kn-Po:

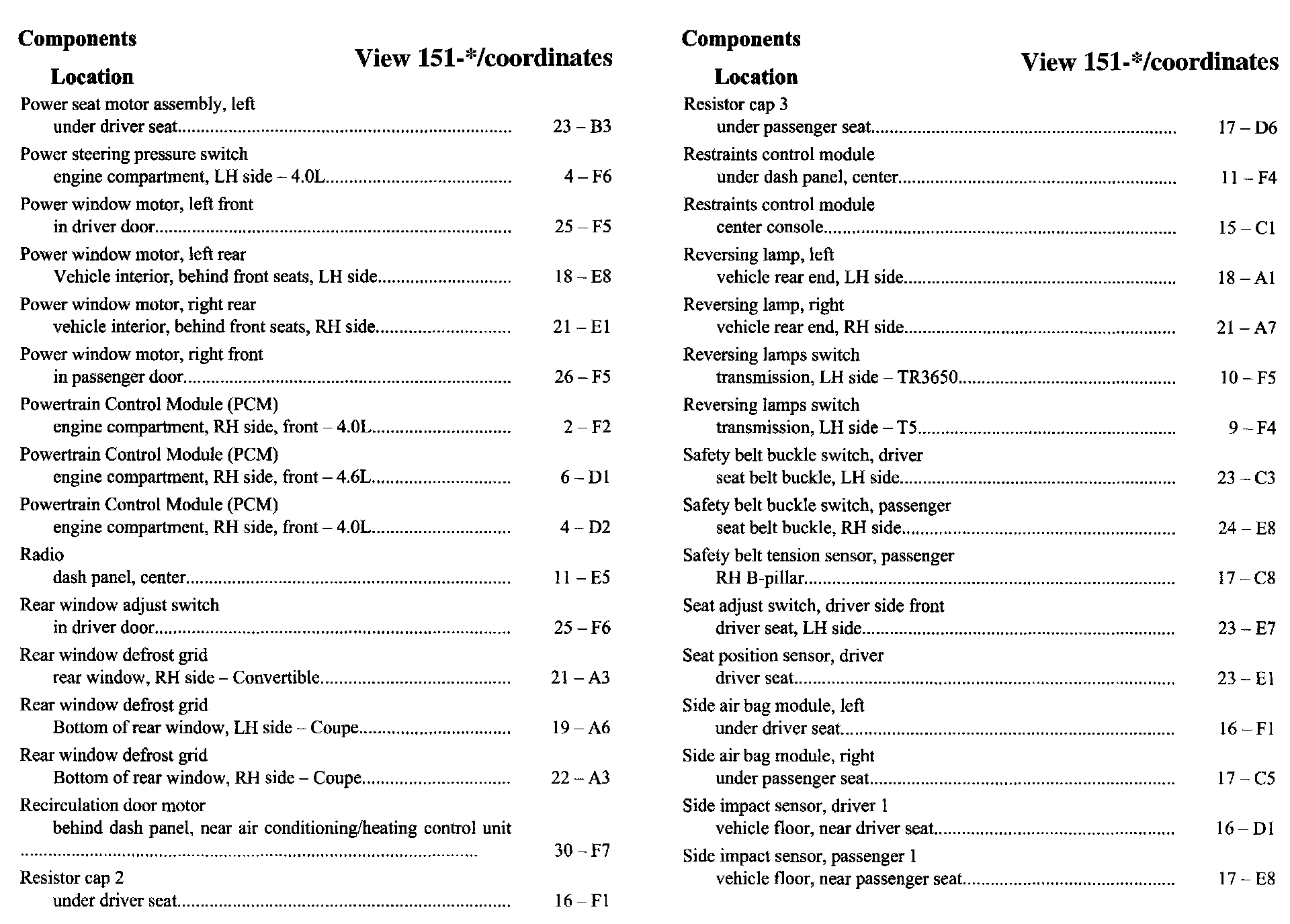

Po-Si:

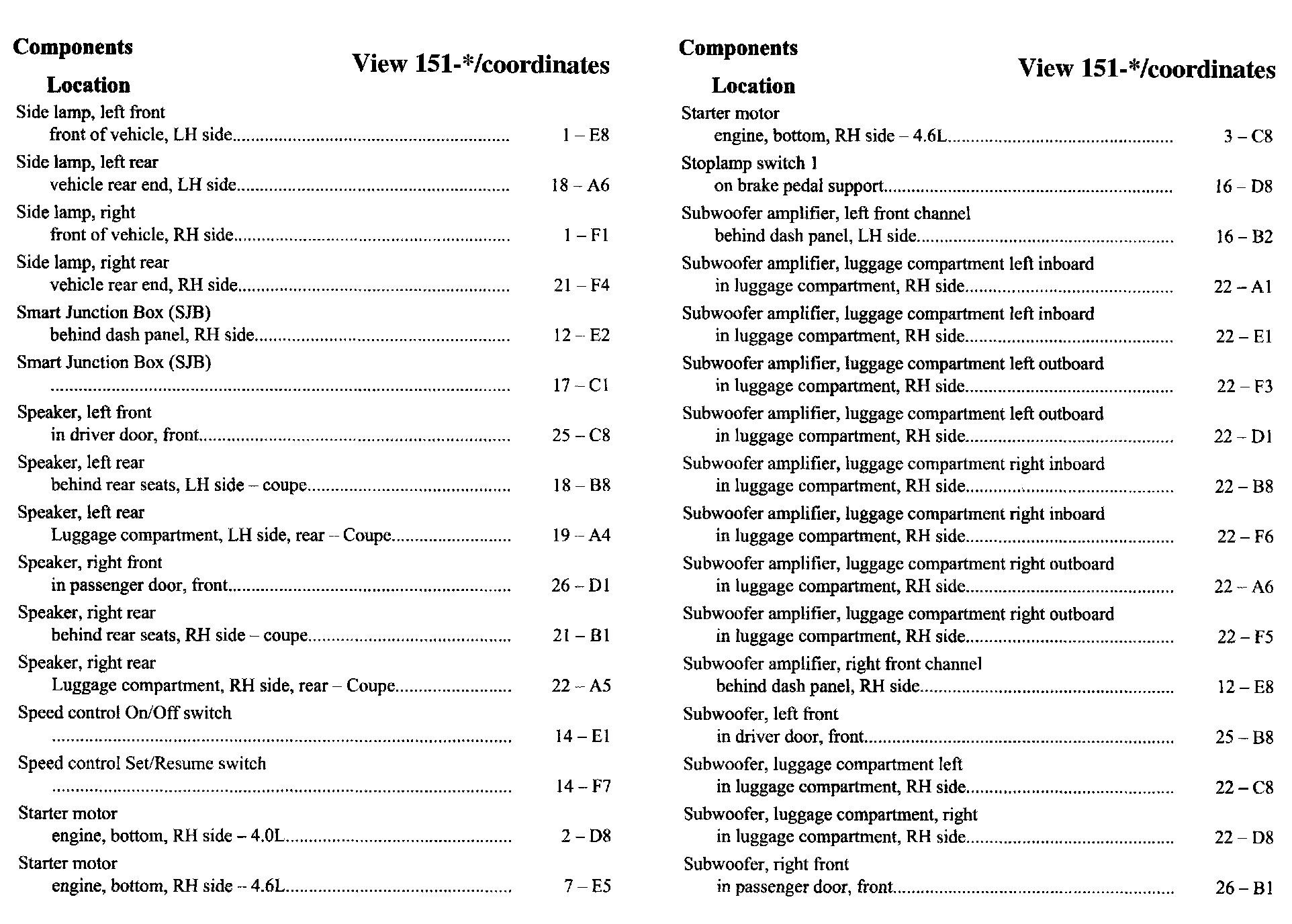

Si-Su:

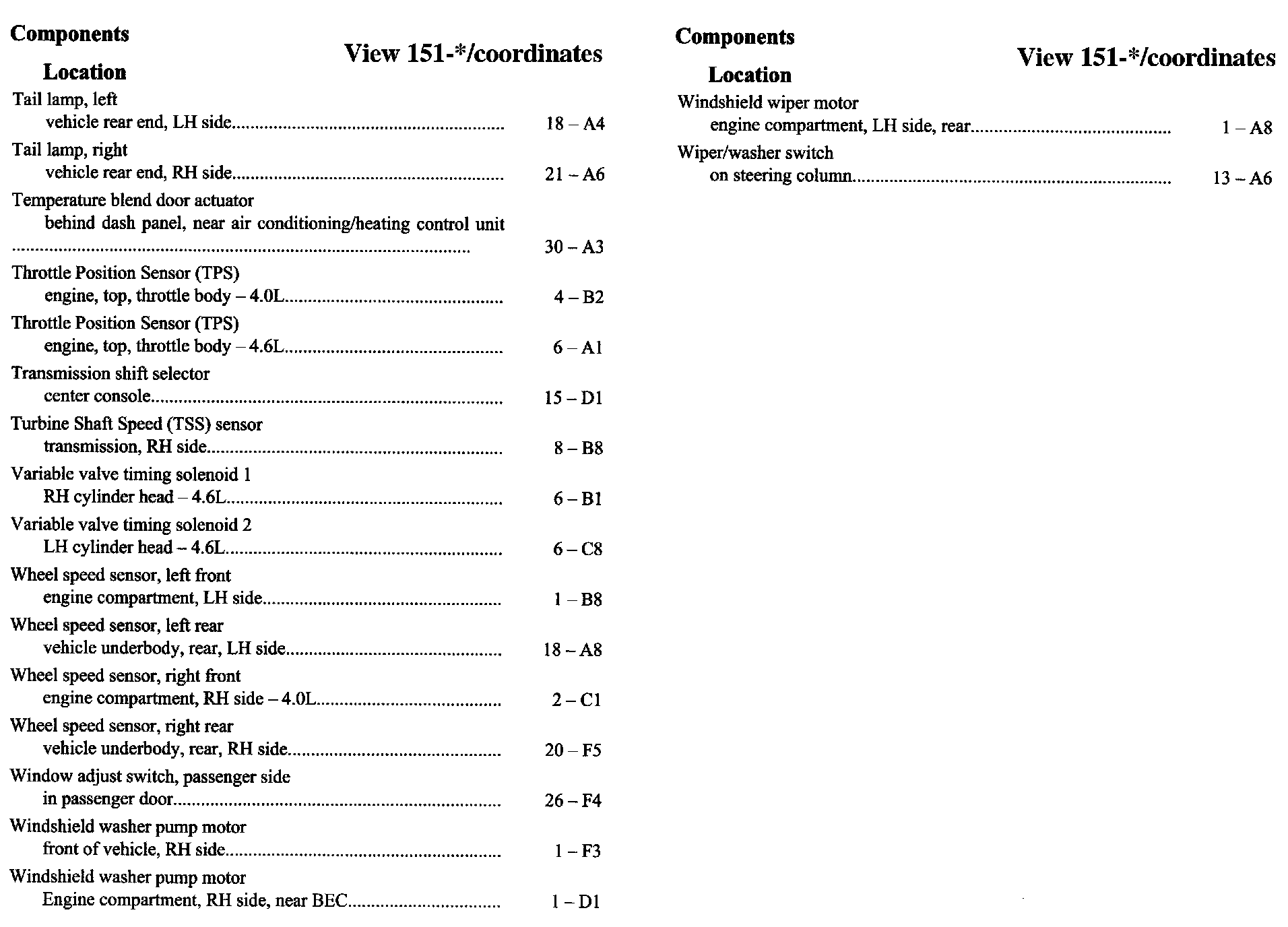

Ta-Wi:
