Home >> Ford >> 2006 >> Fusion L4-2.3L VIN Z >> Repair and Diagnosis >> Heating and Air Conditioning >> Solar Sensor >> Locations

Solar Sensor: Locations

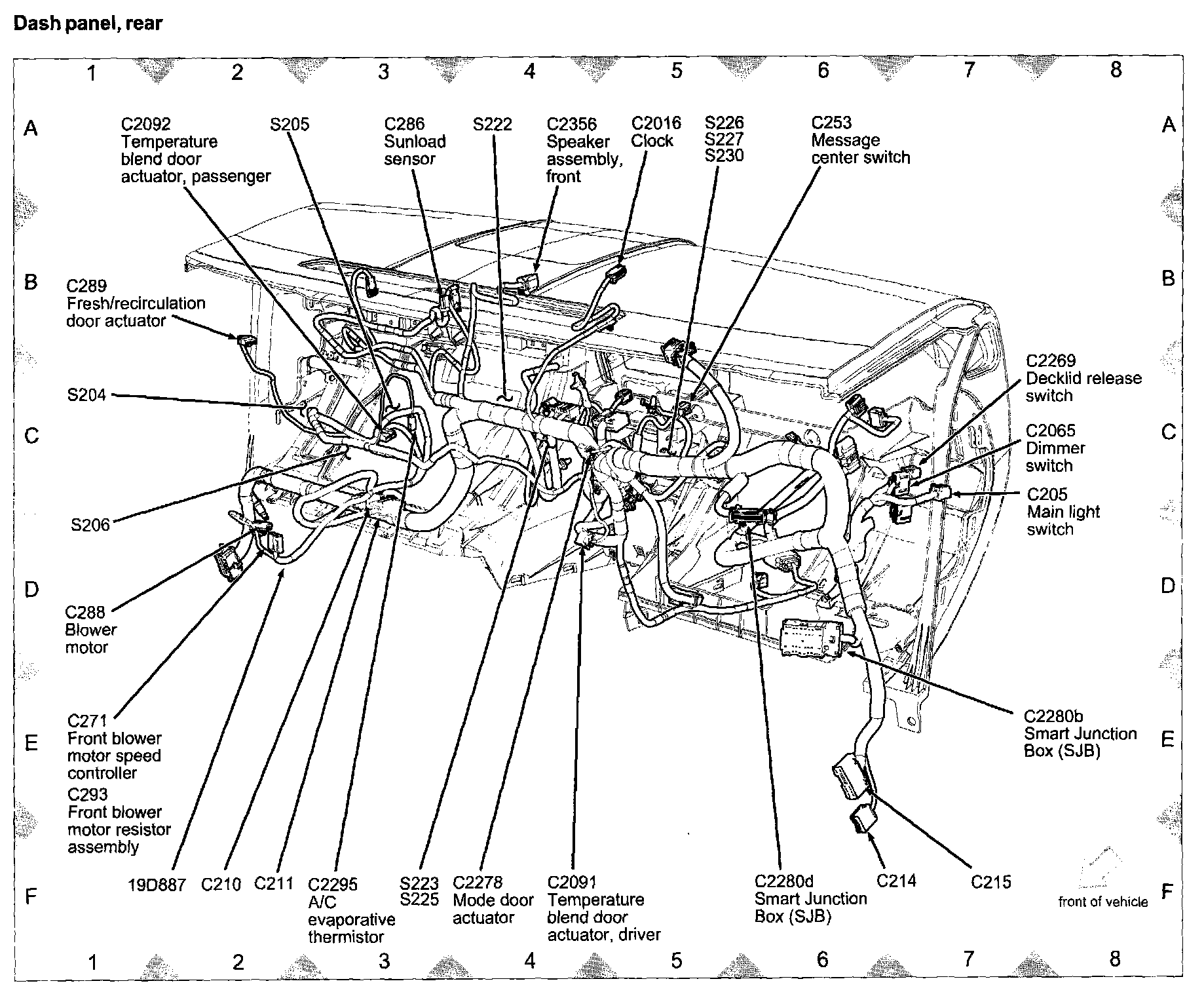

View 151-12 (Dash Panel, Rear):
