Home >> Ford >> 2006 >> Fusion L4-2.3L VIN Z >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Thermostat, Engine Cooling

Thermostat, Engine Cooling

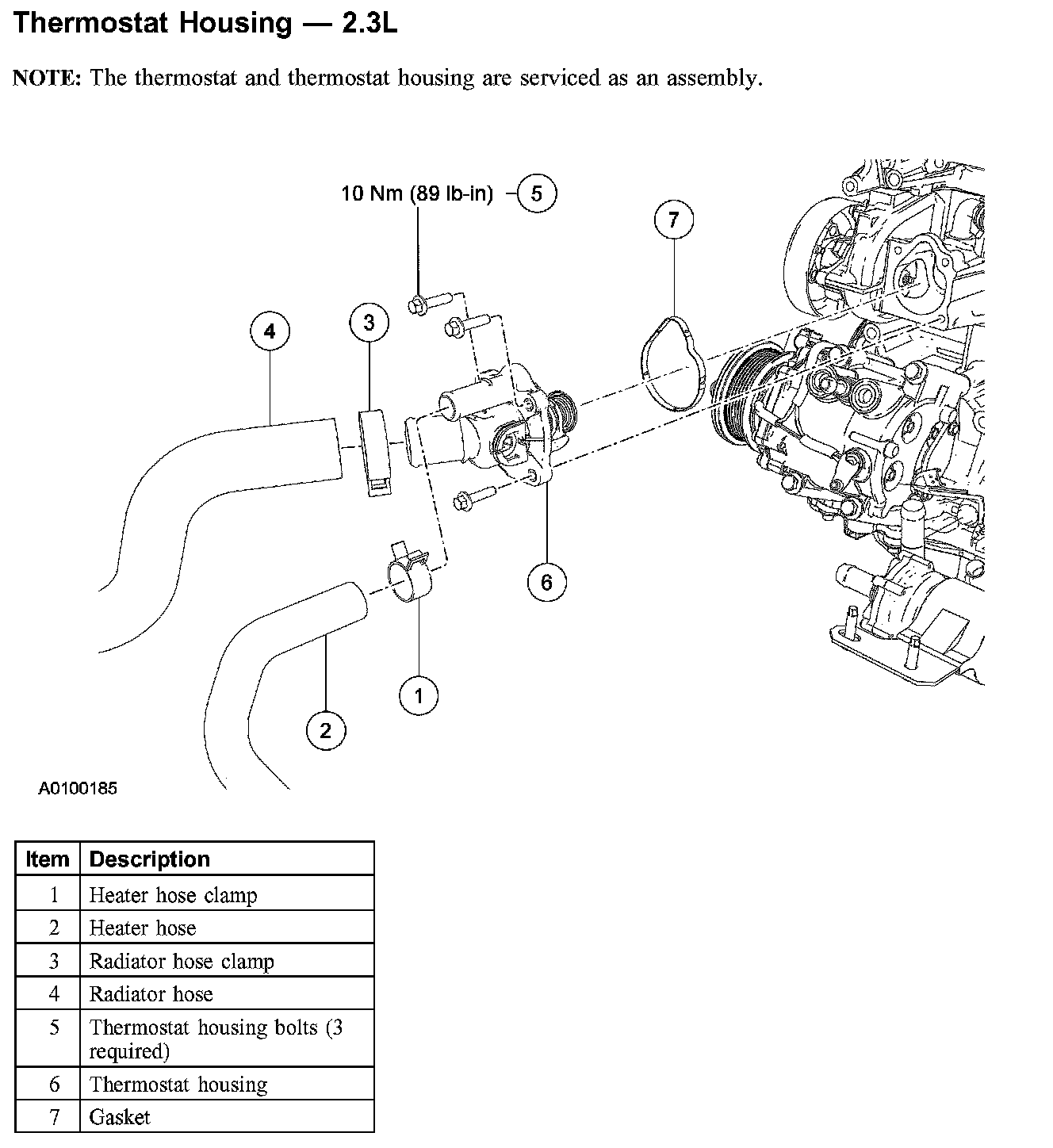

Thermostat Housing - 2.3L

Thermostat Housing - 2.3L:
