General Specifications

General Specifications

General Specifications:




General Specifications:

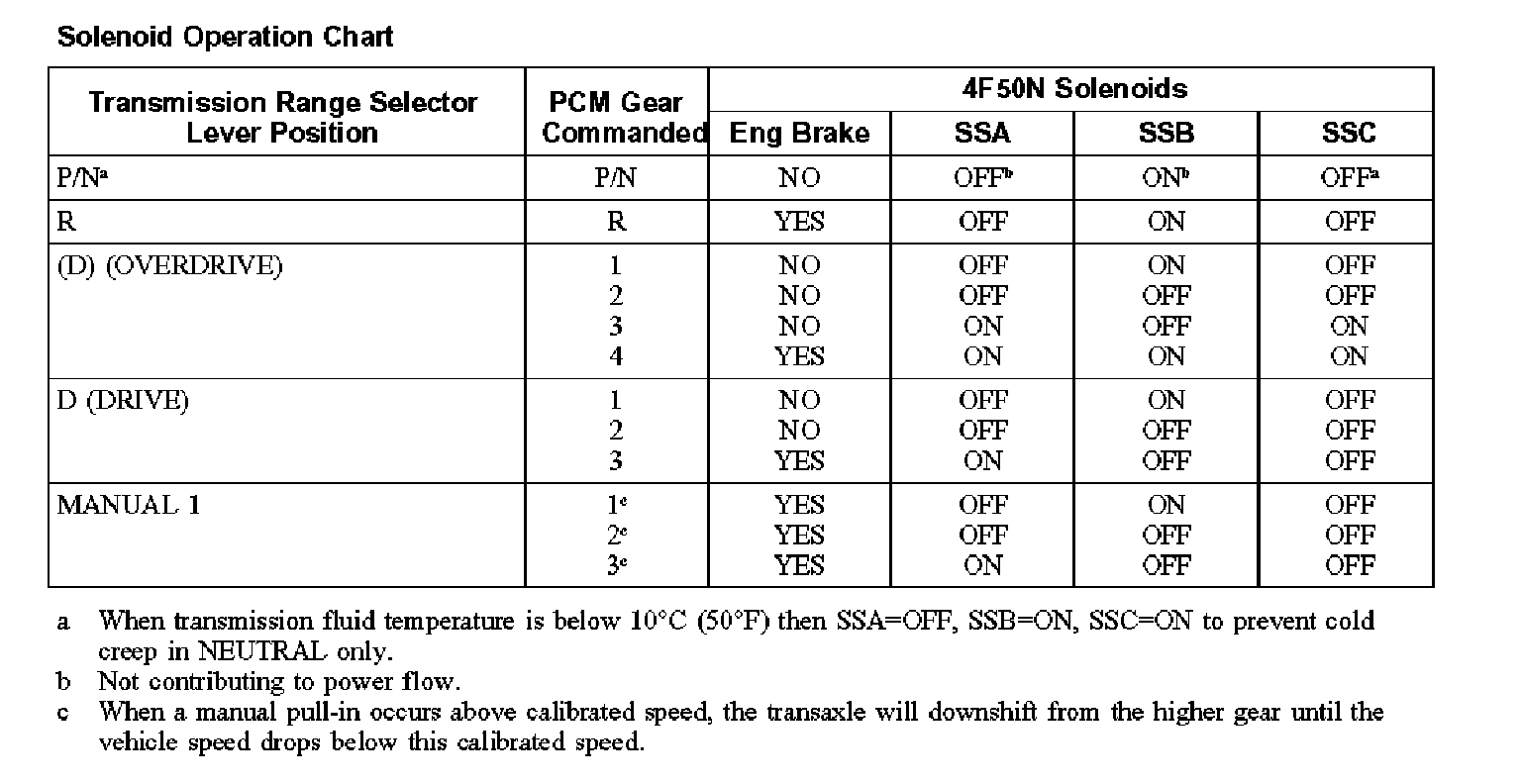

Solenoid Operation Chart:




Band and Clutch Application Chart A:




Band and Clutch Application Chart B:




Shift Speeds:
