Exhaust System
Exhaust System

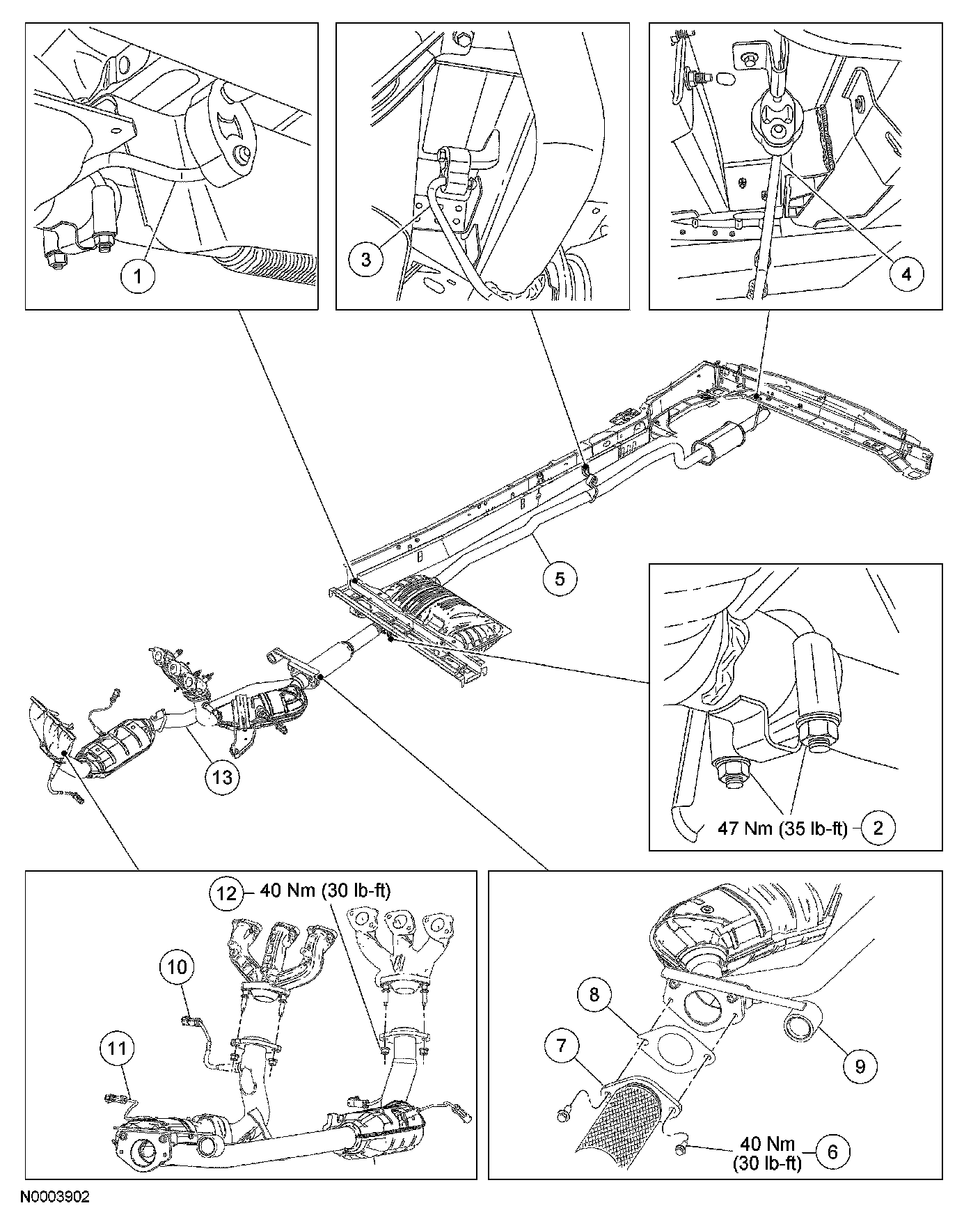

Exhaust System - Exploded View (Part 1):
Exhaust System - Exploded View (Part 2):
