Home >> Ford >> 2006 >> Five Hundred AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block

Fuse Block

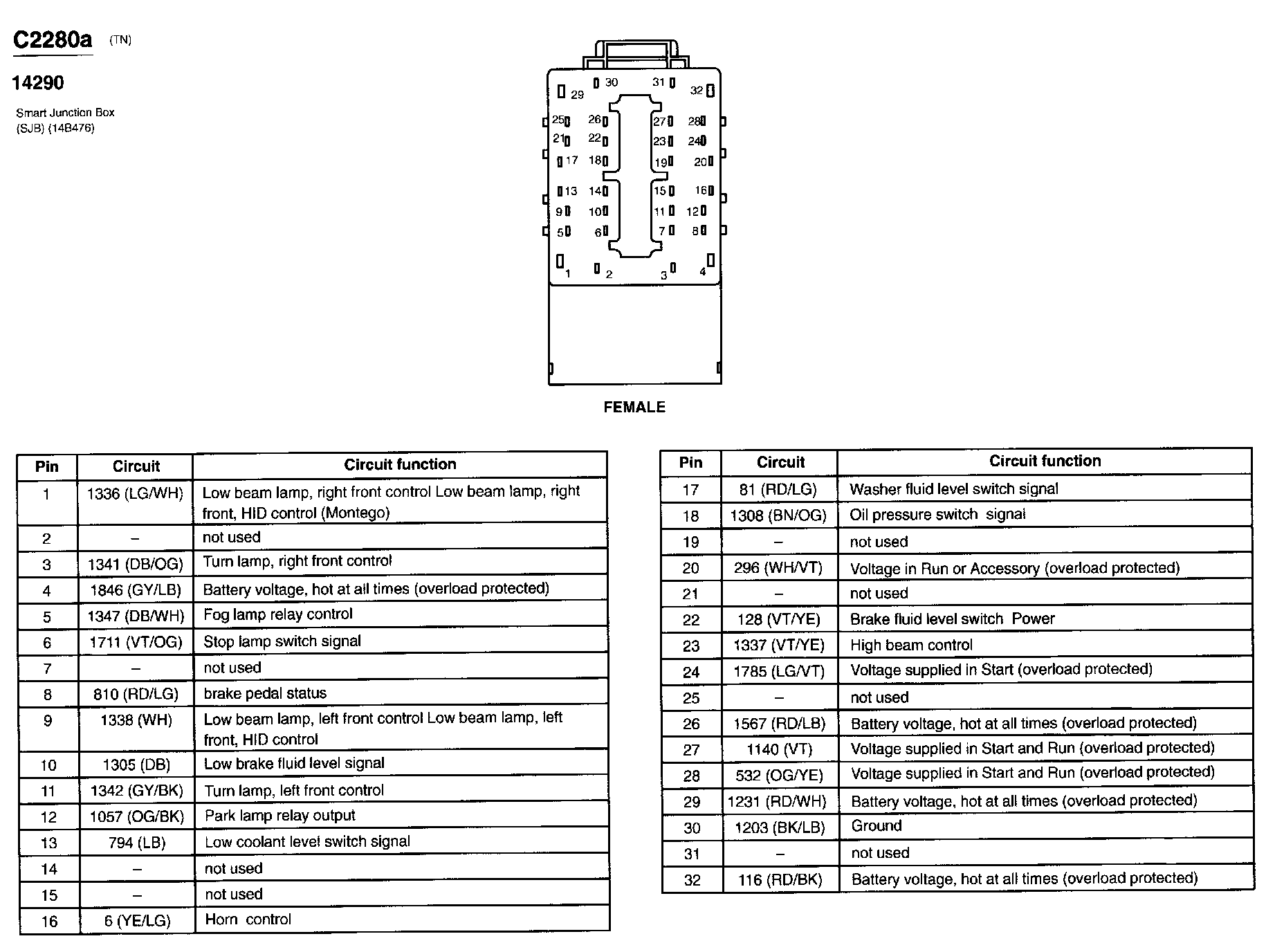

C2280a:

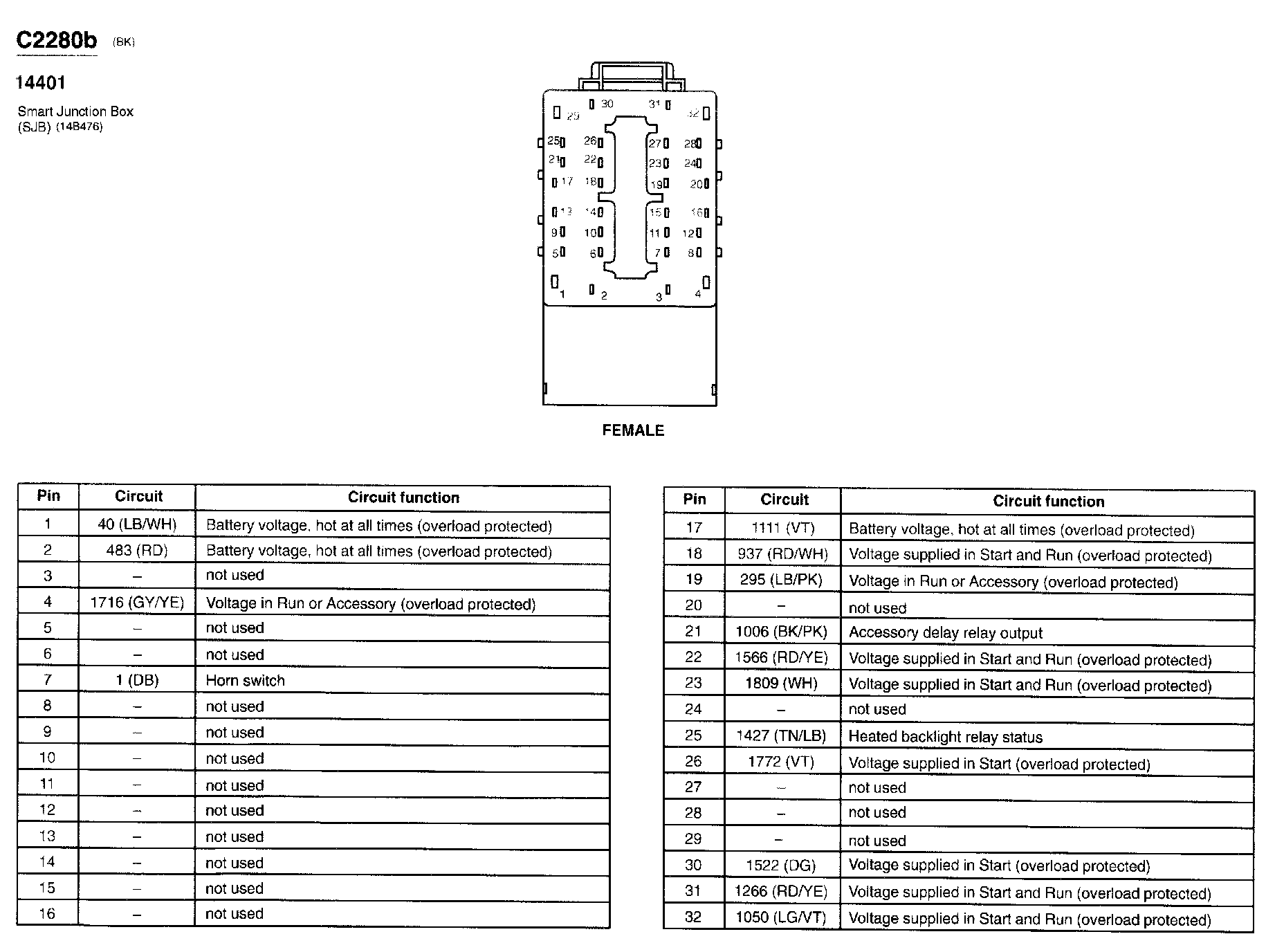

C2280b:

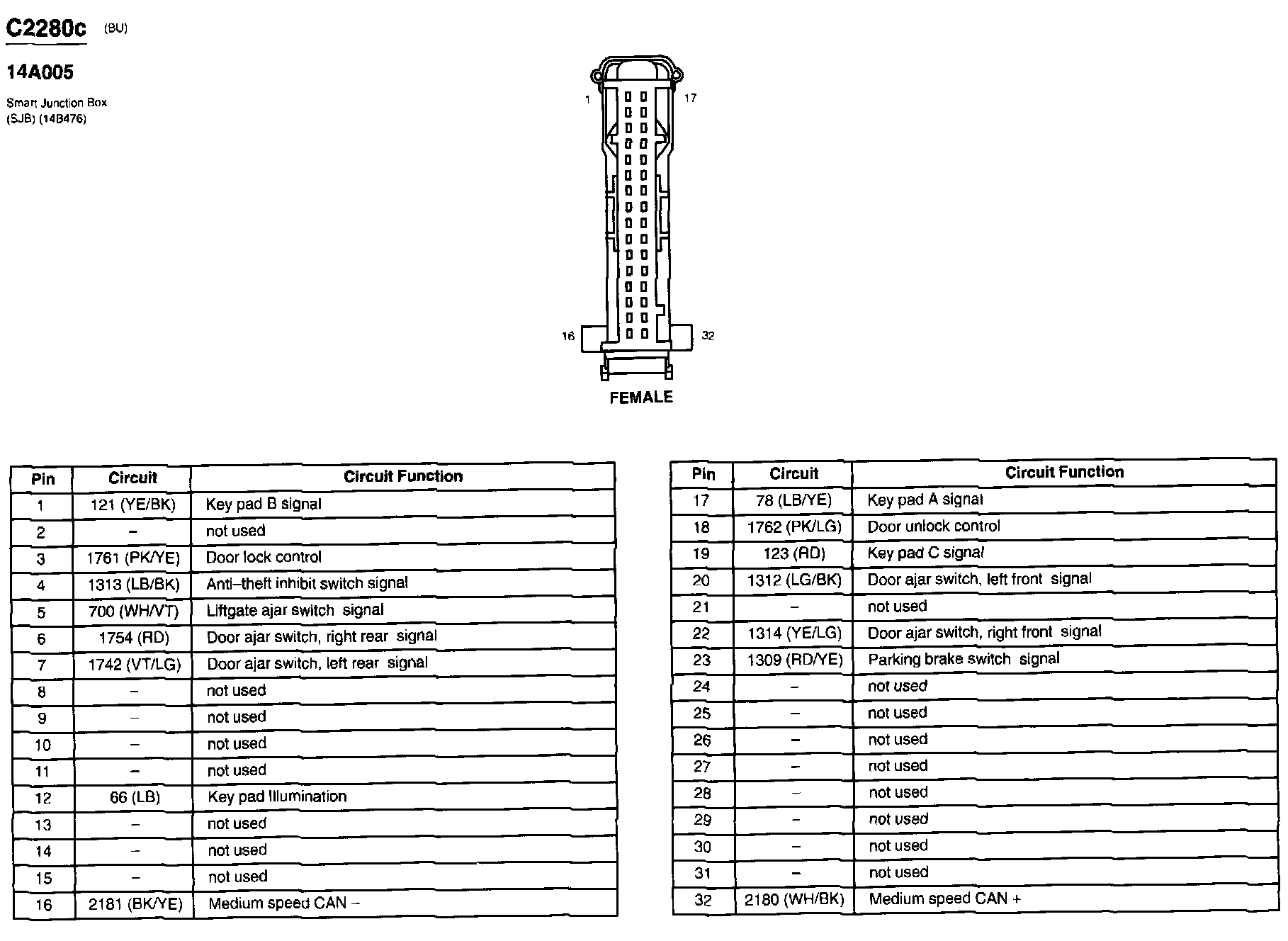

C2280c:

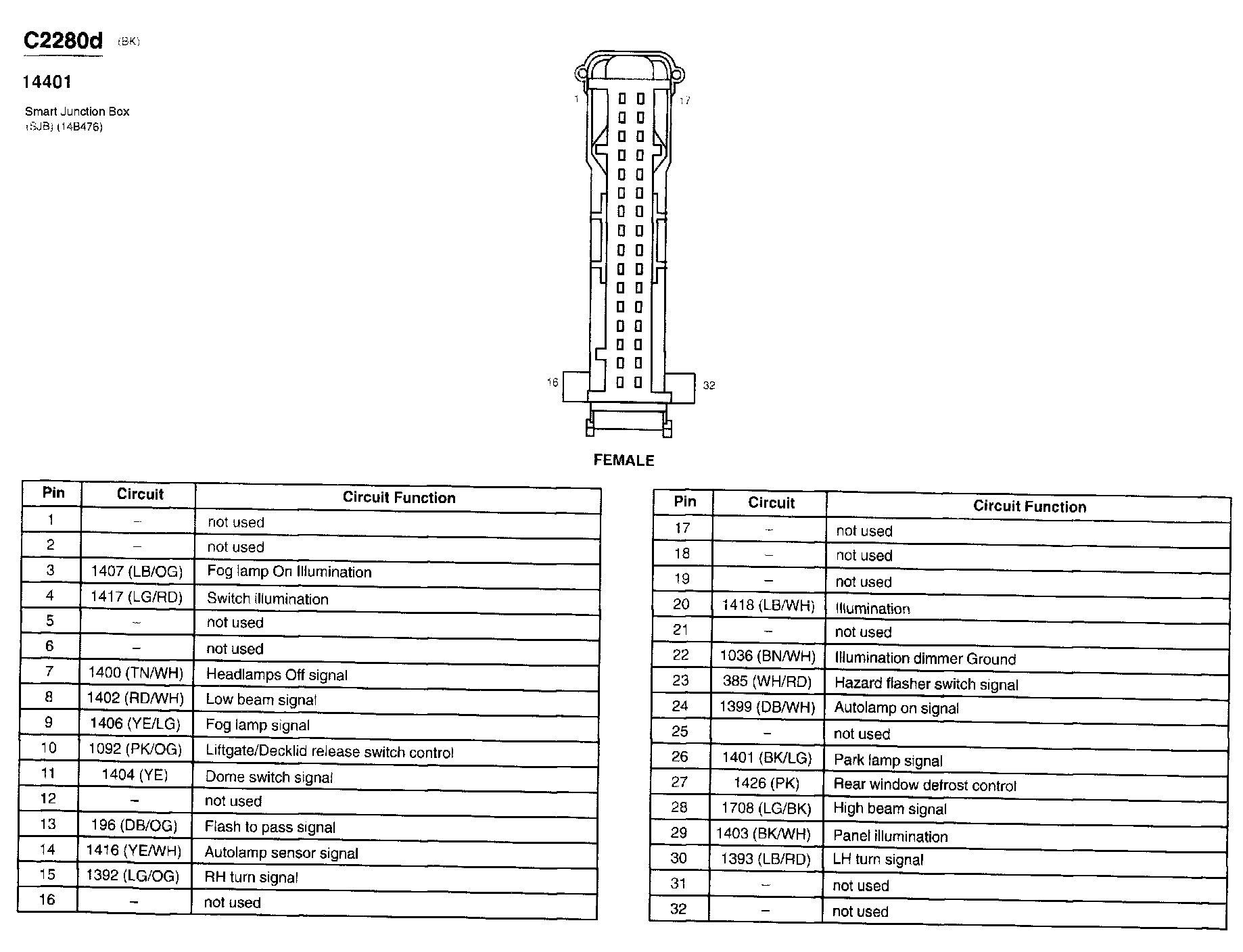

C2280d:

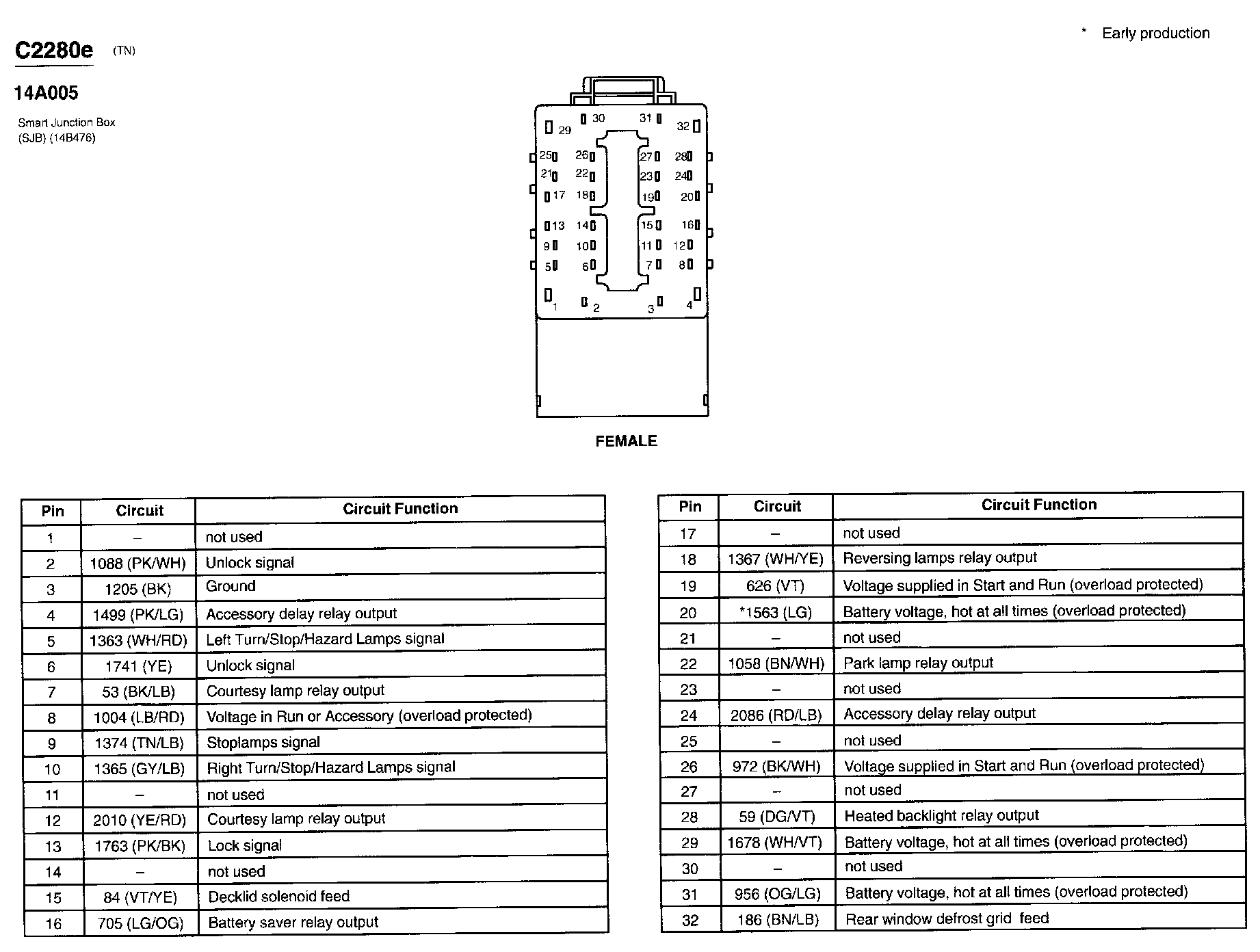

C2280e:



C2280g:
