Home >> Ford >> 2006 >> Explorer 4WD V8-4.6L VIN 8 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oil Temperature Sensor For ECM >> Locations

Oil Temperature Sensor For ECM: Locations

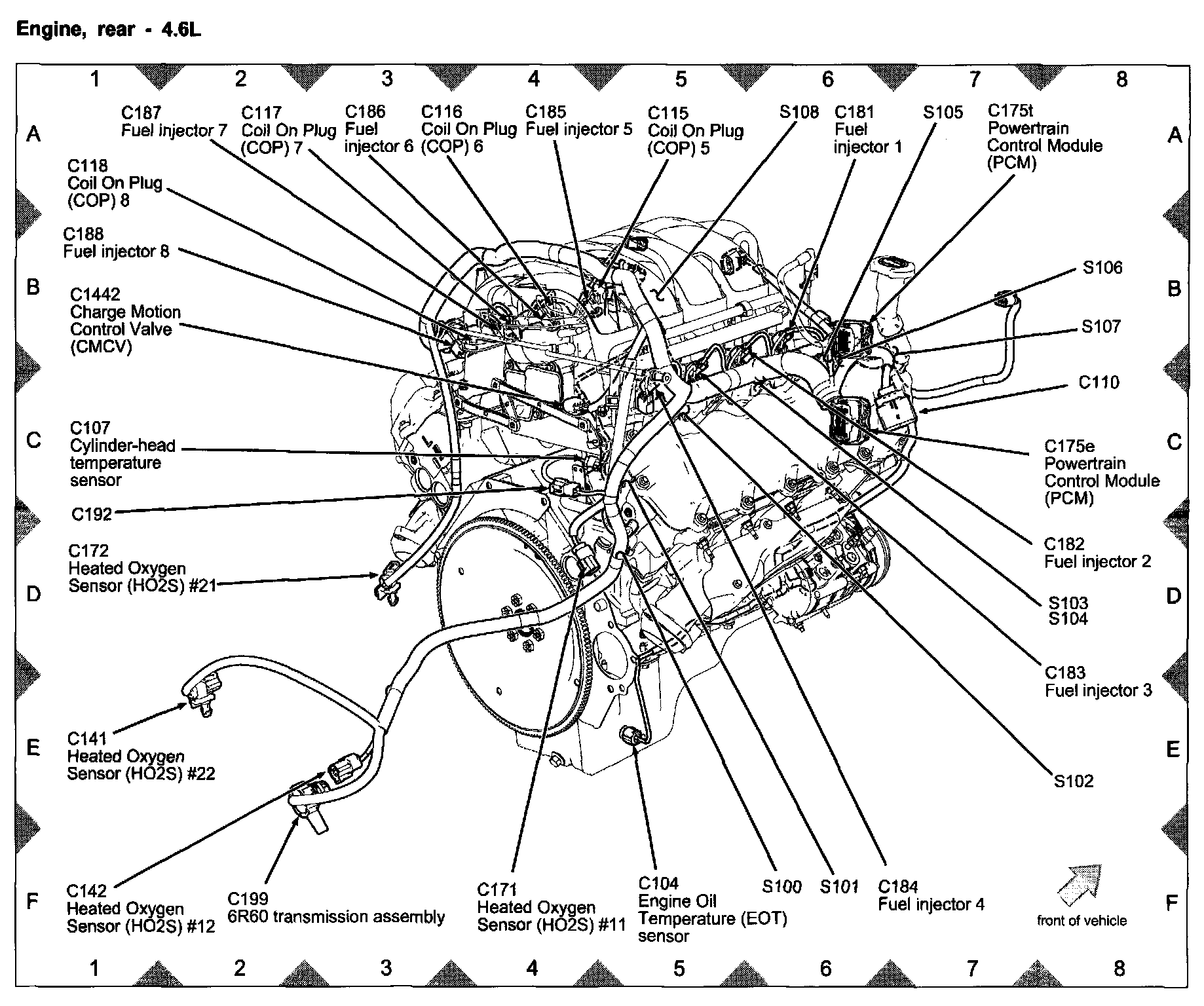

View 151-8 (Engine, Rear):
