Home >> Ford >> 2006 >> Explorer 4WD V8-4.6L VIN 8 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Diagram Information and Instructions >> Symbols

Symbols

Symbols Part 1:

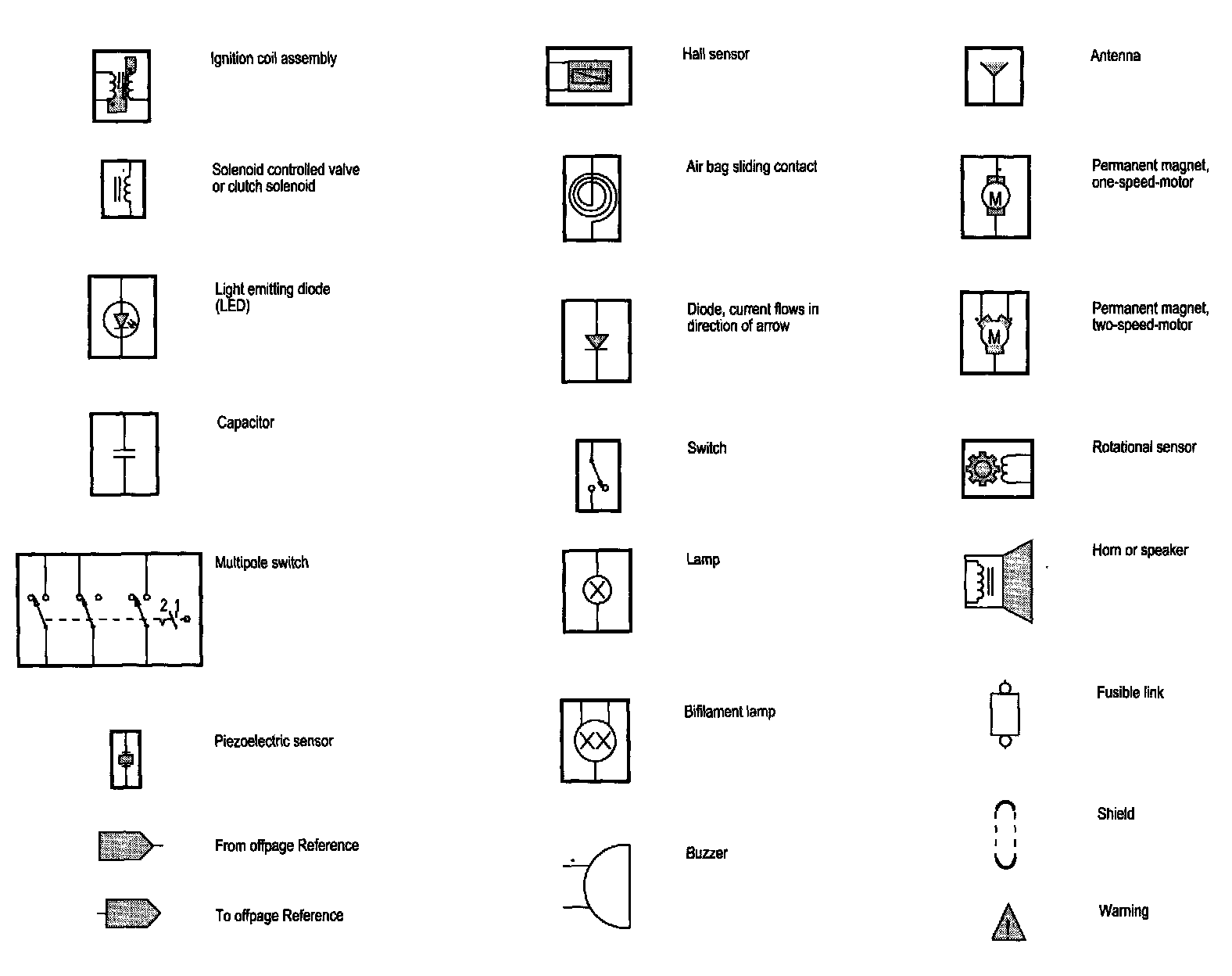

Symbols Part 2:

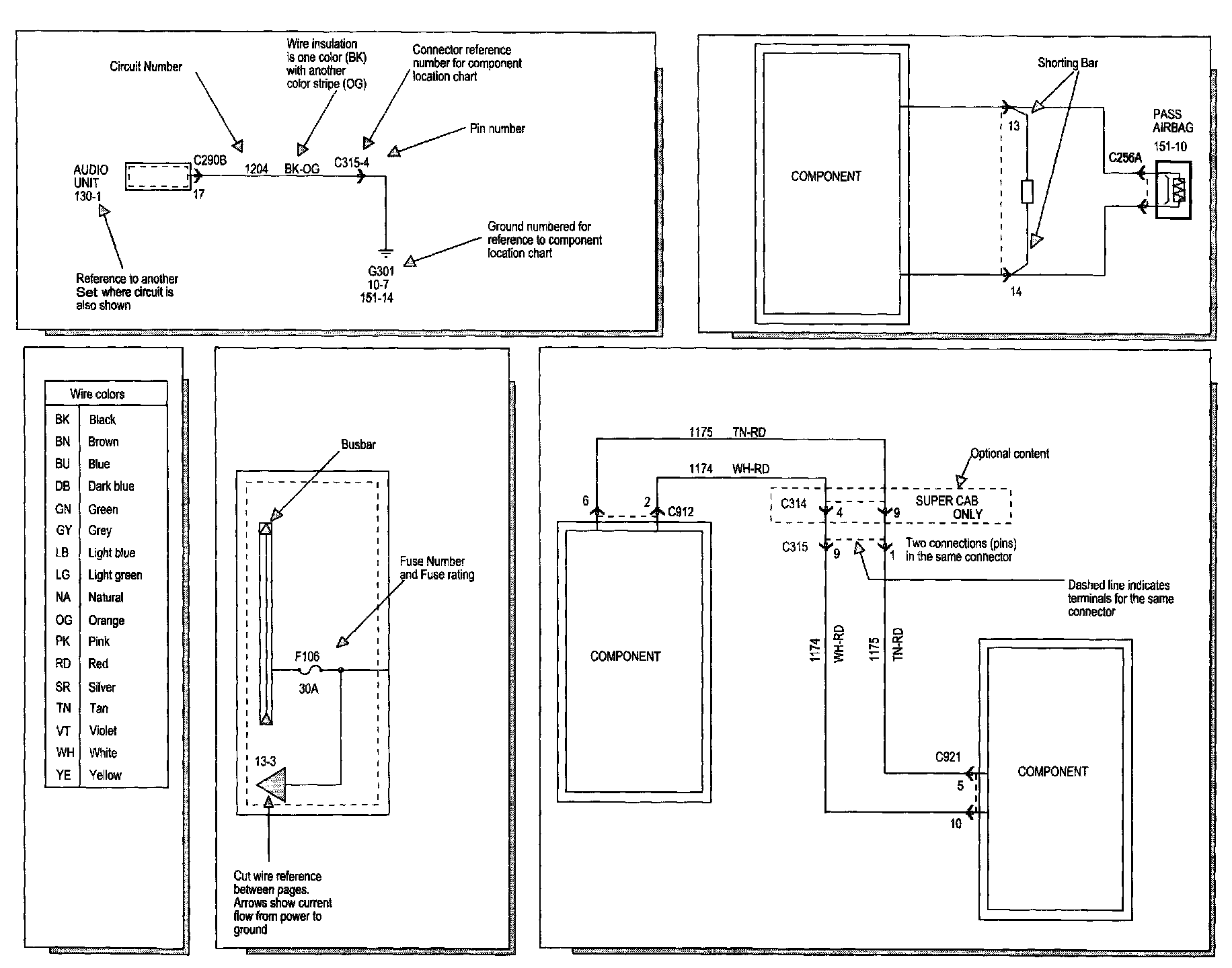

Symbols Part 3:

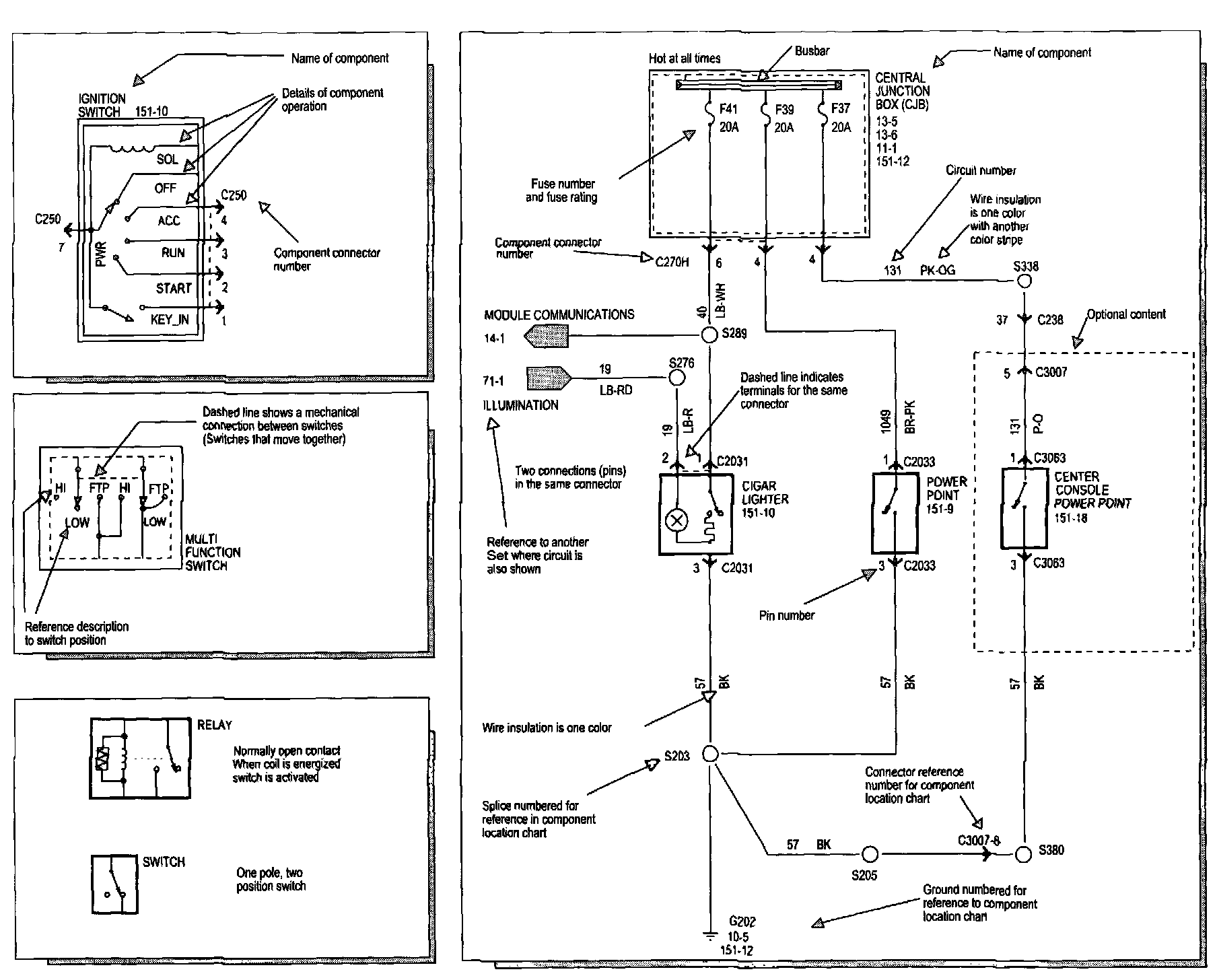

Symbols Part 4:

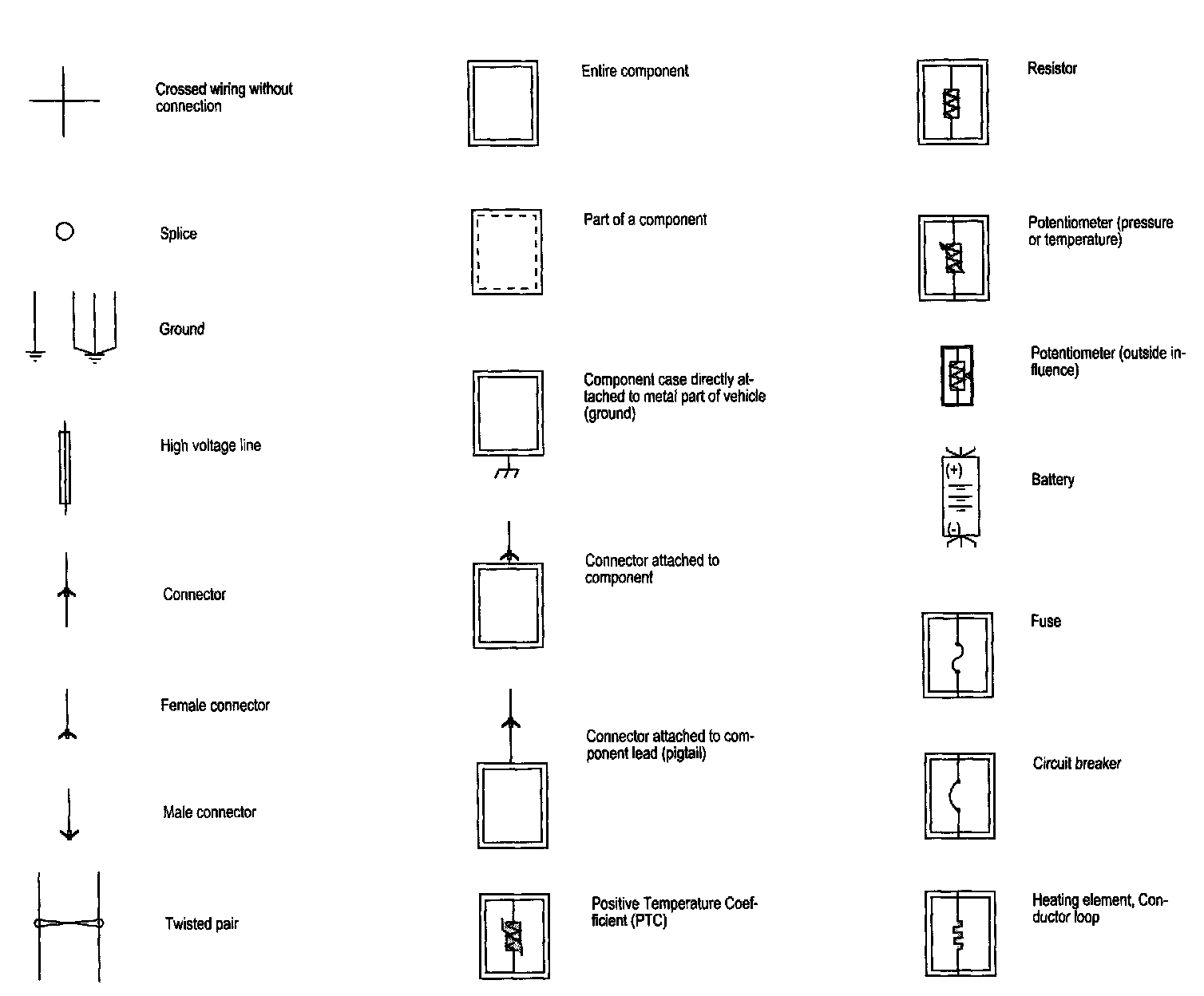

Symbols Part 5:
