Climate Control Assembly

CLIMATE CONTROL ASSEMBLY

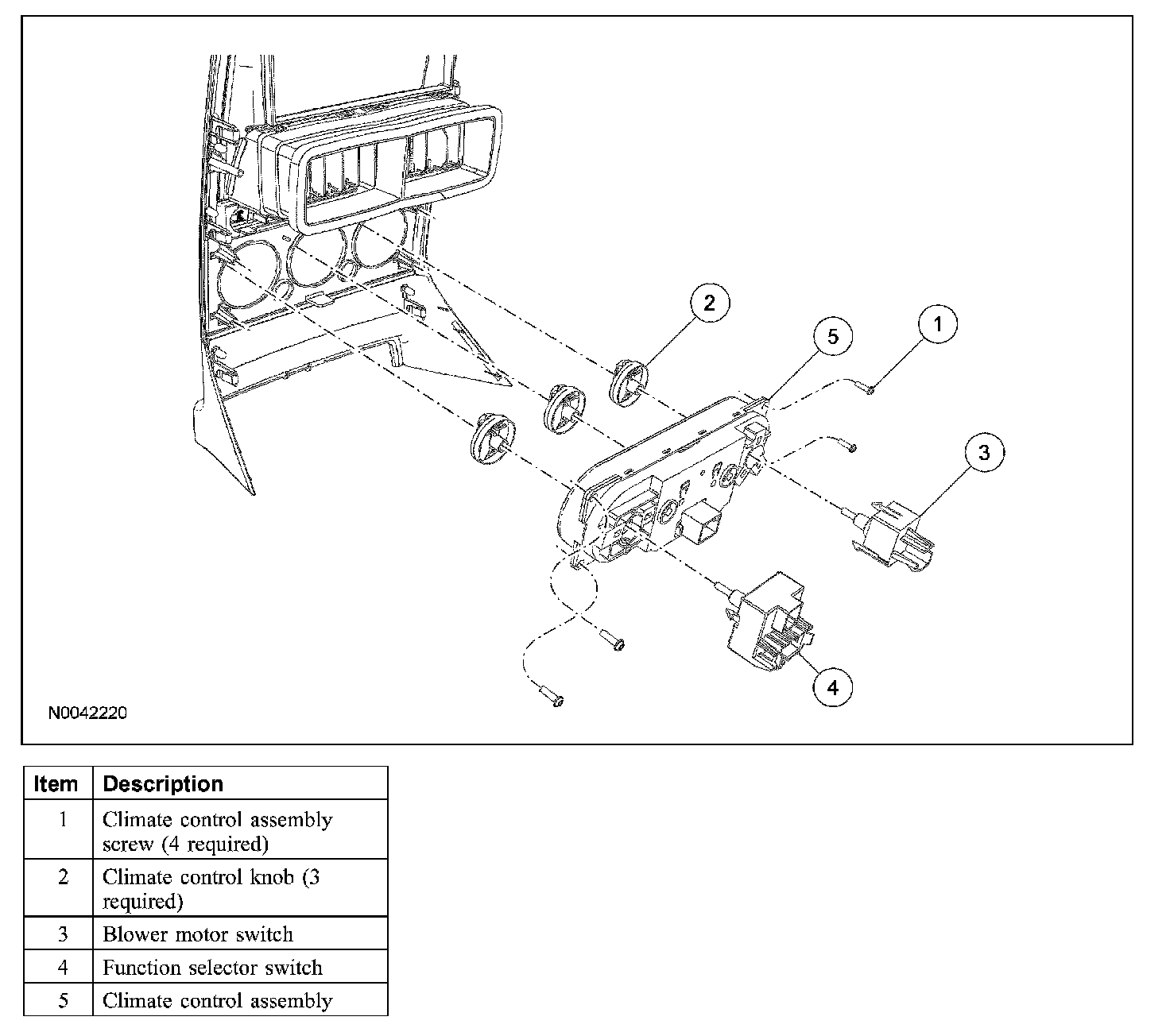

Removal and Installation

All vehicles
1. Remove the center instrument panel finish panel.
2. Remove the 4 climate control assembly screws.
3. Remove the climate control assembly.

Vehicles with manual climate control
4. Remove the 3 climate control knobs.







5. Depress the tabs and remove the blower motor switch.







6. Depress the tabs and remove the function selector switch.

All vehicles
7. To install, reverse the removal procedure.
