Seat Occupant Sensor
>>
Occupant Classification Sensor (OCS) Module
Occupant Classification Sensor (OCS) Module

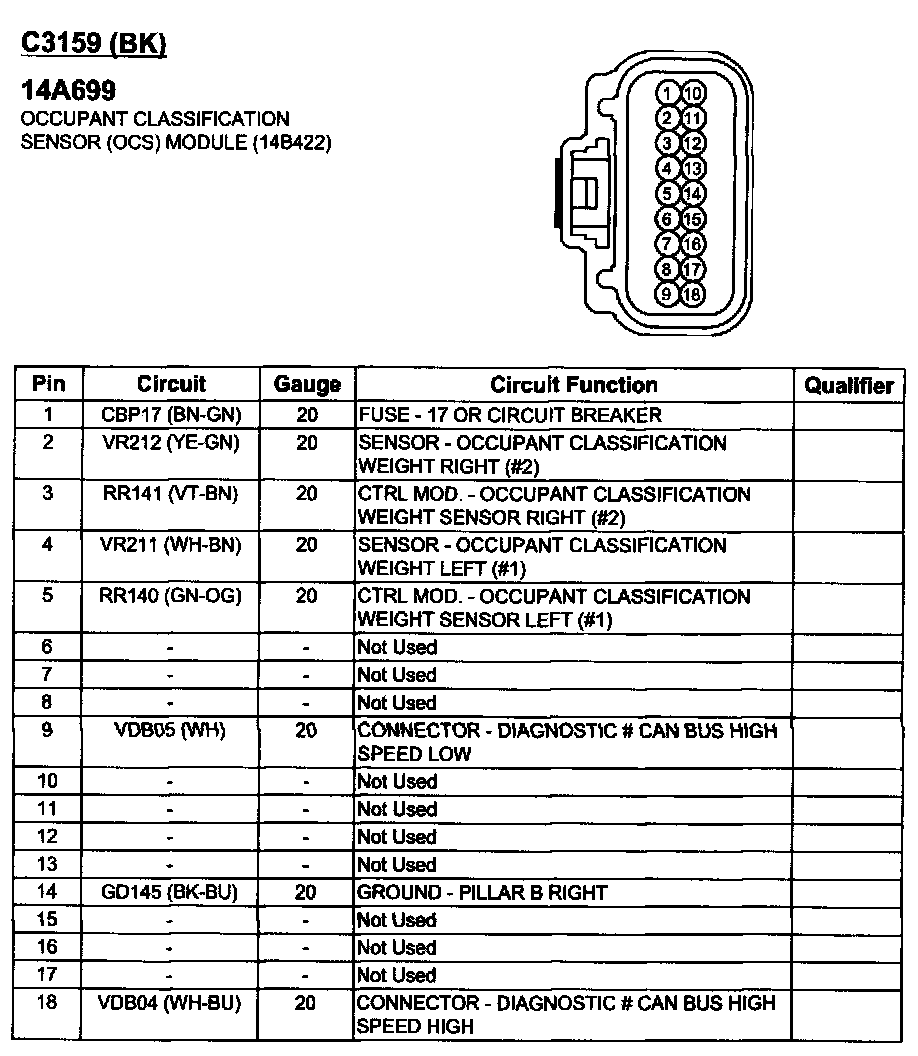

C3159:
