Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR












Removal and Installation
1. With vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery ground cable.
3. Remove the accessory drive belt.

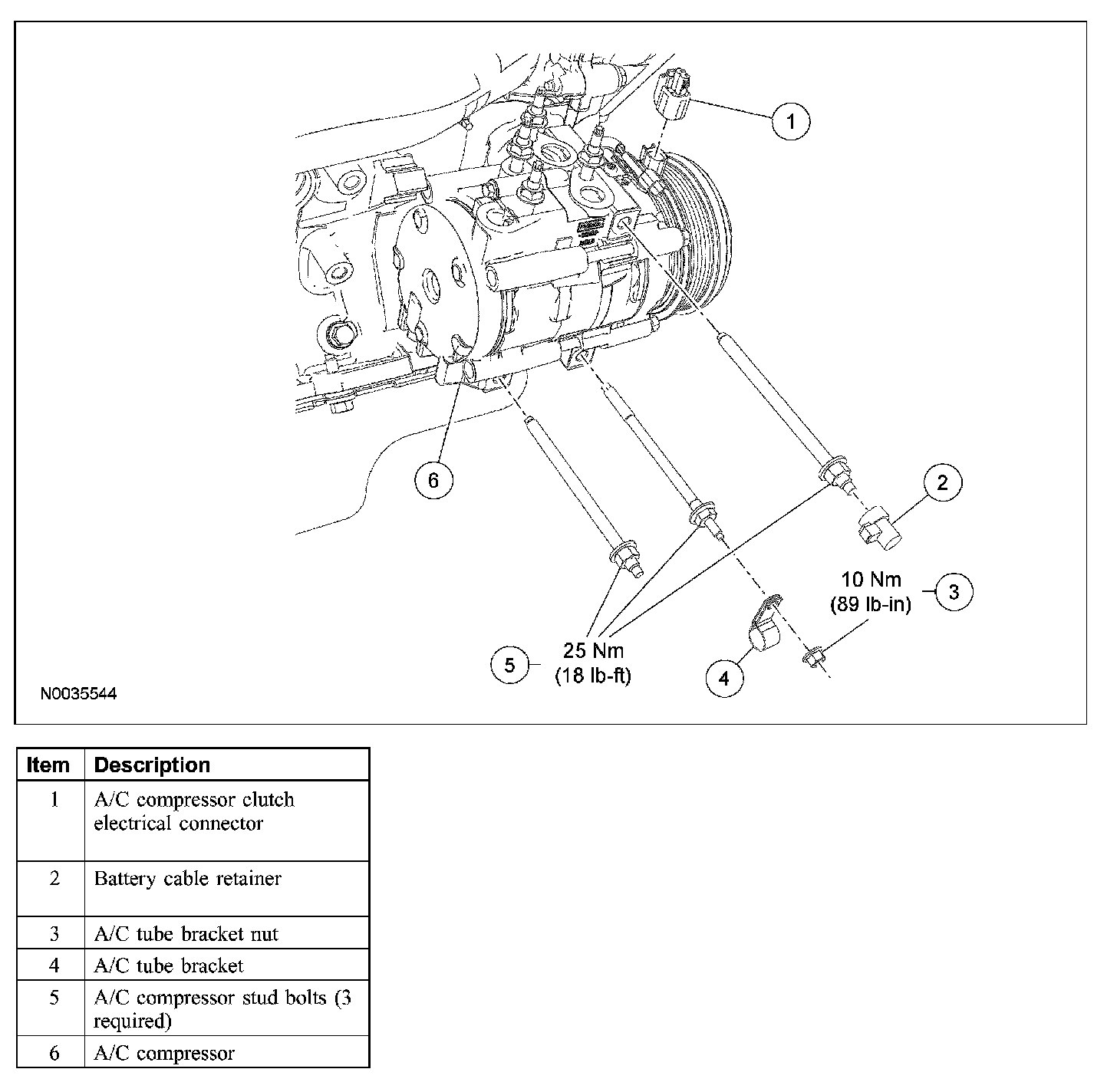

4. Disconnect the A/C compressor coil electrical connector.
5. Detach the battery cable retainer from the A/C compressor stud bolts.
6. Remove the nut and detach the A/C tube bracket.
- To install, tighten to 10 Nm (89 lb-in).

7. Remove the stud bolts and position the A/C compressor aside.
- To install, tighten to 25 Nm (18 lb-ft).

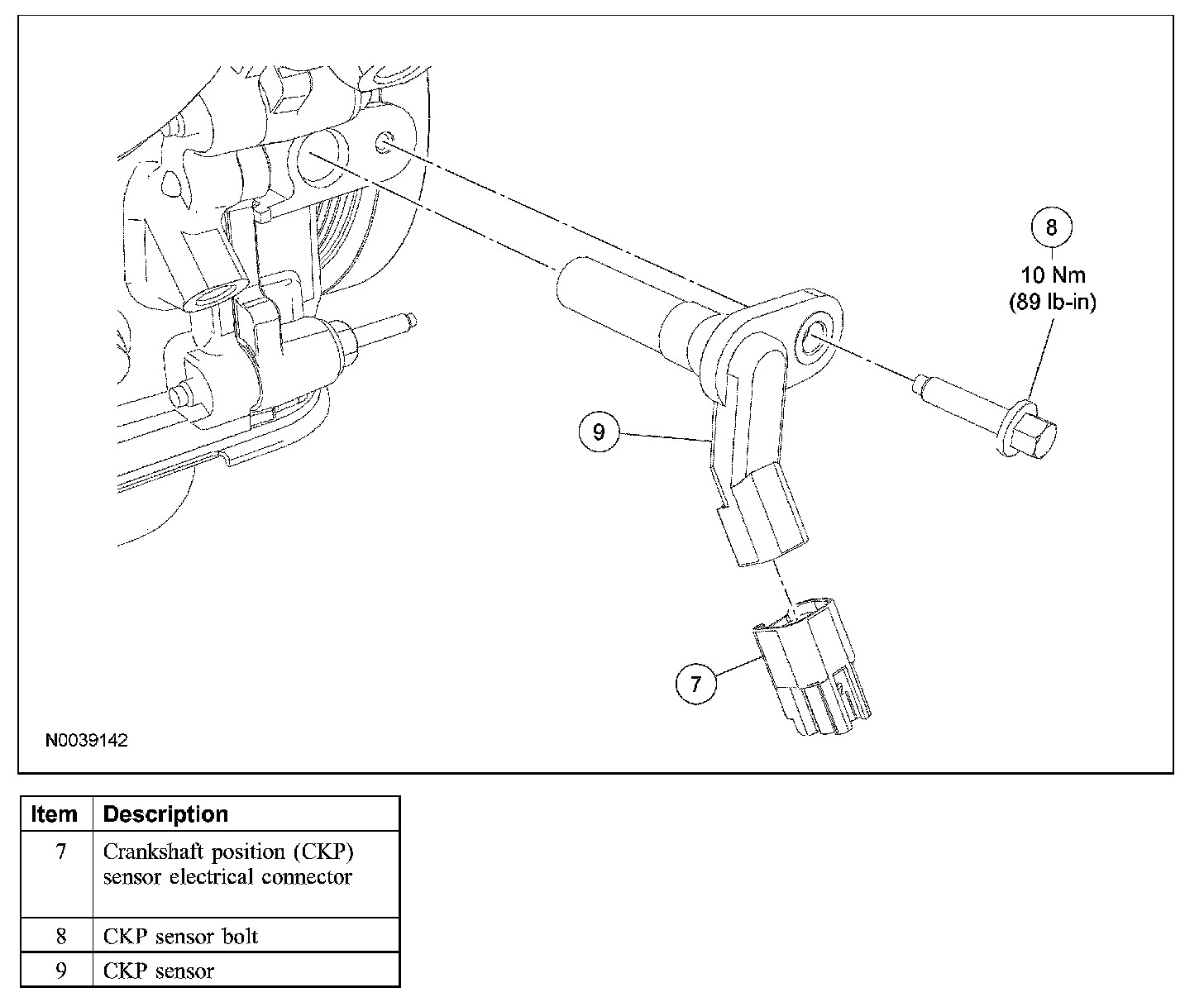

8. Disconnect the crankshaft position (CKP) sensor electrical connector.
9. Remove the bolt and the CKP sensor.
- To install, tighten to 10 Nm (89 lb-in).

10. To install, reverse the removal procedure.
