Automatic Transmission/Transaxle
>>
System Diagram
System Diagram

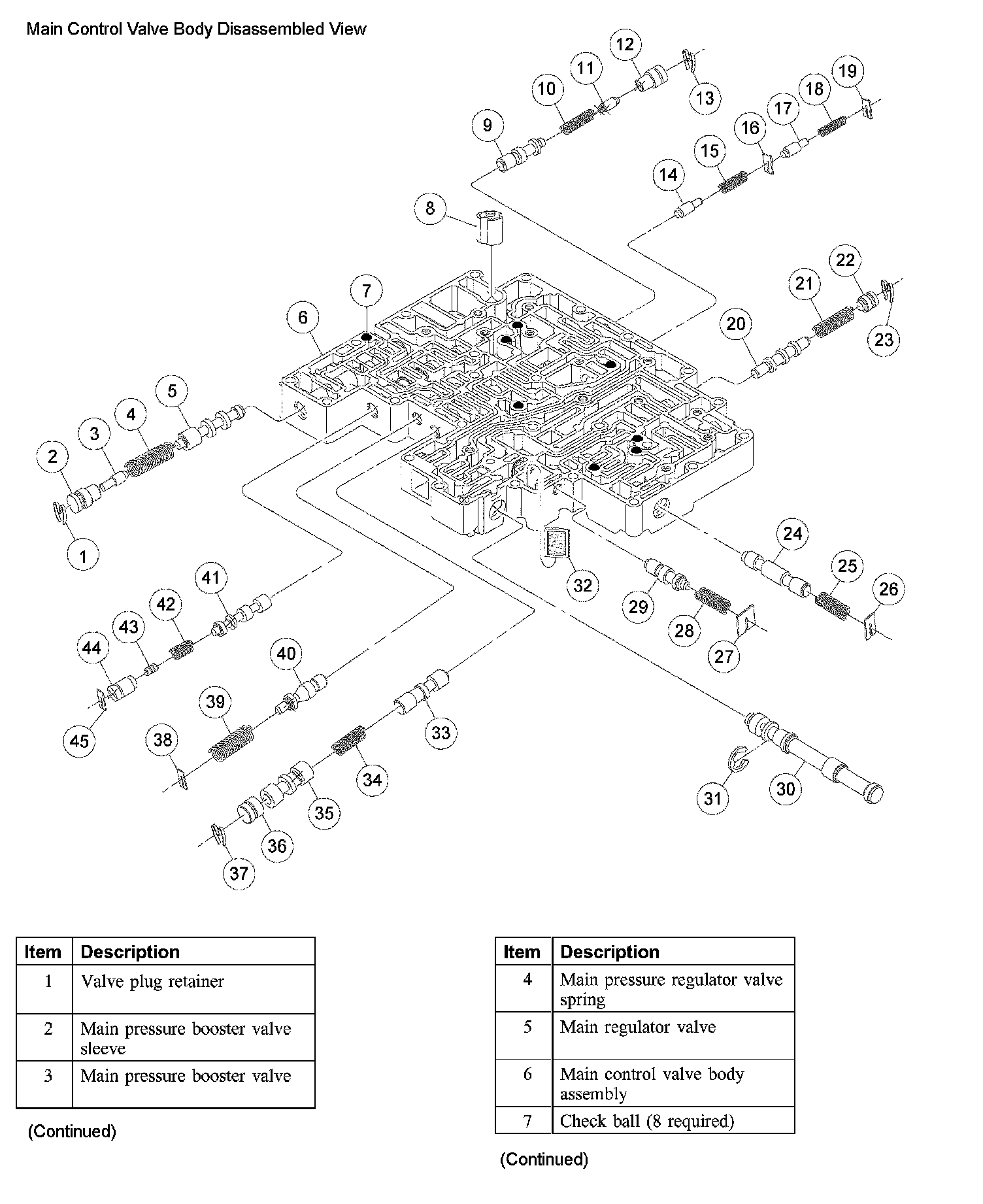

Main Control Valve Body Disassembled View (Part 1):

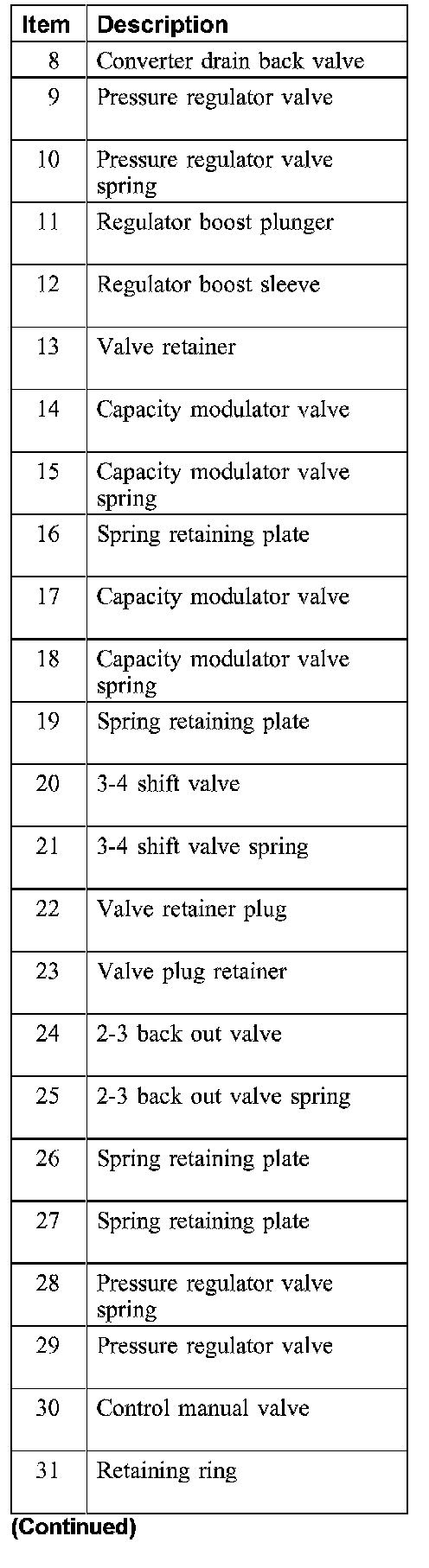

Main Control Valve Body Disassembled View (Part 2):
Main Control Valve Body Disassembled View (Part 3):
