Escape 2WD L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Steering
>>
Steering Column
>>

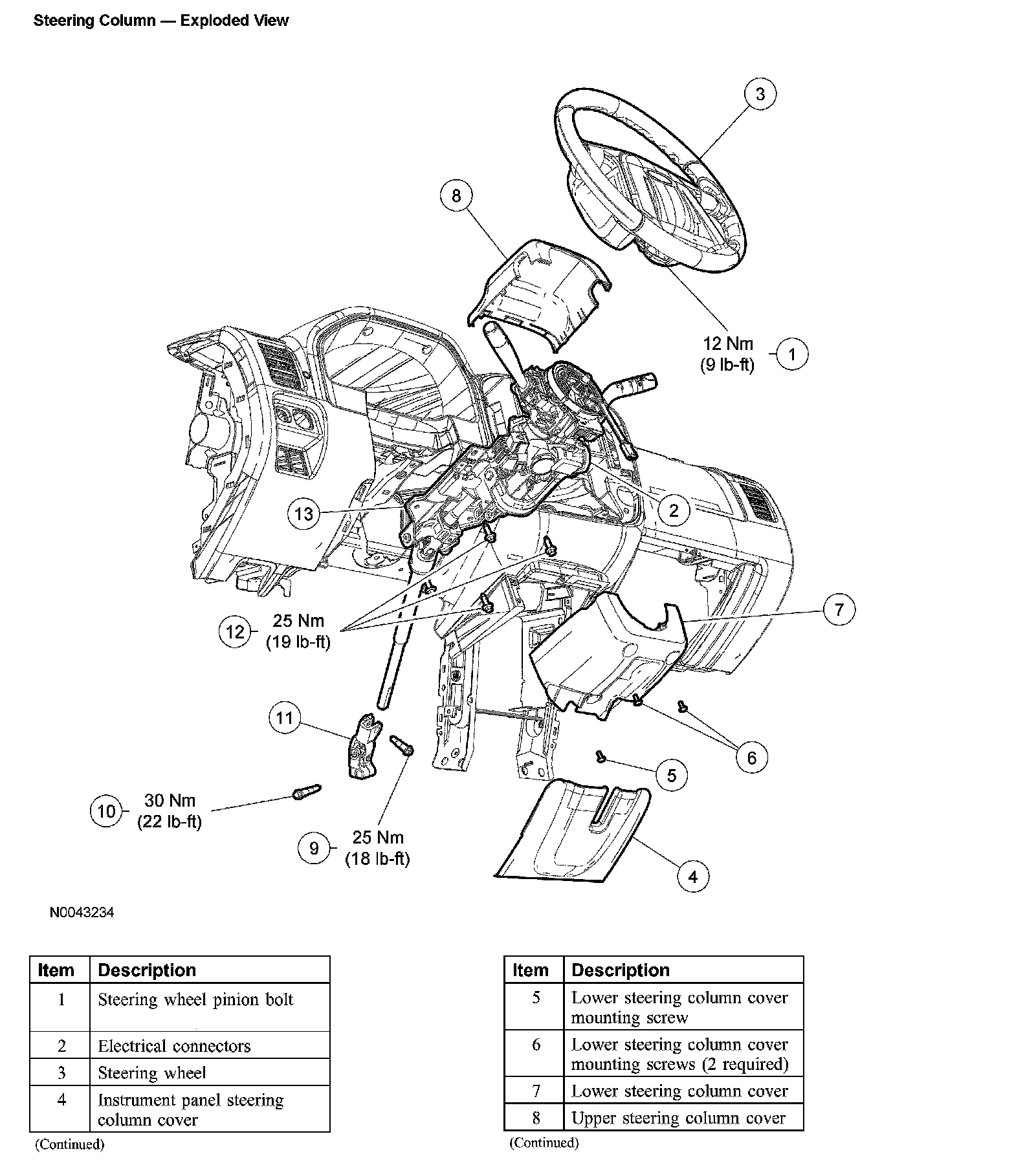

Steering Column - Exploded View
Steering Column - Exploded View
Steering Column - Exploded View (Part 1):
Steering Column - Exploded View (Part 2):
