Home >> Ford >> 2006 >> Escape 2WD L4-2.3L VIN H Hybrid >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Testing and Inspection >> Function Selector Switch

Function Selector Switch

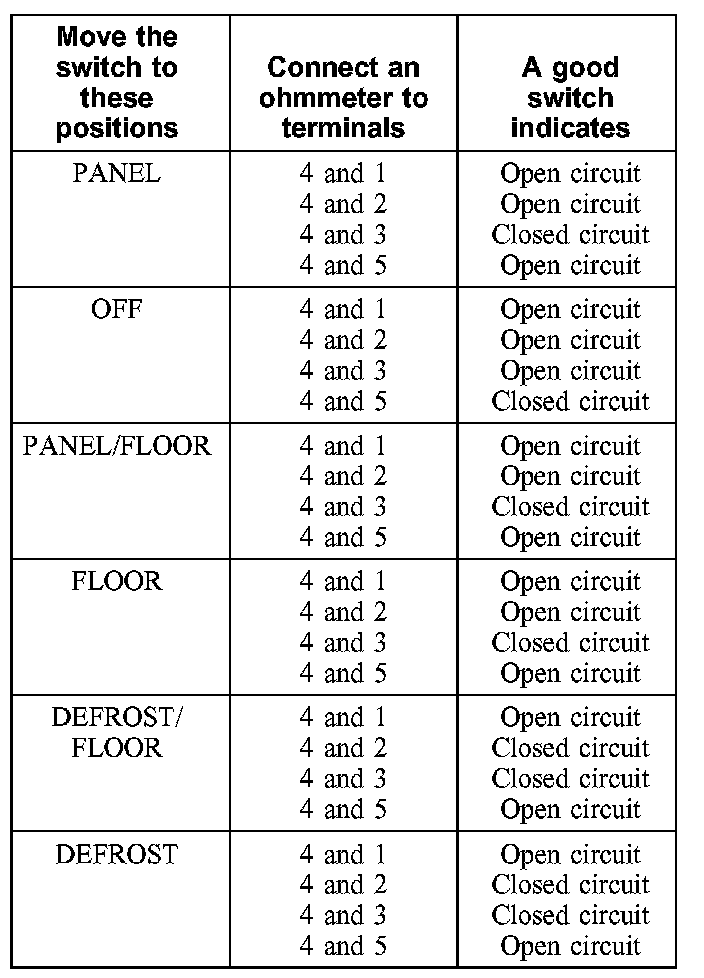

Function Selector Switch (Part 1):

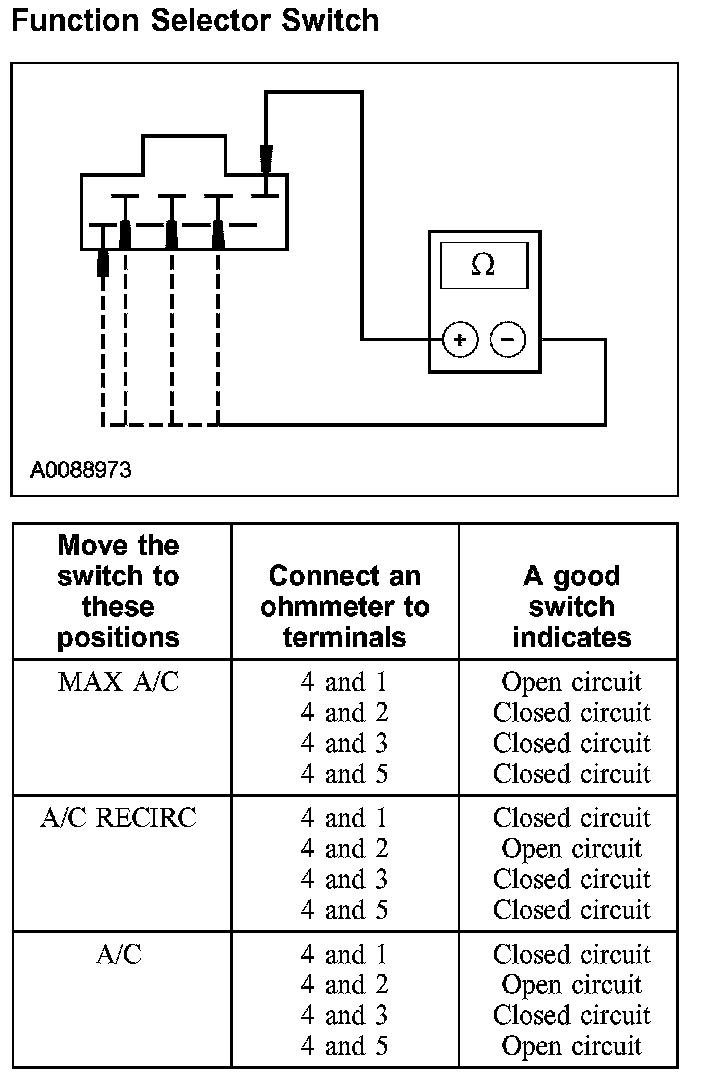

Function Selector Switch (Part 2):
