Engine Lubrication

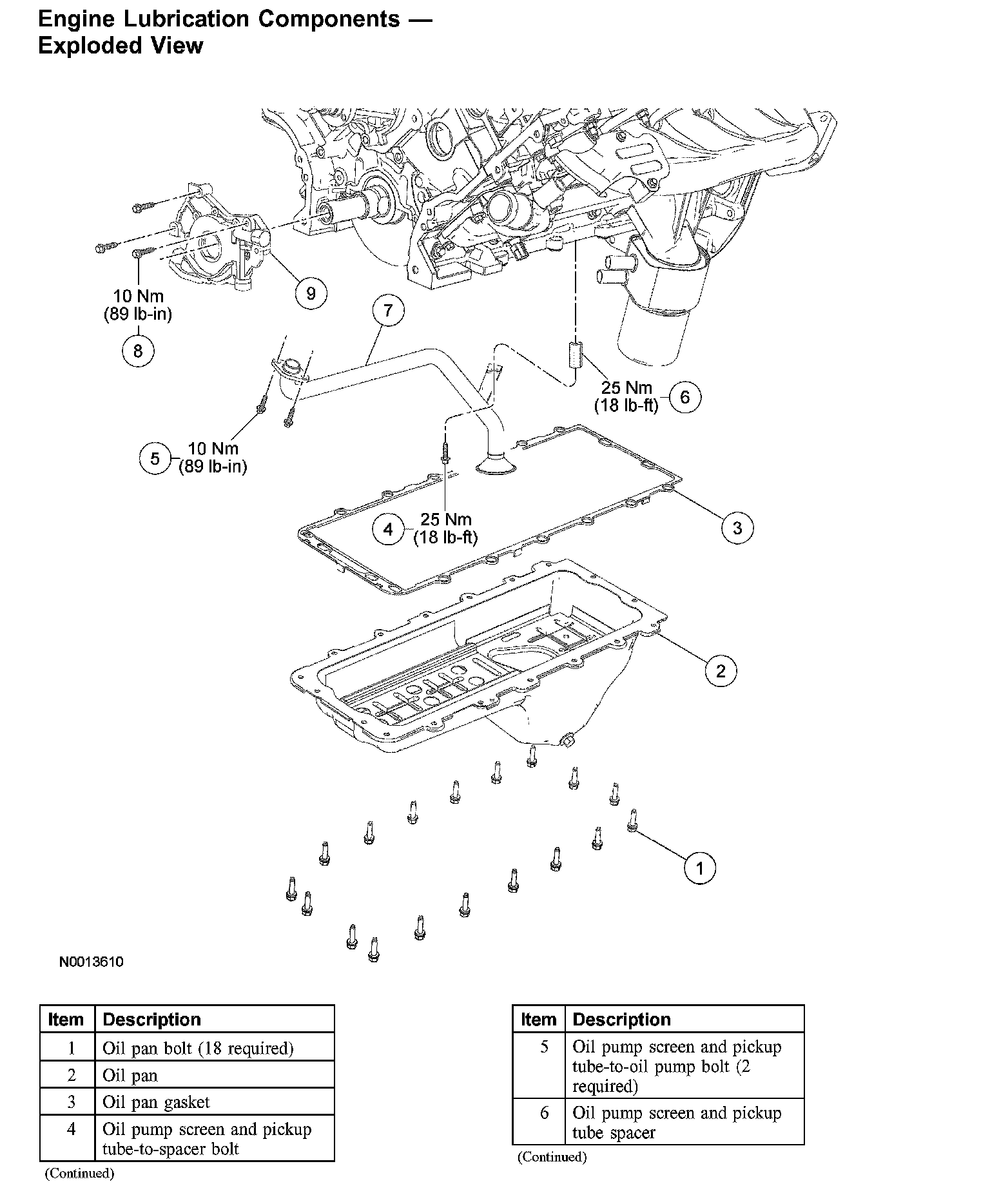

Engine Lubrication Components Exploded View

Engine Lubrication Components - Exploded View:




Engine Lubrication Components - Exploded View:
