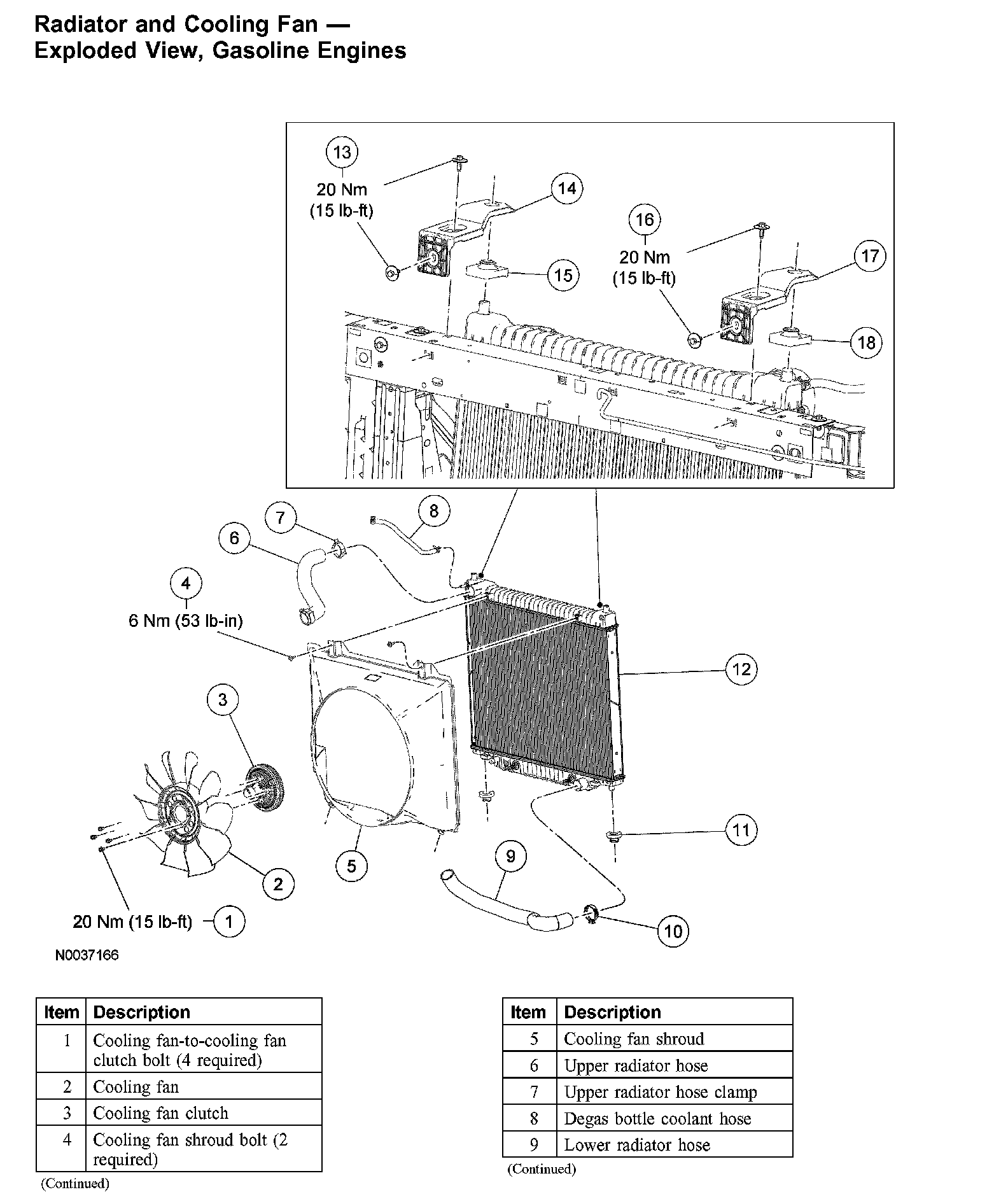

Radiator and Cooling Fan - Exploded View, Gasoline Engines
Radiator and Cooling Fan - Exploded View, Gasoline Engines:
Radiator and Cooling Fan - Exploded View, Gasoline Engines:
