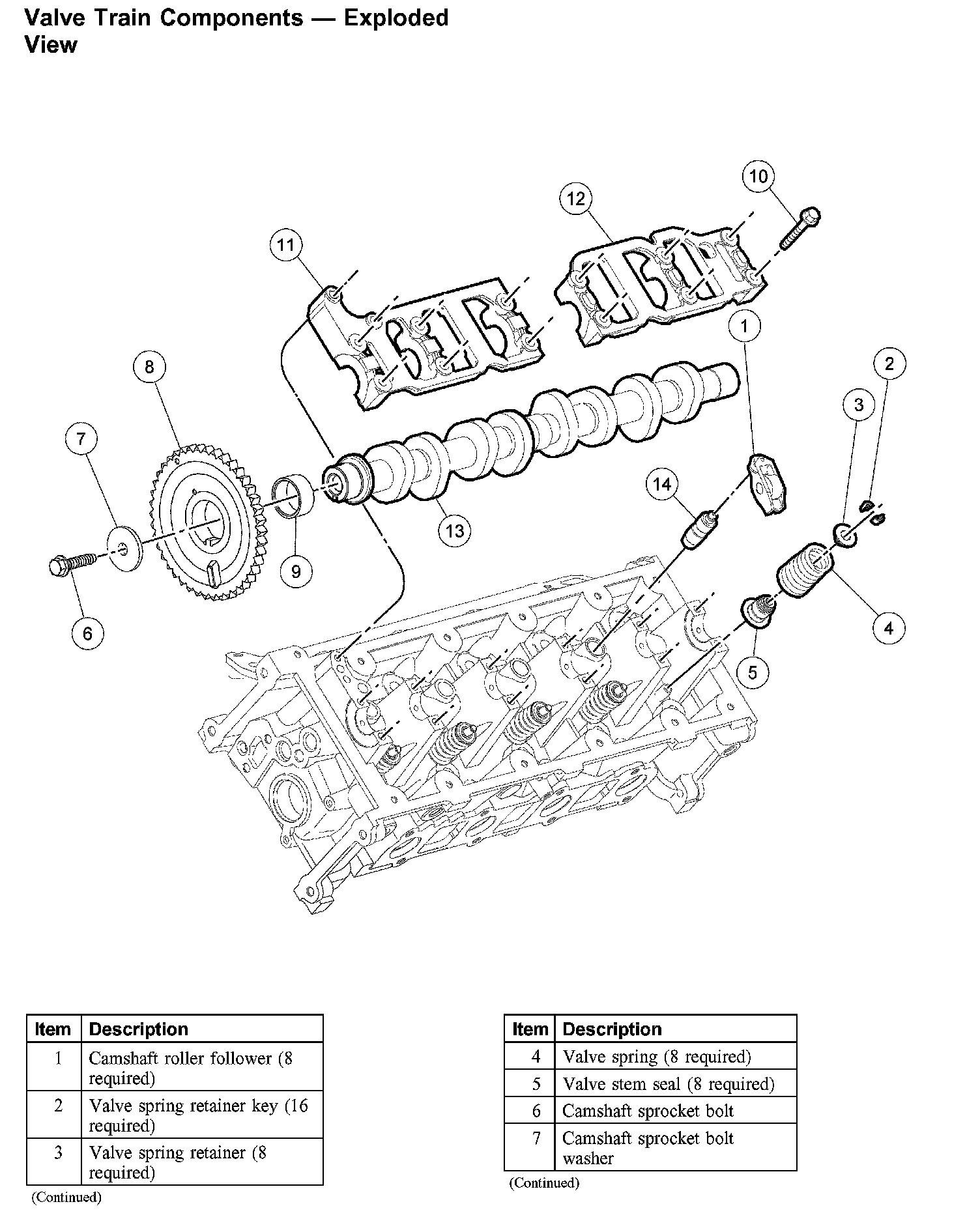

Valve Train Components - Exploded View
Valve Train Components - Exploded View:
Valve Train Components - Exploded View:
