Disc Brake System
Disc Brake System
Disc Brake System
- Exploded View

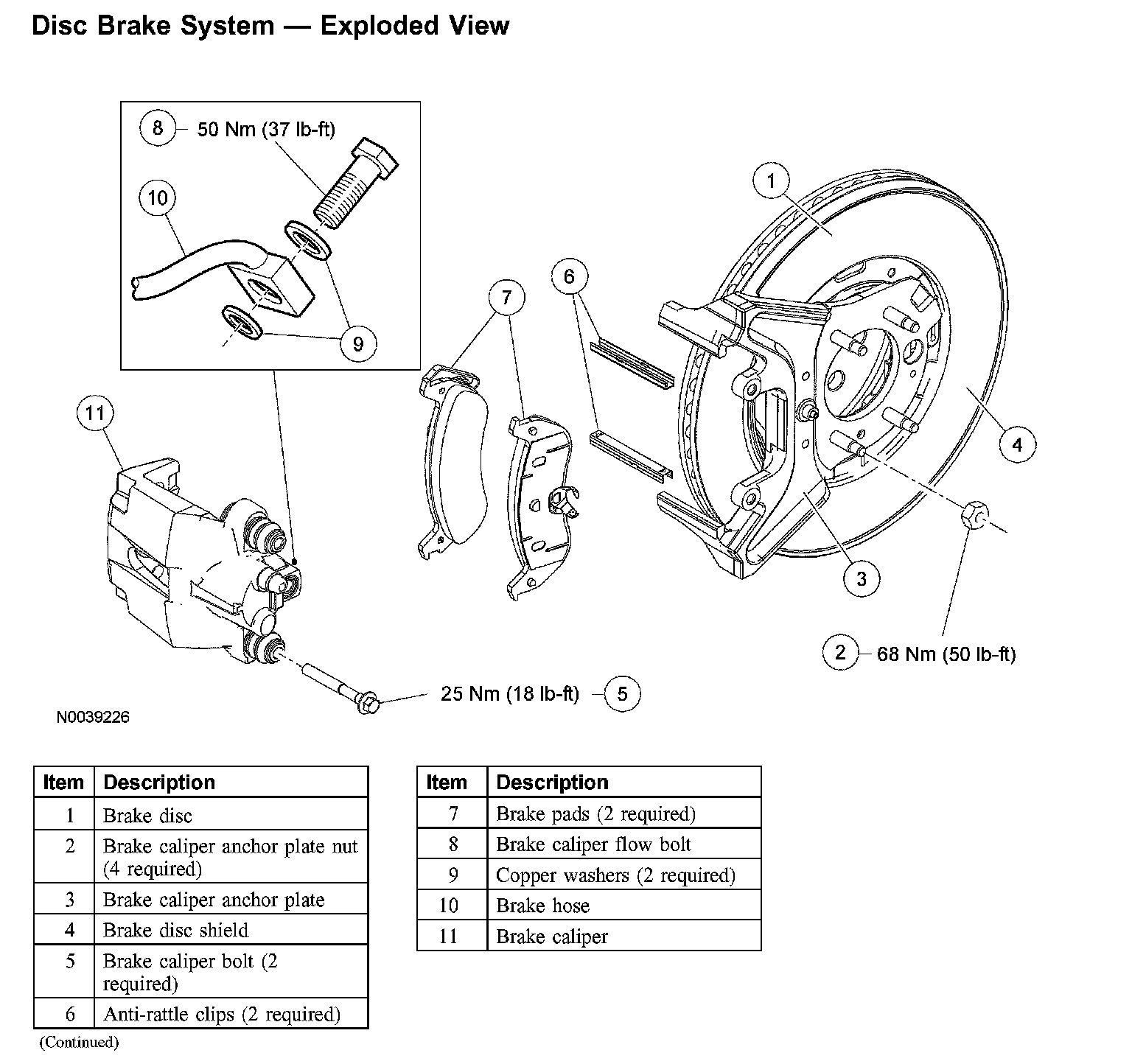

Disc Brake System - Exploded View:
