Output Shaft Speed (OSS) Sensor: Notes

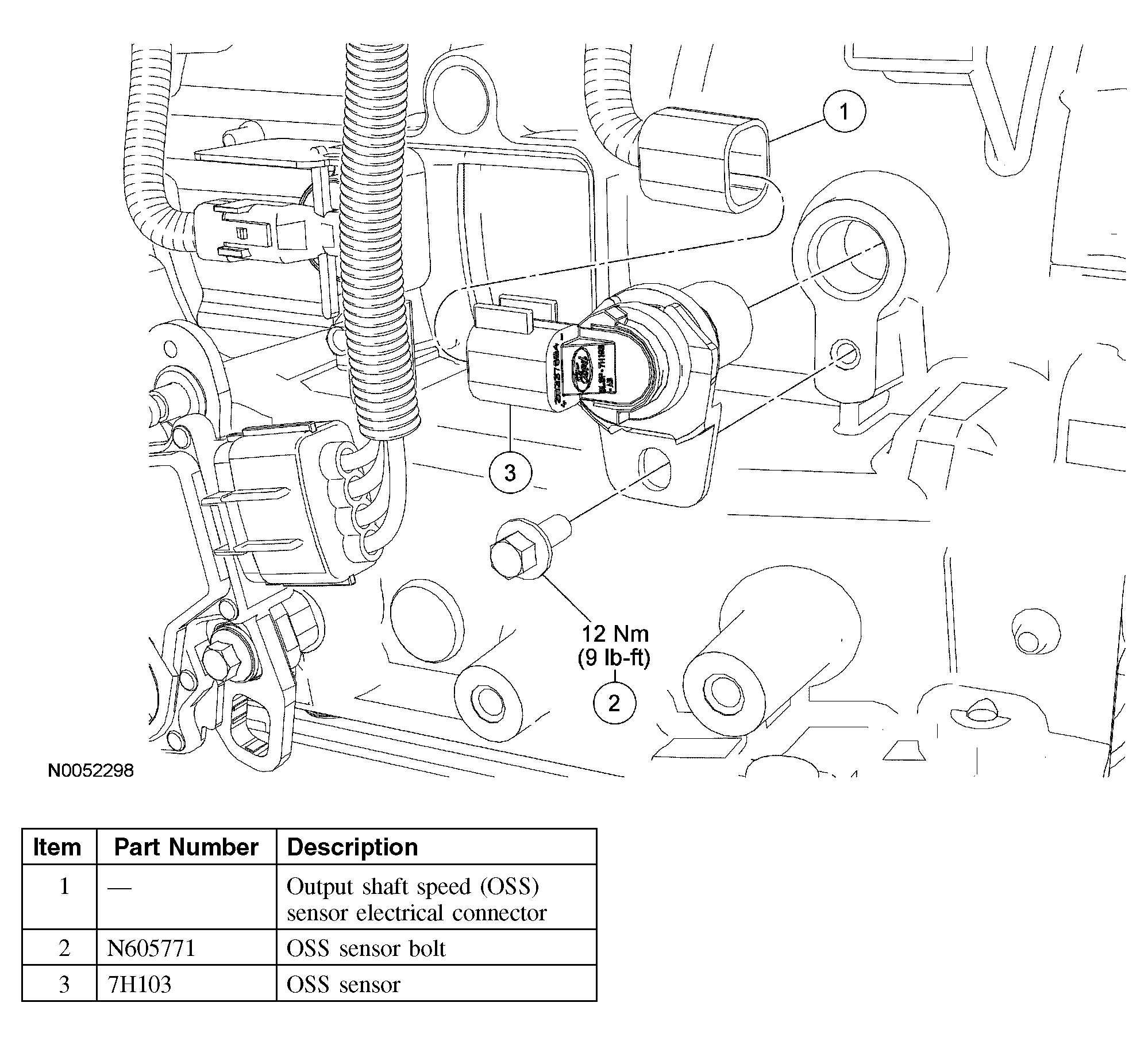

Fig 1: Identifying Output Shaft Speed (OSS) Sensor

G04584447

Courtesy of FORD MOTOR CO.
