Hydraulic Control Unit (HCU): Notes

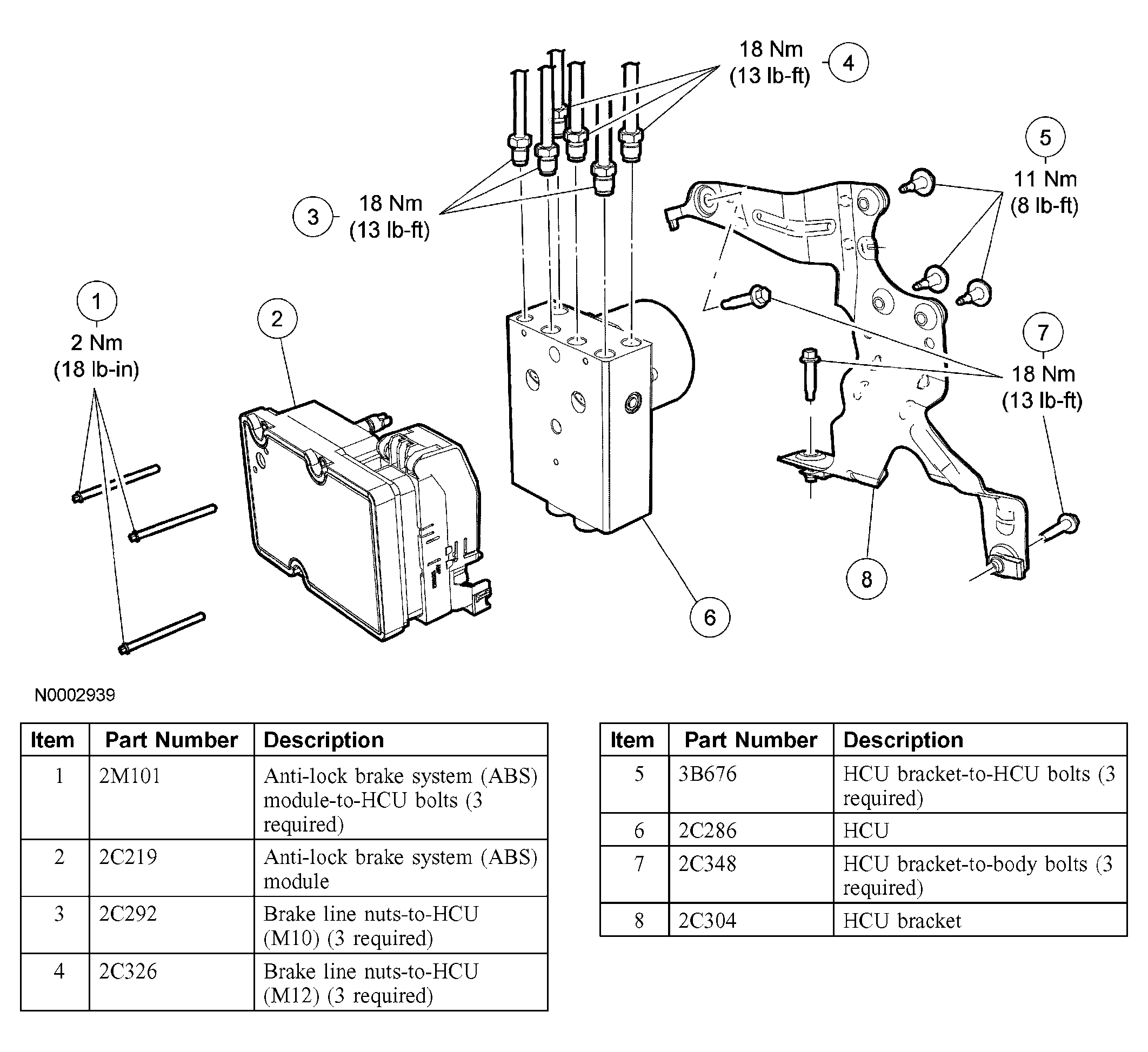

Fig 1: Removing Hydraulic Control Unit With Torque Specifications

G04007059

Courtesy of FORD MOTOR CO.
