Home >> Ford >> 2005 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations

Control Assembly: Locations

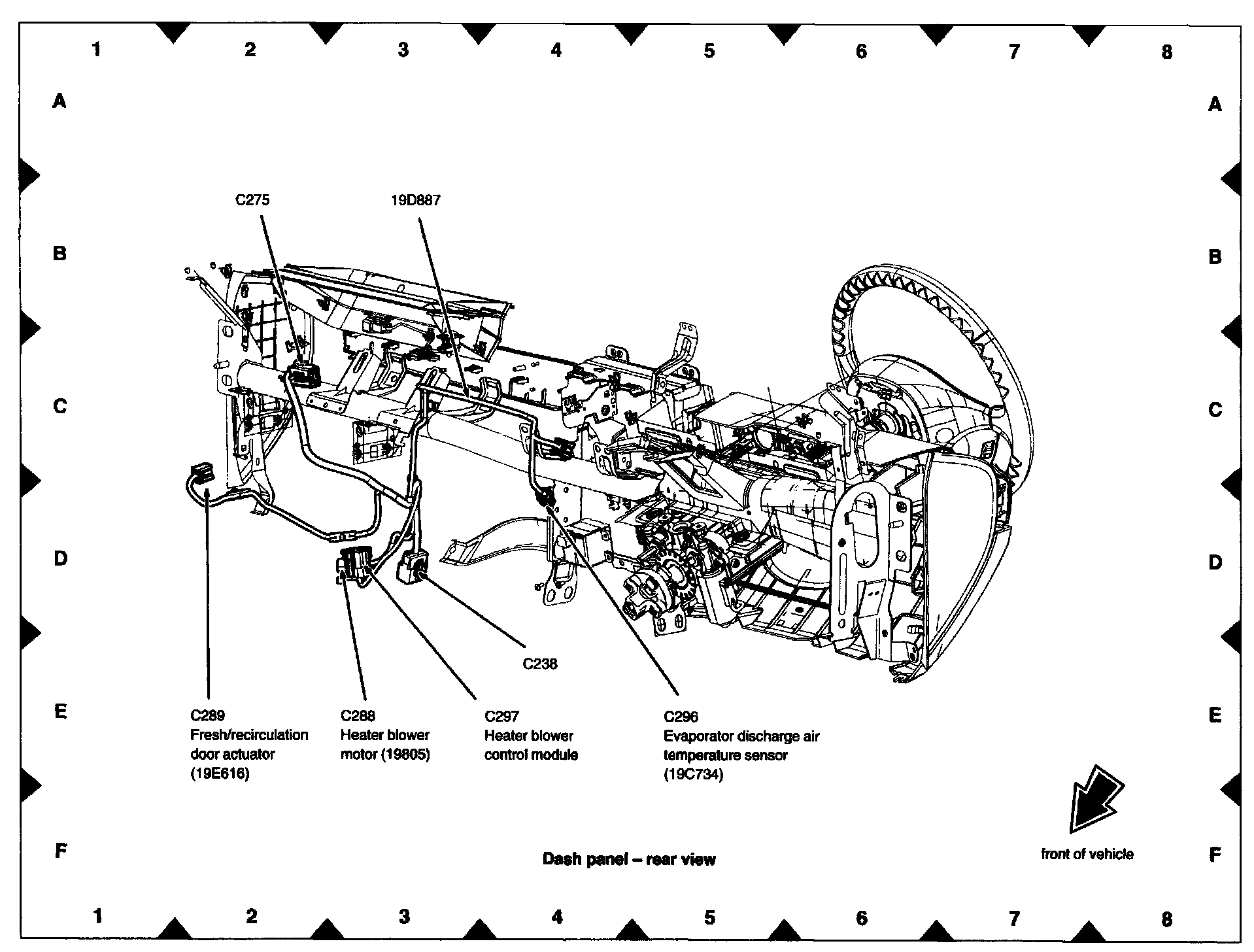

View 151-19 (Dash Panel - Rear View):
