LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
2005
>>
Thunderbird V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Disc Brake System
>>
Front
Front

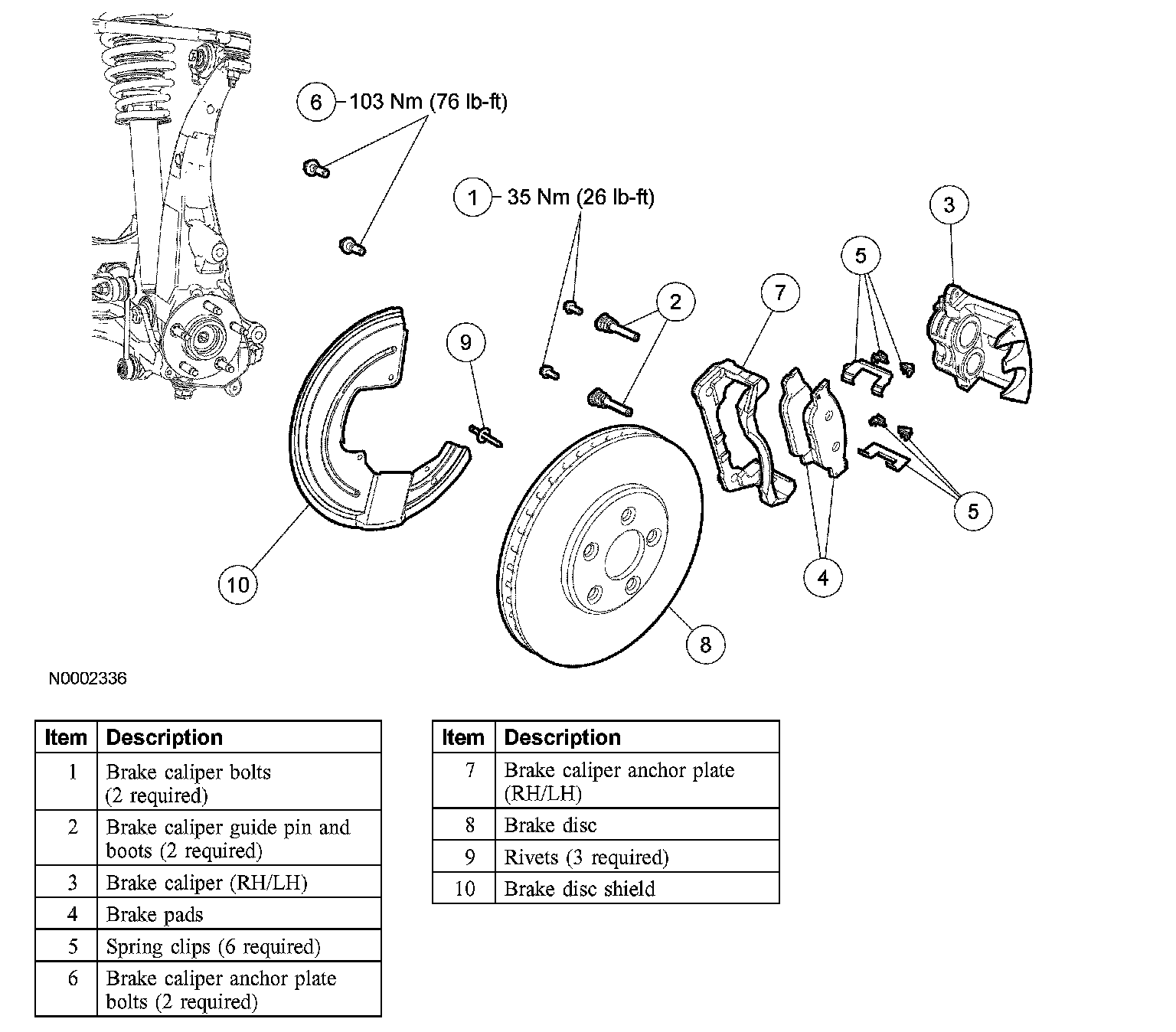

Disc Brake System - Exploded View:
