Test D: DTC U2005 - ACP Communication Error Between Integrated Control Panel and Remote Climate Control Module

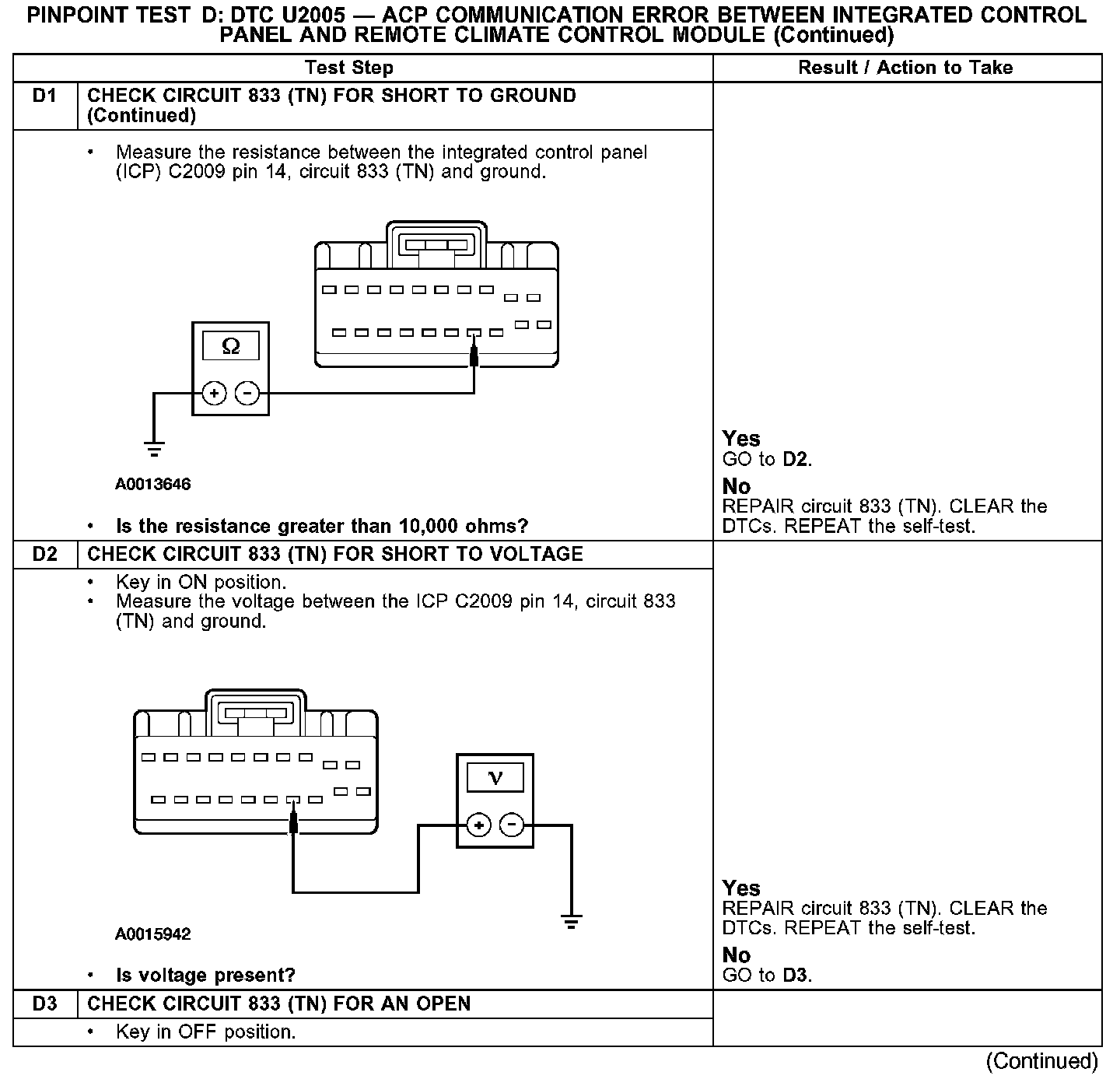

PINPOINT TEST D: DTC U2005 - ACP COMMUNICATION ERROR BETWEEN INTEGRATED CONTROL PANEL AND REMOTE CLIMATE CONTROL MODULE

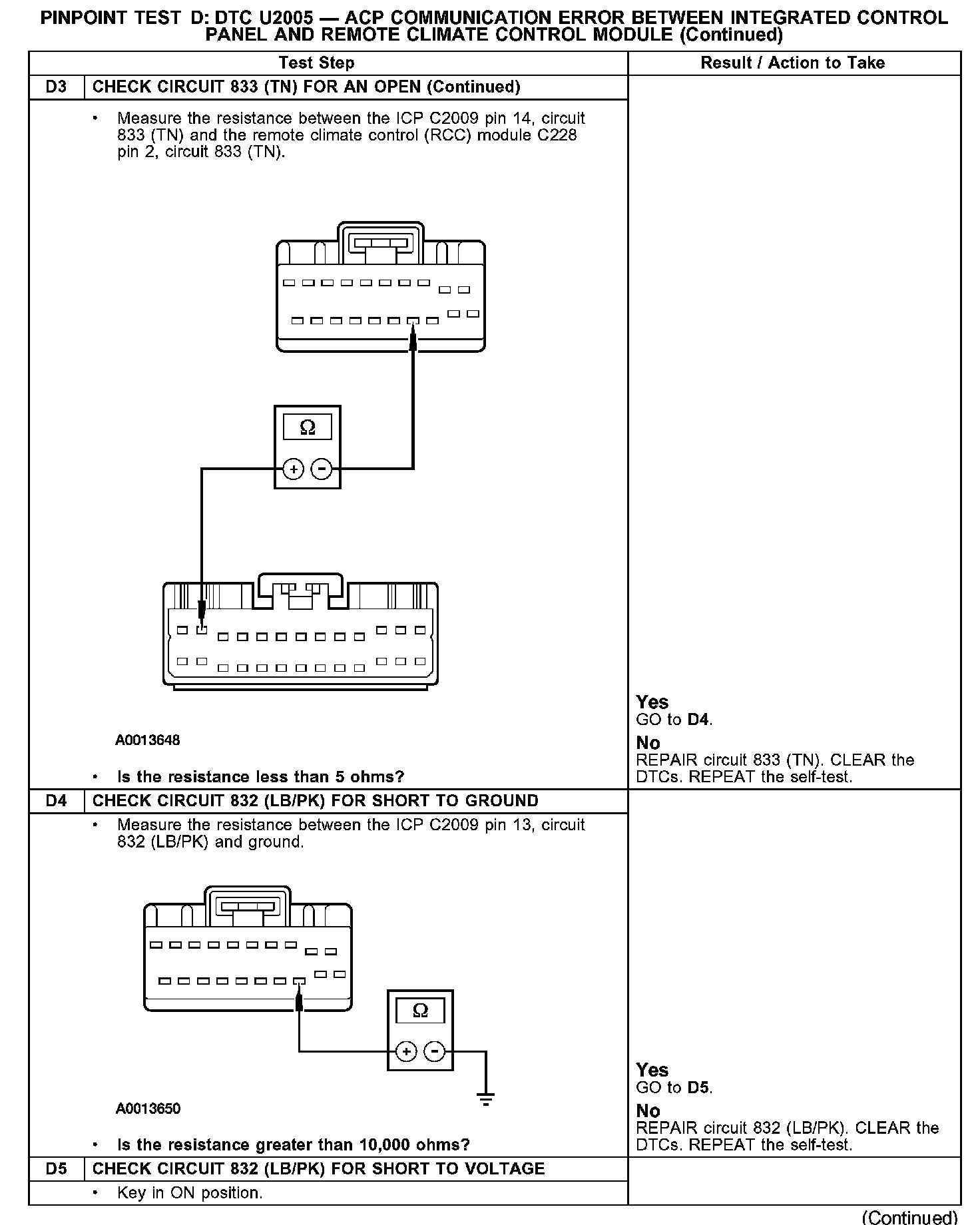

Test D3-D5:

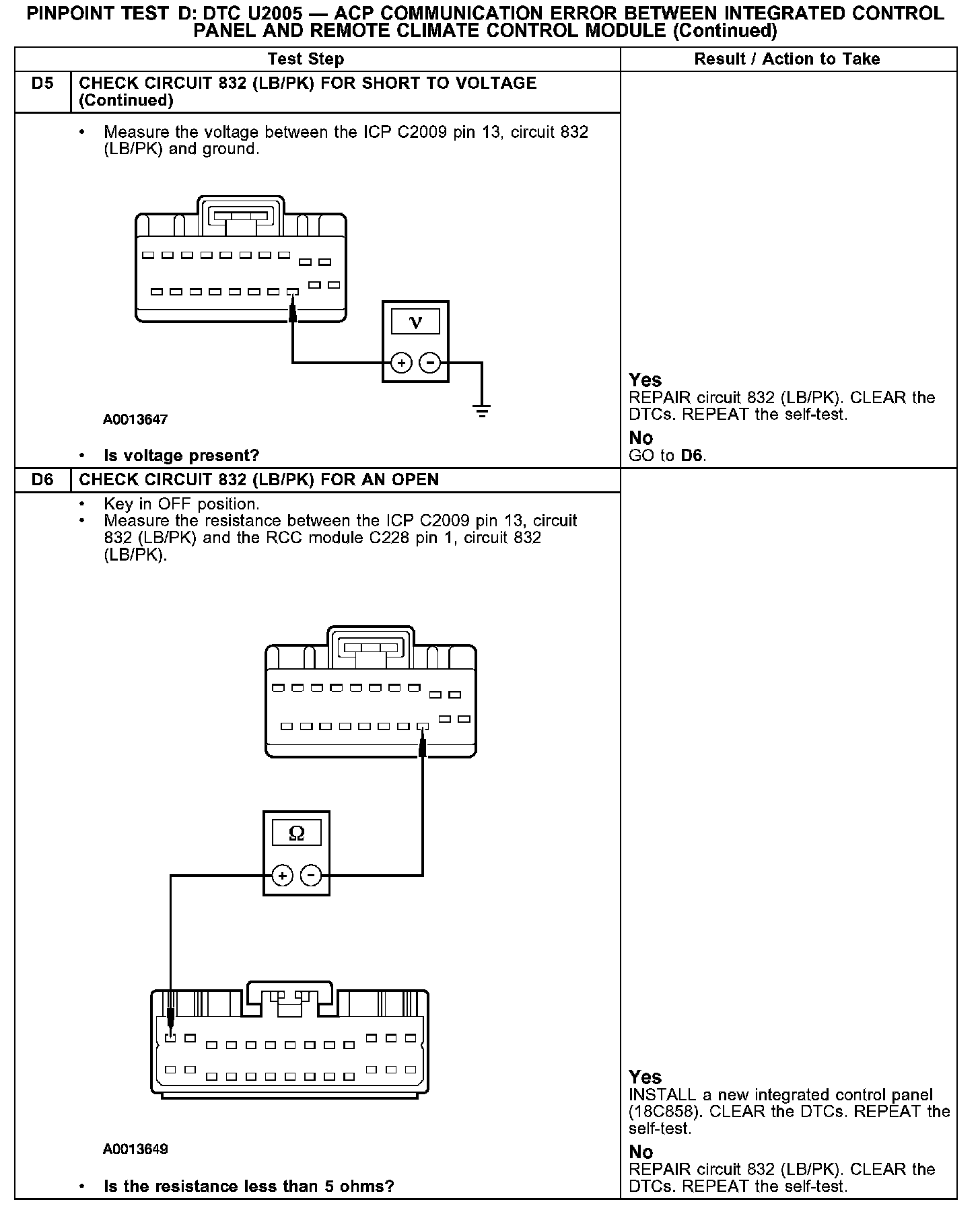

Test D5-D6:
