Removal and Installation

ENGINE COOLANT TEMPERATURE (ECT) SENSOR

Removal and Installation
1. Disconnect the battery ground cable.
2. Partially drain the cooling system.

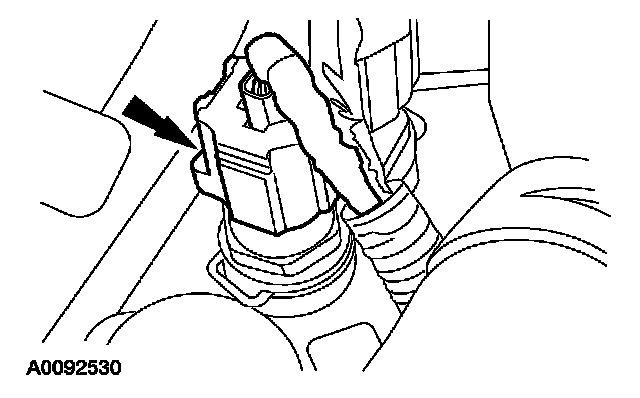

3. Disconnect the electrical connector.

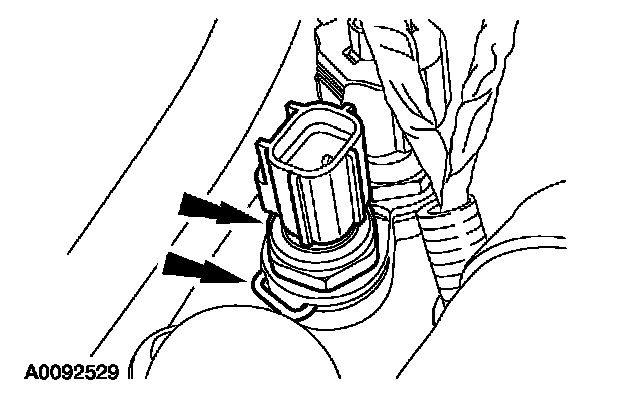

4. Remove the clip and the engine coolant temperature (ECT) sensor.
5. To install, reverse the removal procedure.
