Home >> Ford >> 2005 >> Ranger 2WD V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Cylinder Block Lower

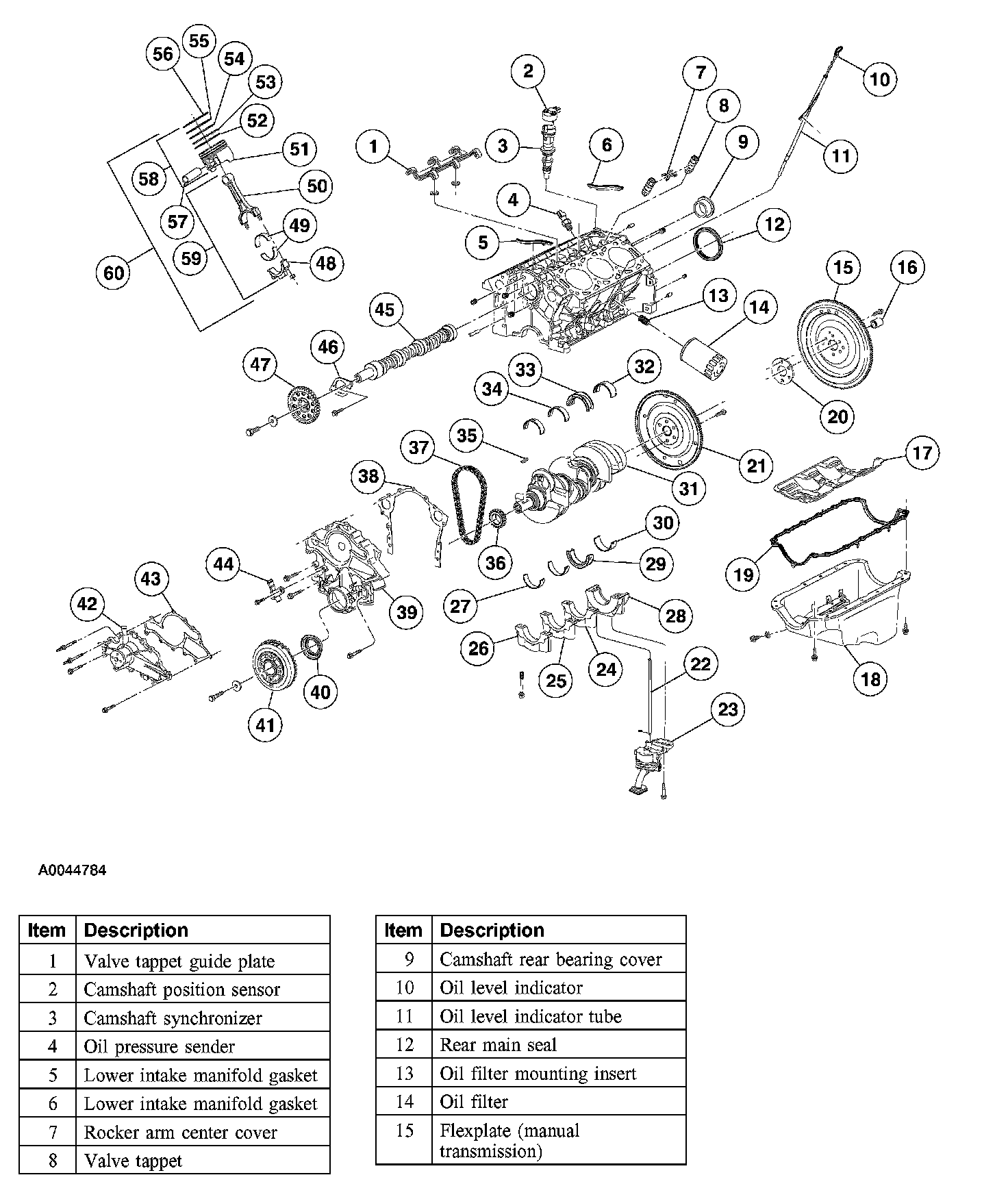

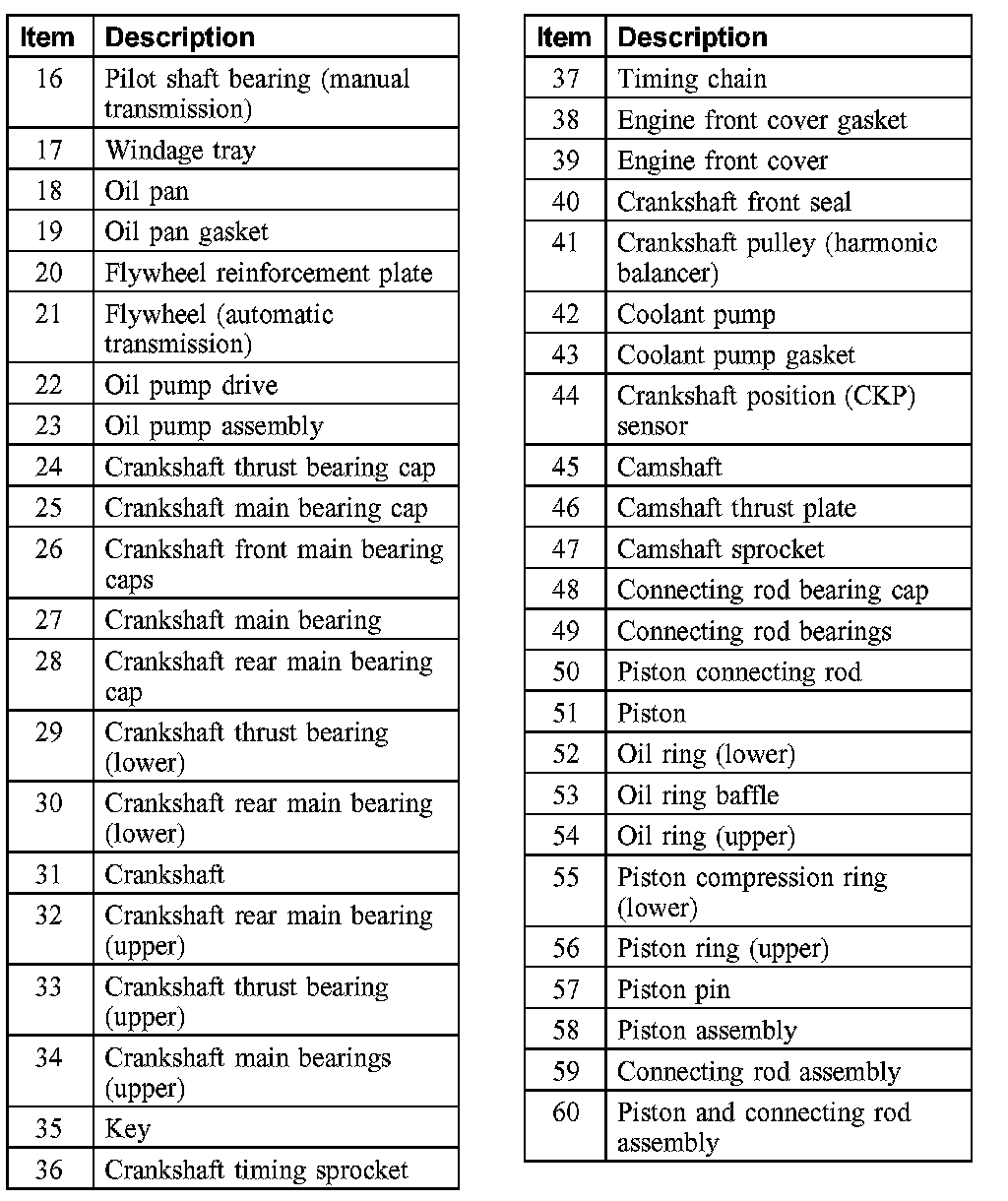

Cylinder Block Lower
