Mustang V8-4.6L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Exhaust System
Exhaust System
Exhaust System

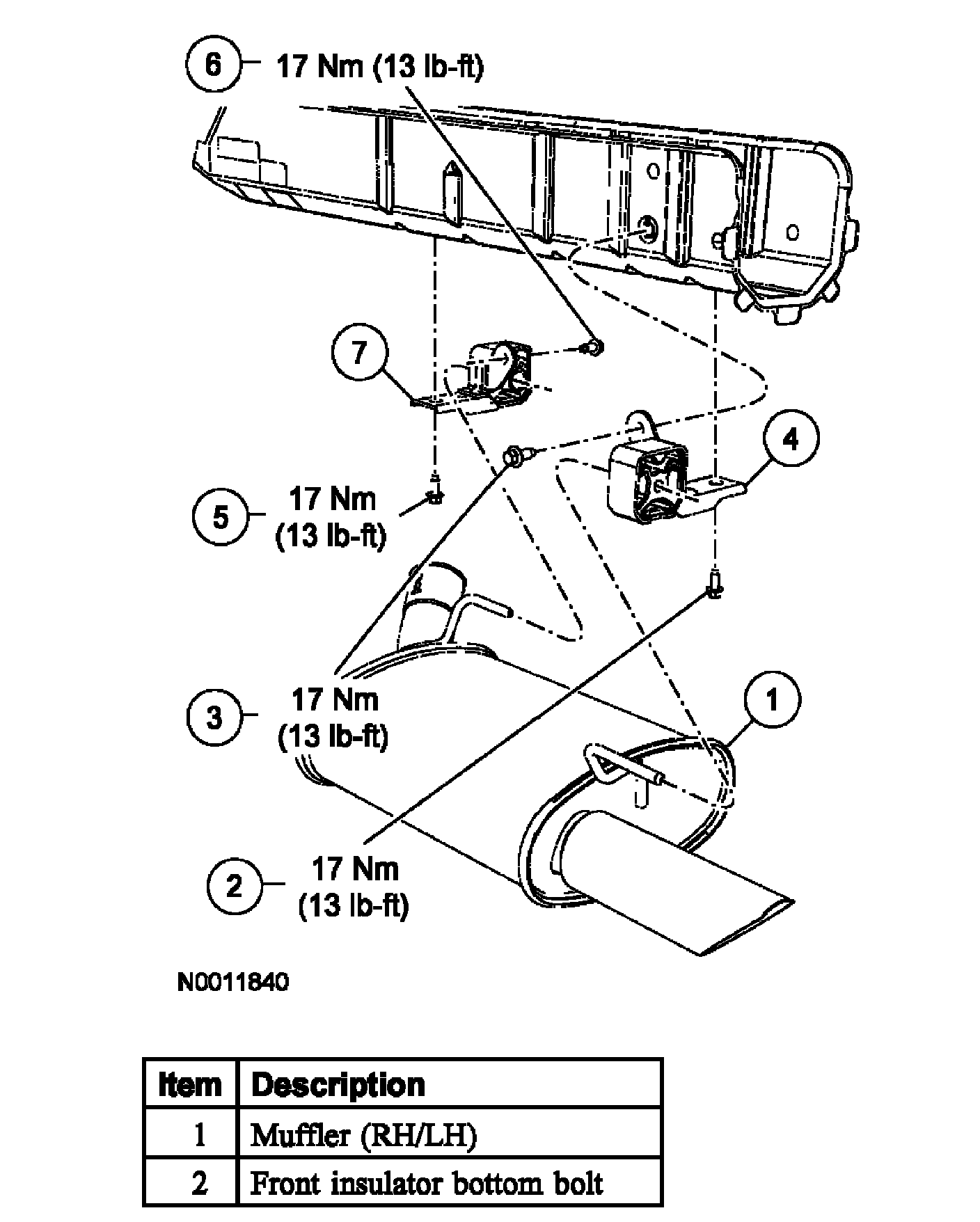

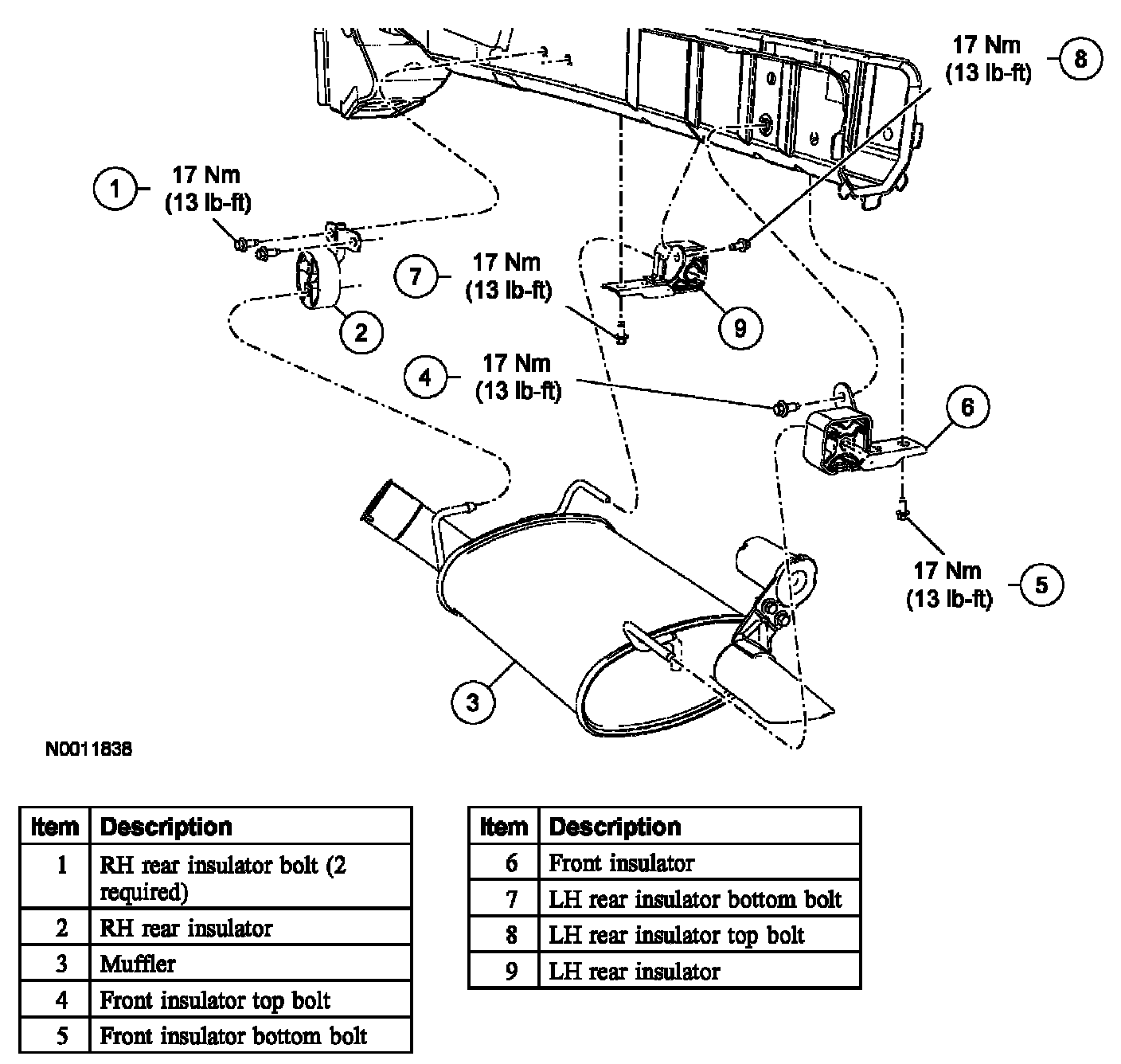

Exploded View

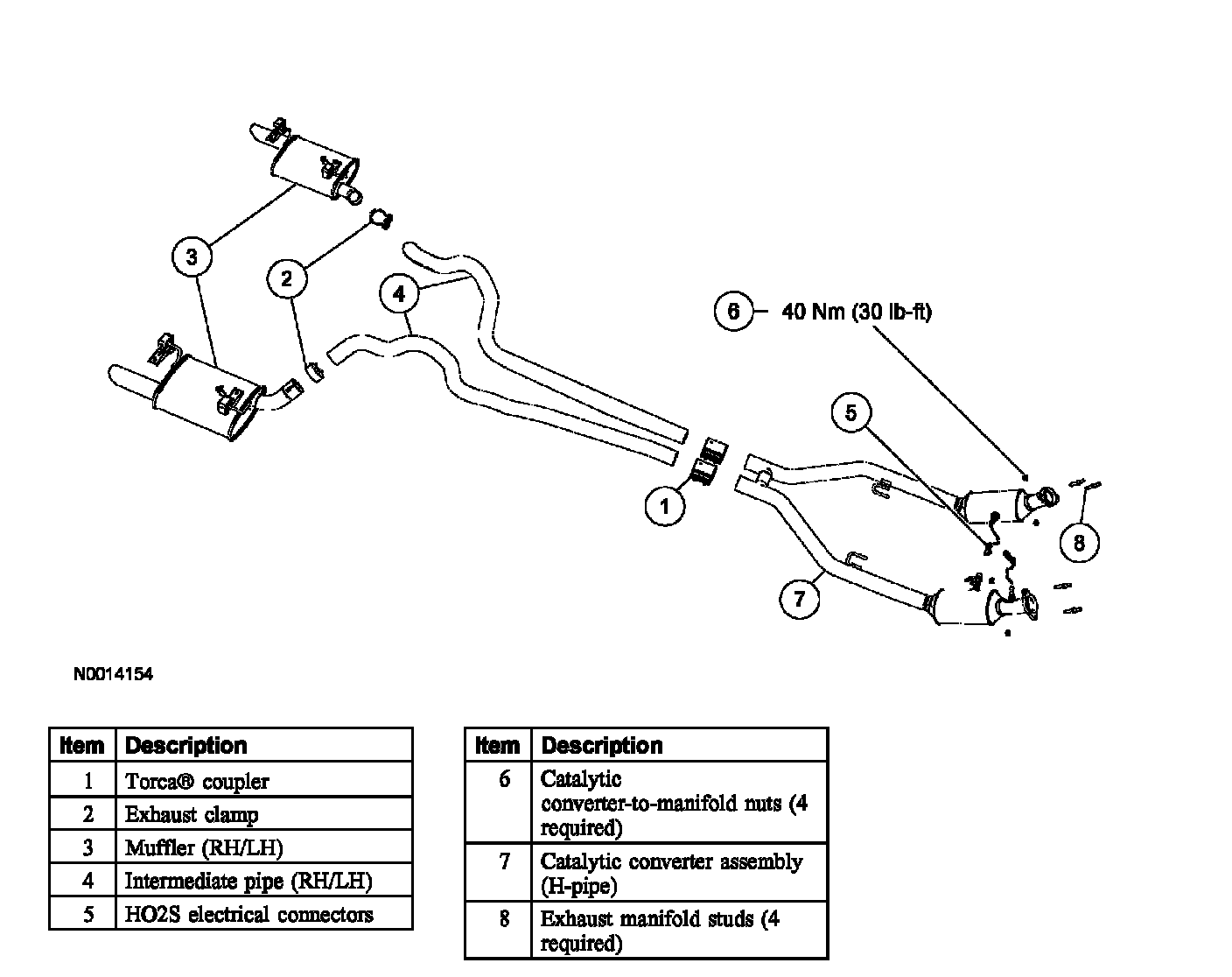

Exhaust System
- 4.0L

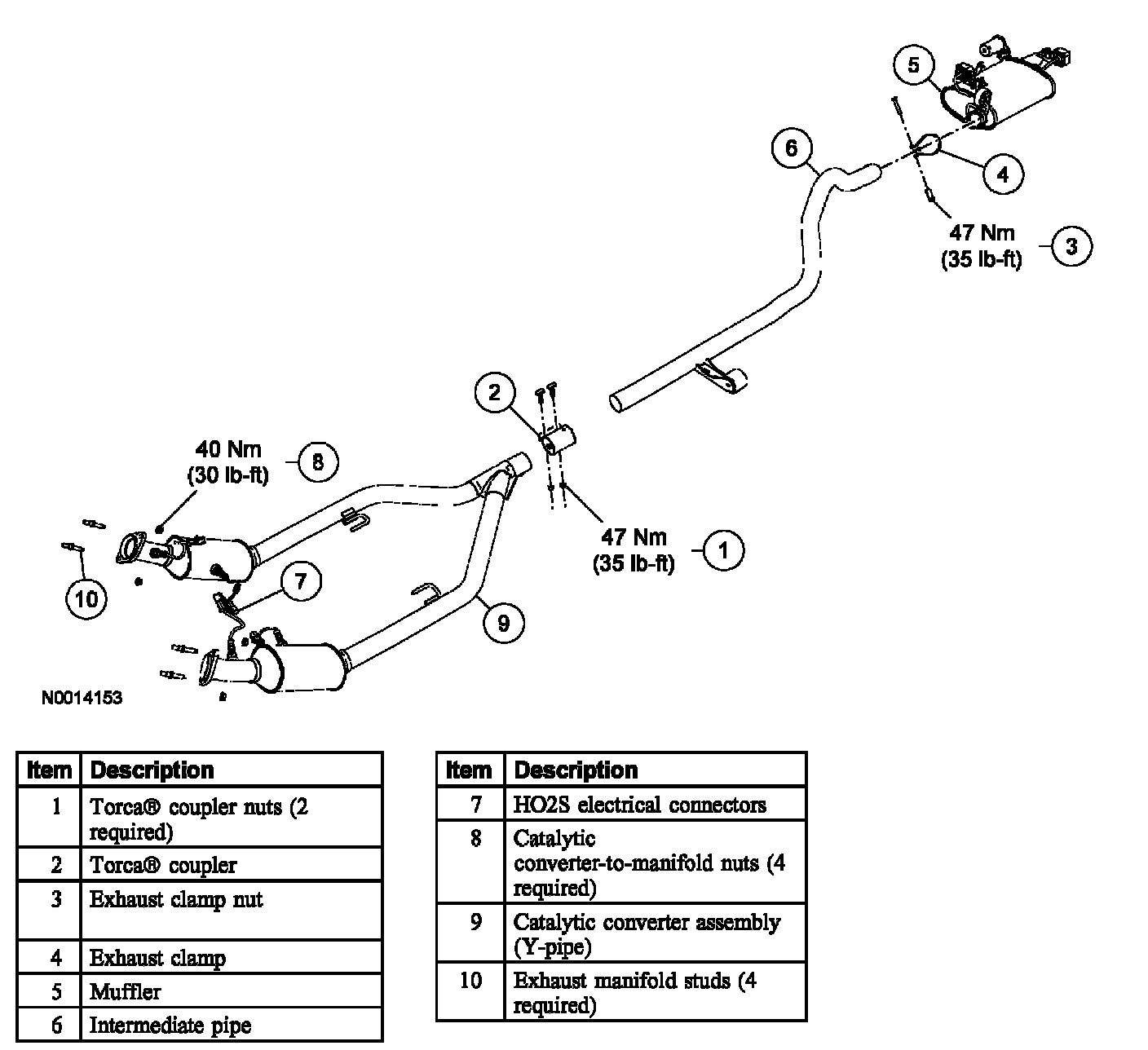

Exhaust System
4.6L
