Engine
>>
System Diagram
>>
Engine Component View
Engine Component View
Engine Component View

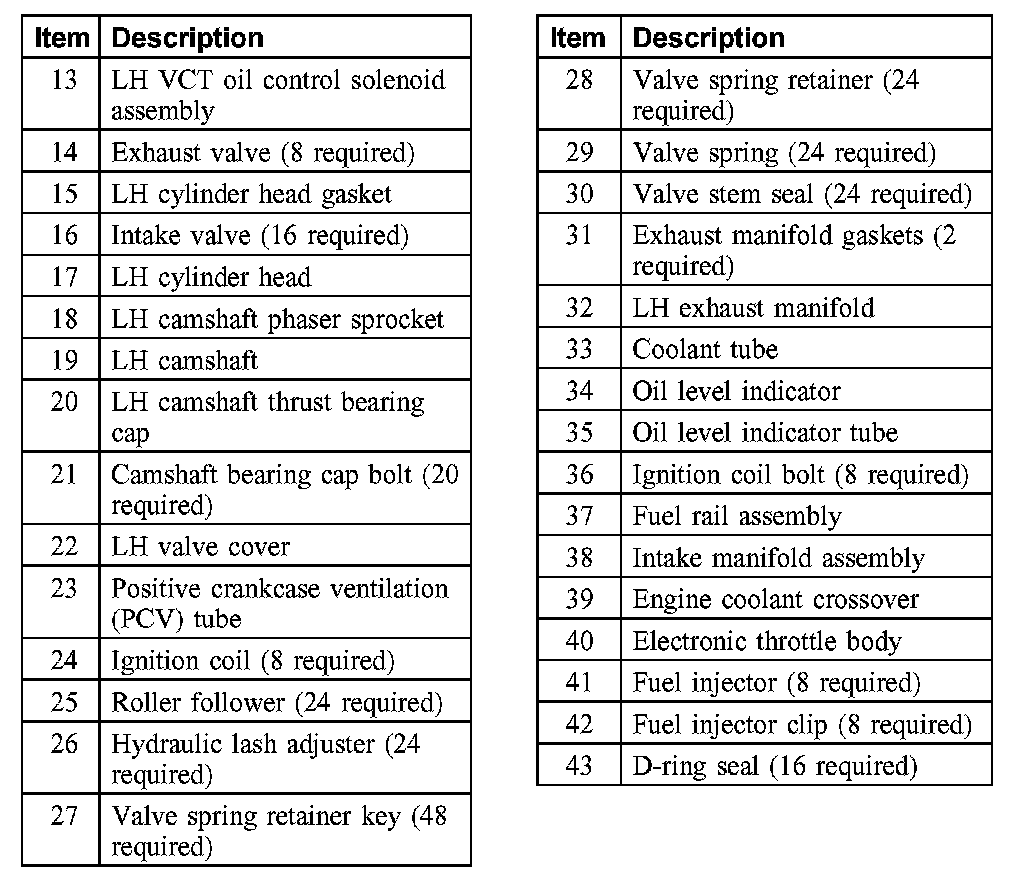

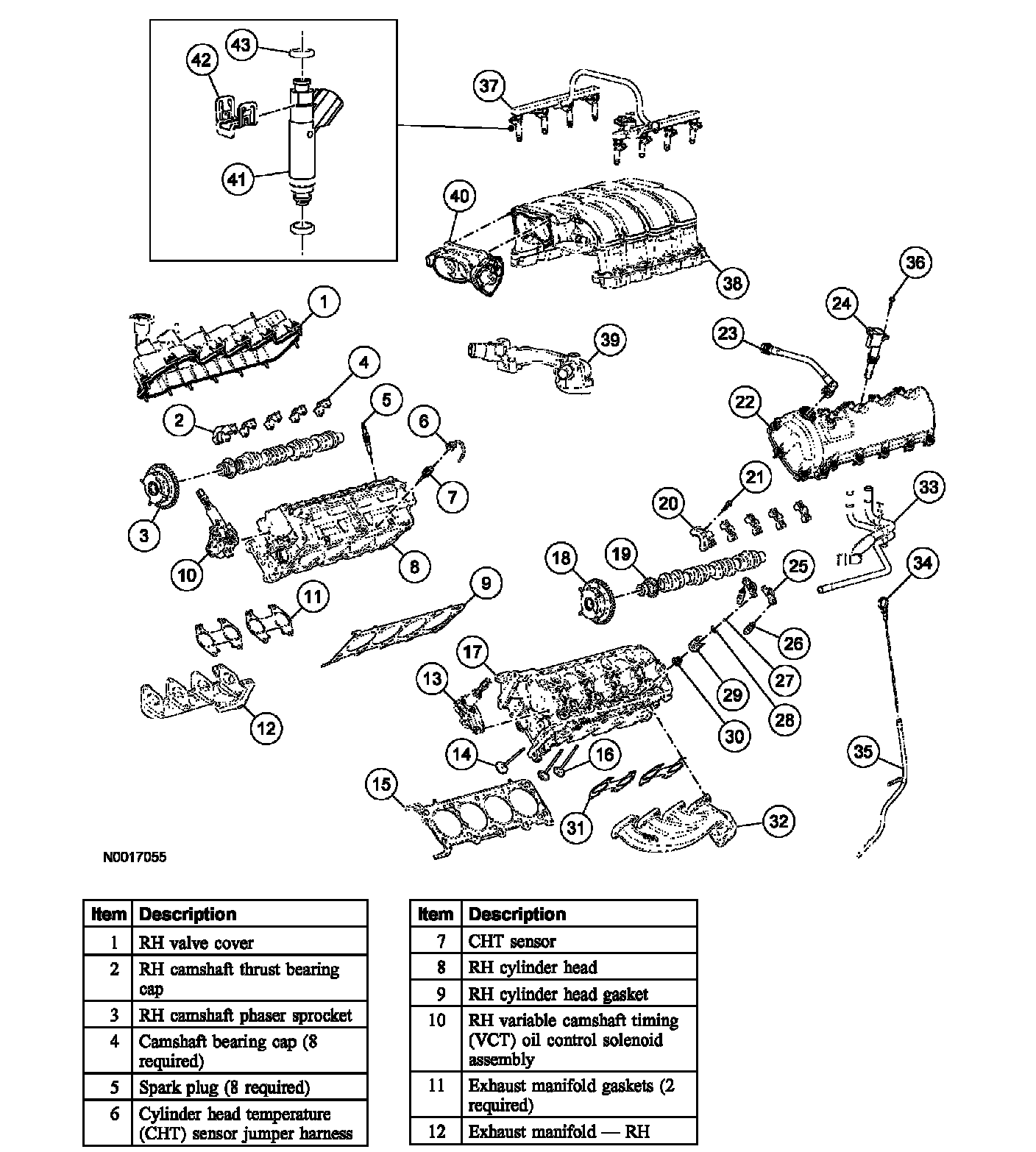

Engine Upper End

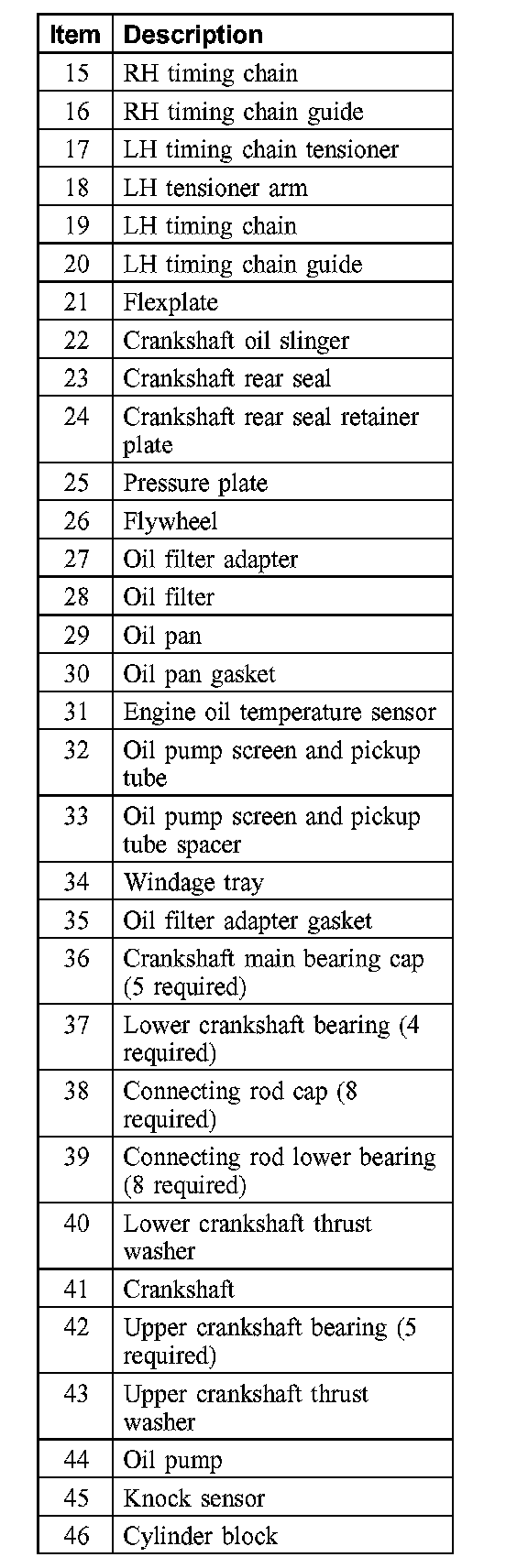

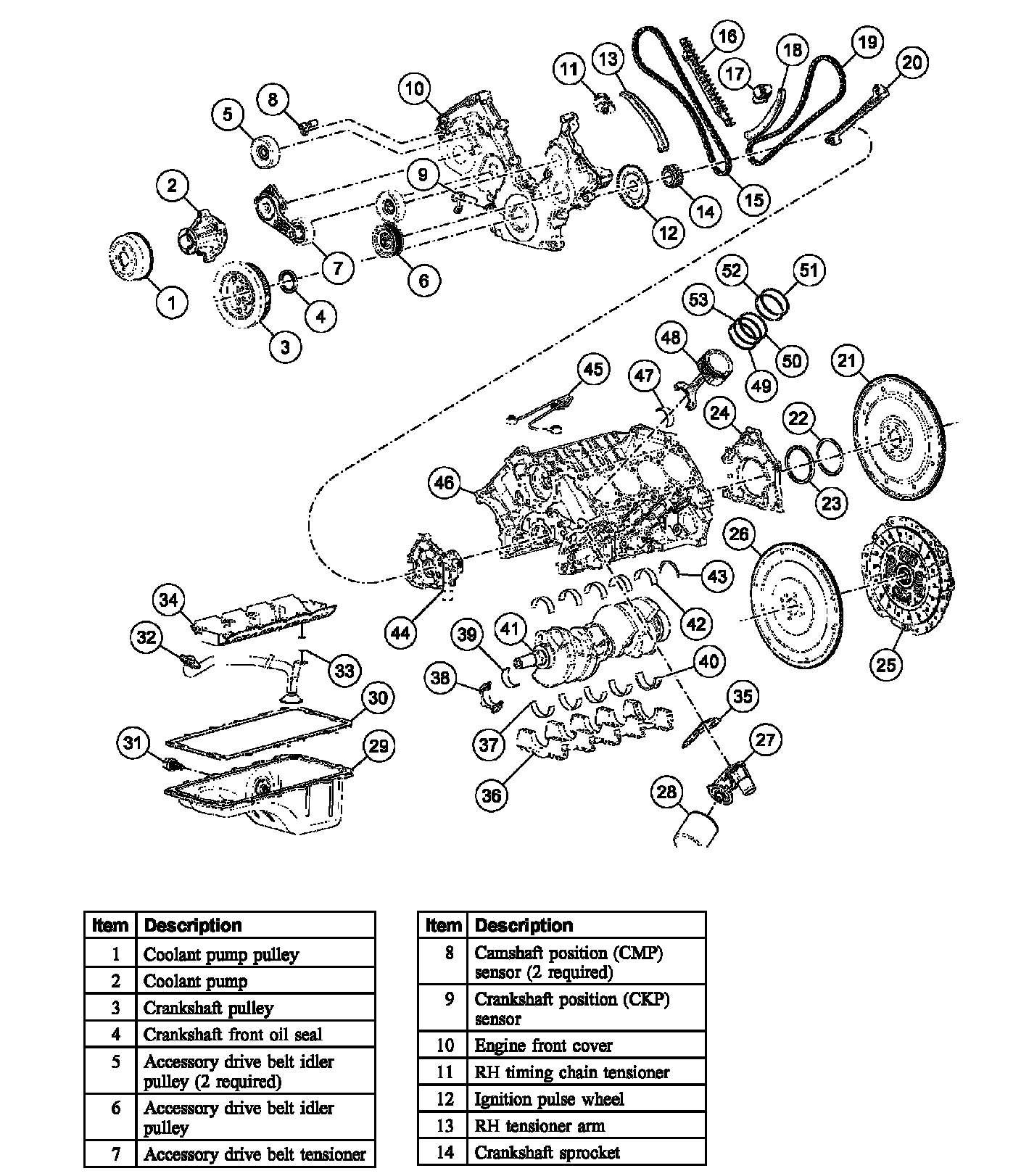

Engine Lower end
