Home >> Ford >> 2005 >> Mustang V8-4.6L VIN H >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Disc Brake System >> Front

Front

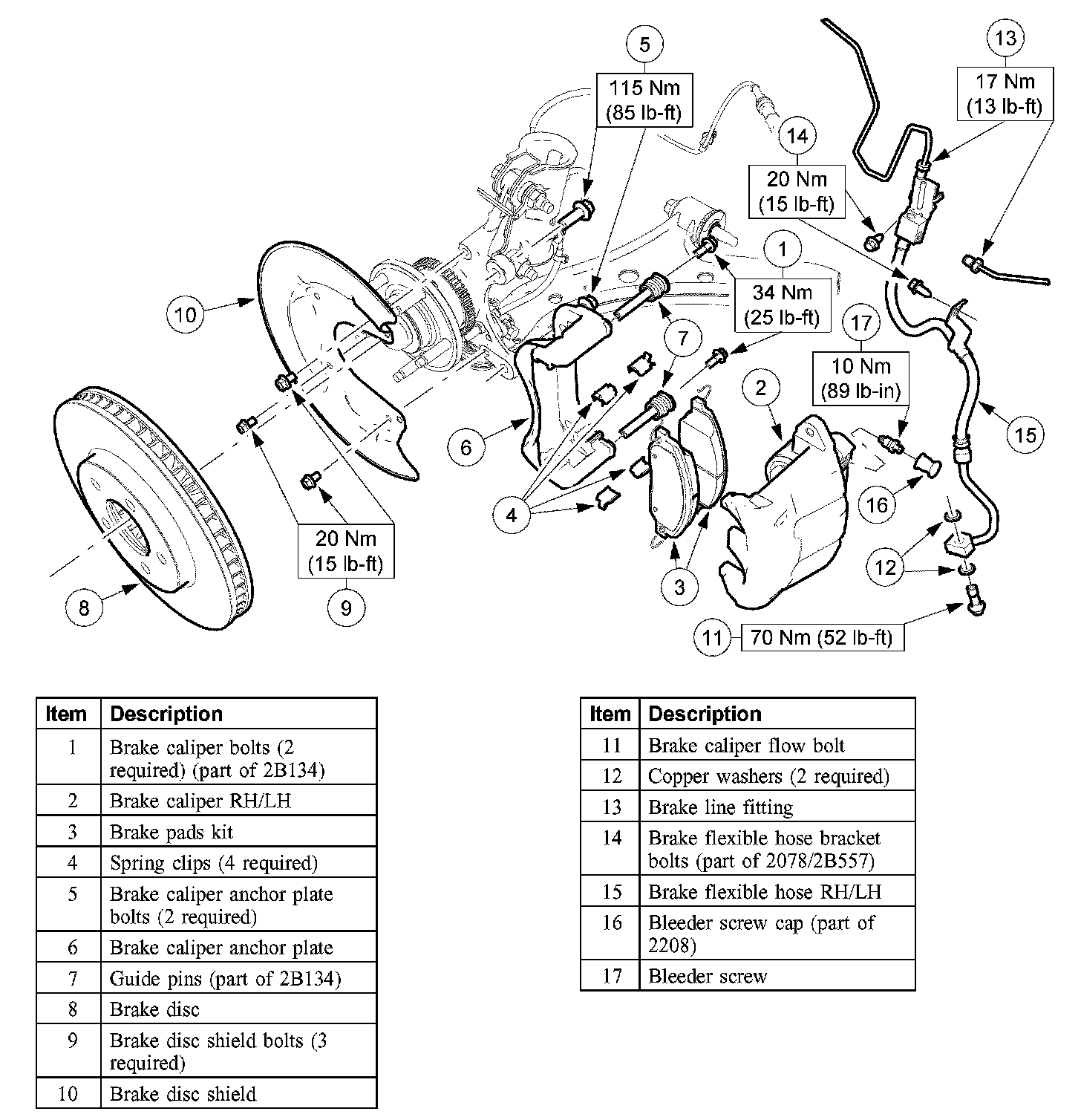

Disc Brake System Exploded View
