Home >> Ford >> 2005 >> Mustang V6-4.0L VIN N >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Engine Lubrication

Engine Lubrication

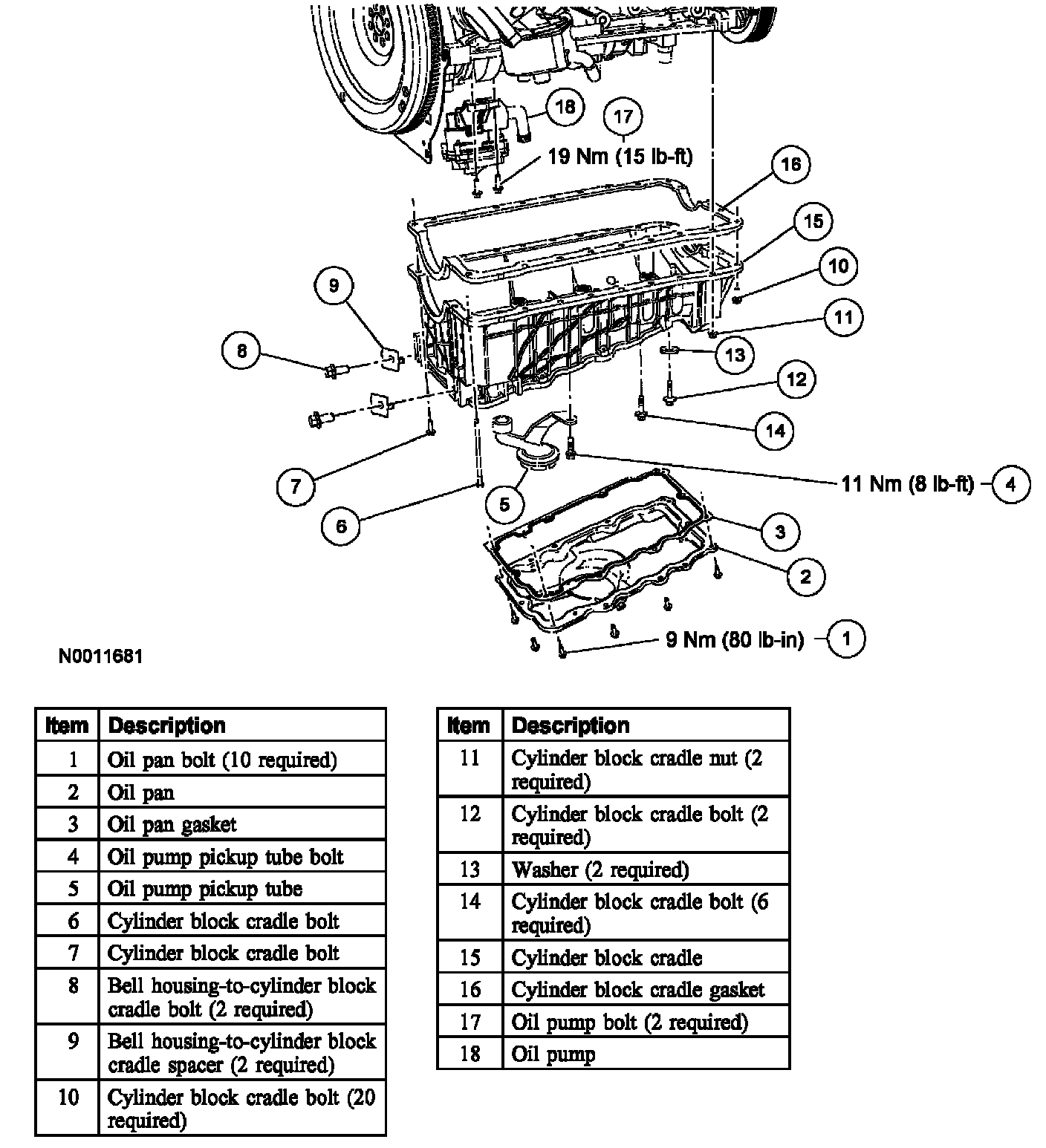

Engine Lubrication Components Exploded View
