Wheel Speed Sensor - Front: Notes

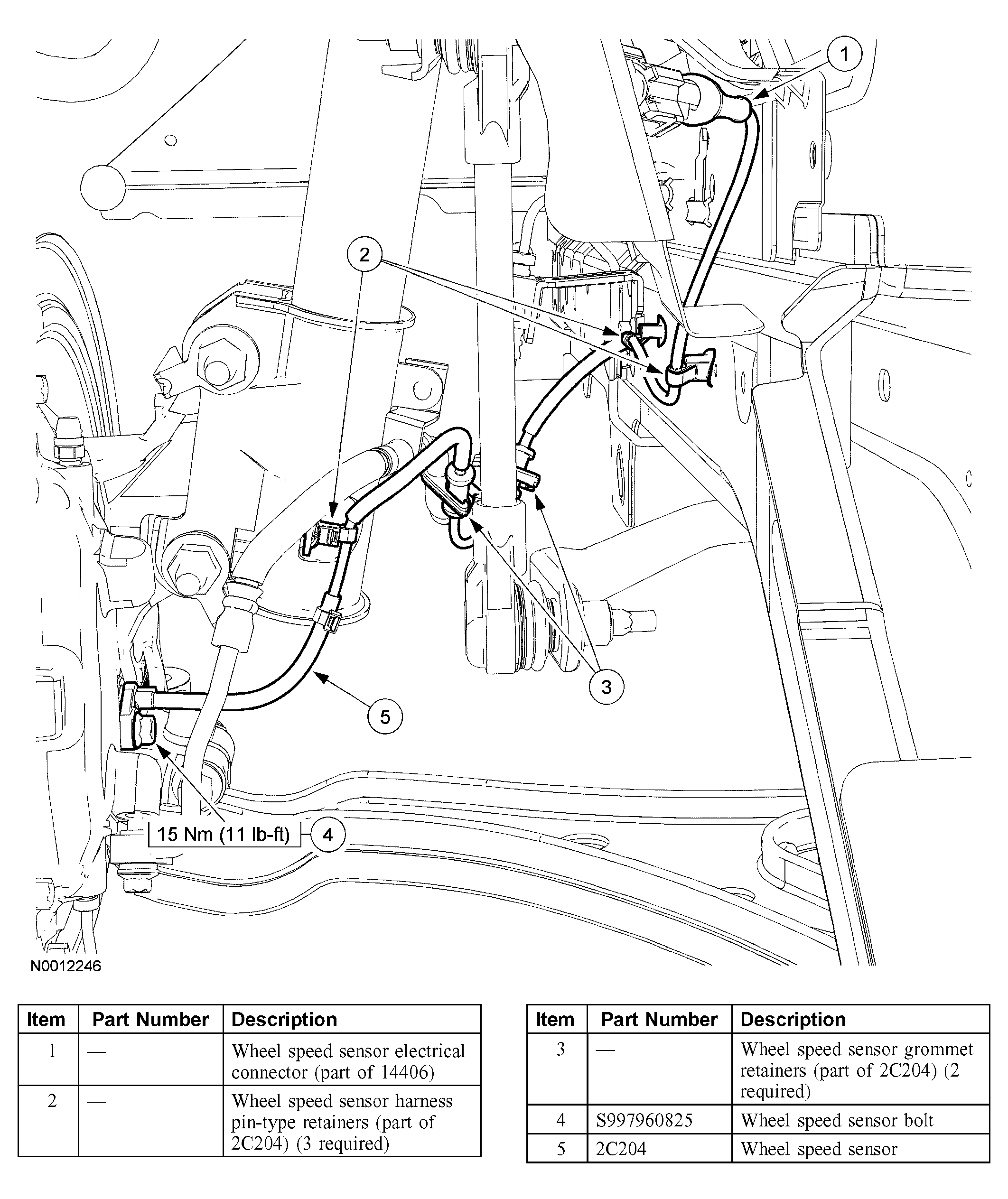

Fig 1: Identifying Components Of Wheel Speed Sensor - Front

G03983481

Courtesy of FORD MOTOR CO.
