Ford
>>
2005
>>
Freestyle AWD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Steering
>>
System Diagram
System Diagram
Power Steering

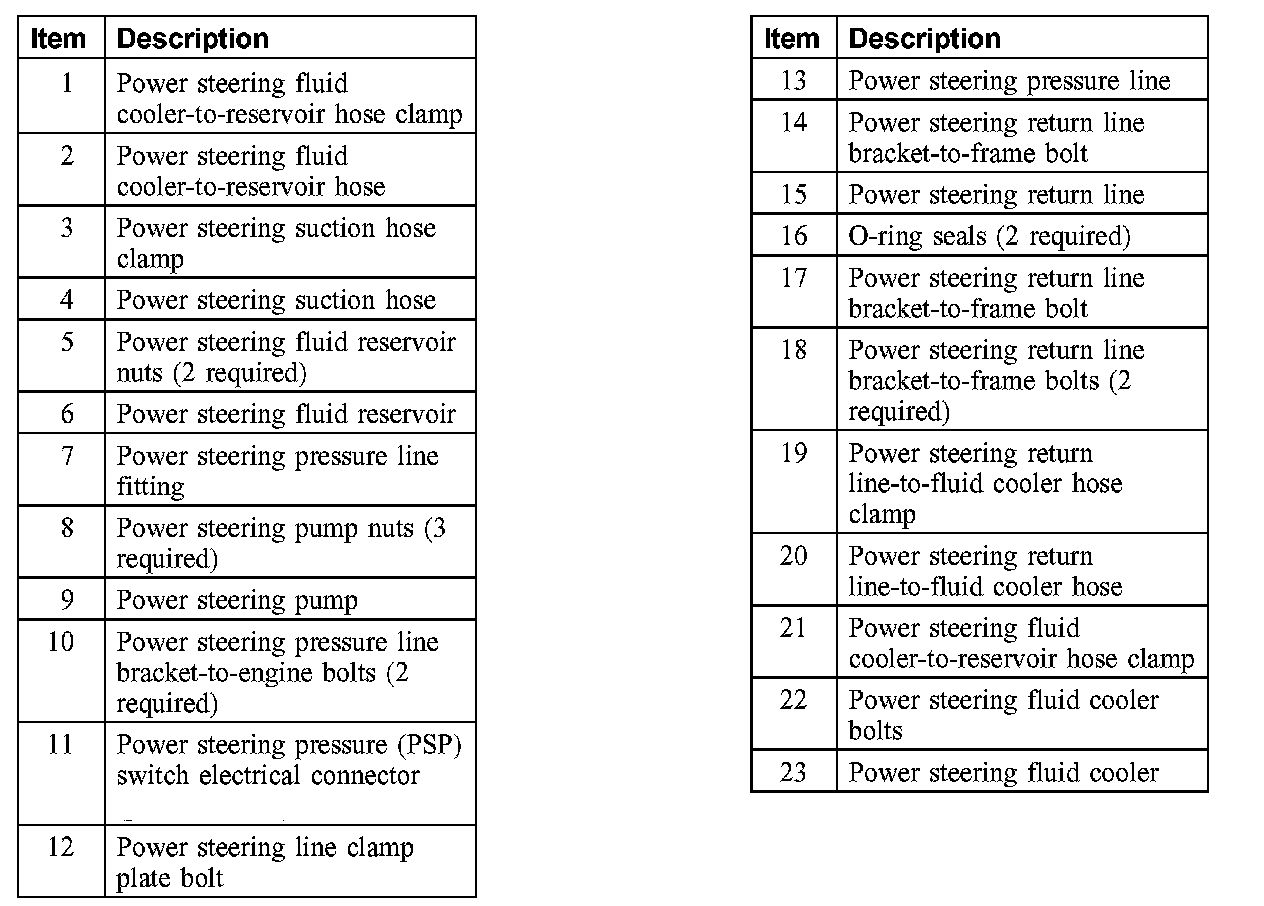

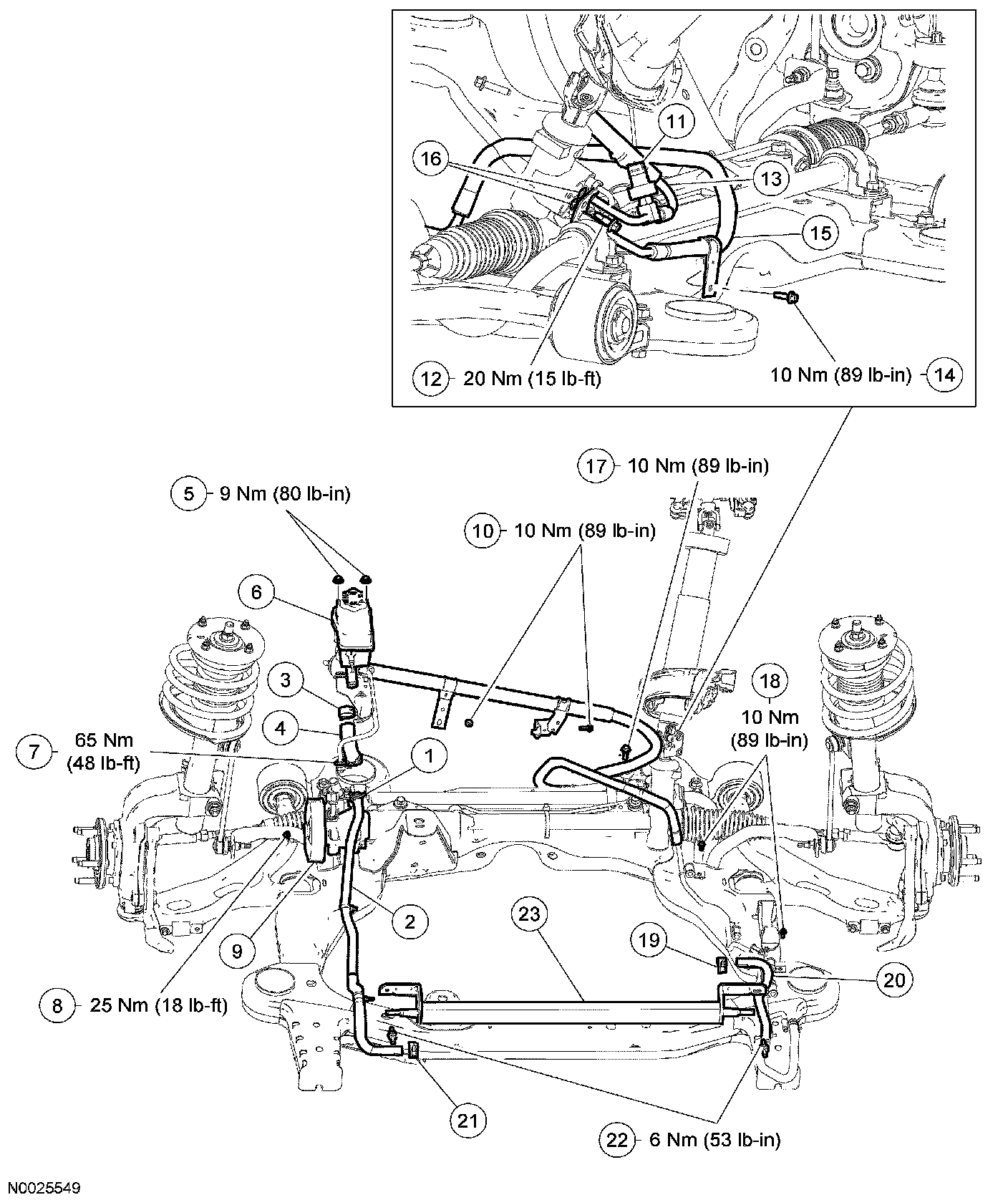

System-Exploded View
