Home >> Ford >> 2005 >> Freestyle AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering >> Steering Column

Steering Column

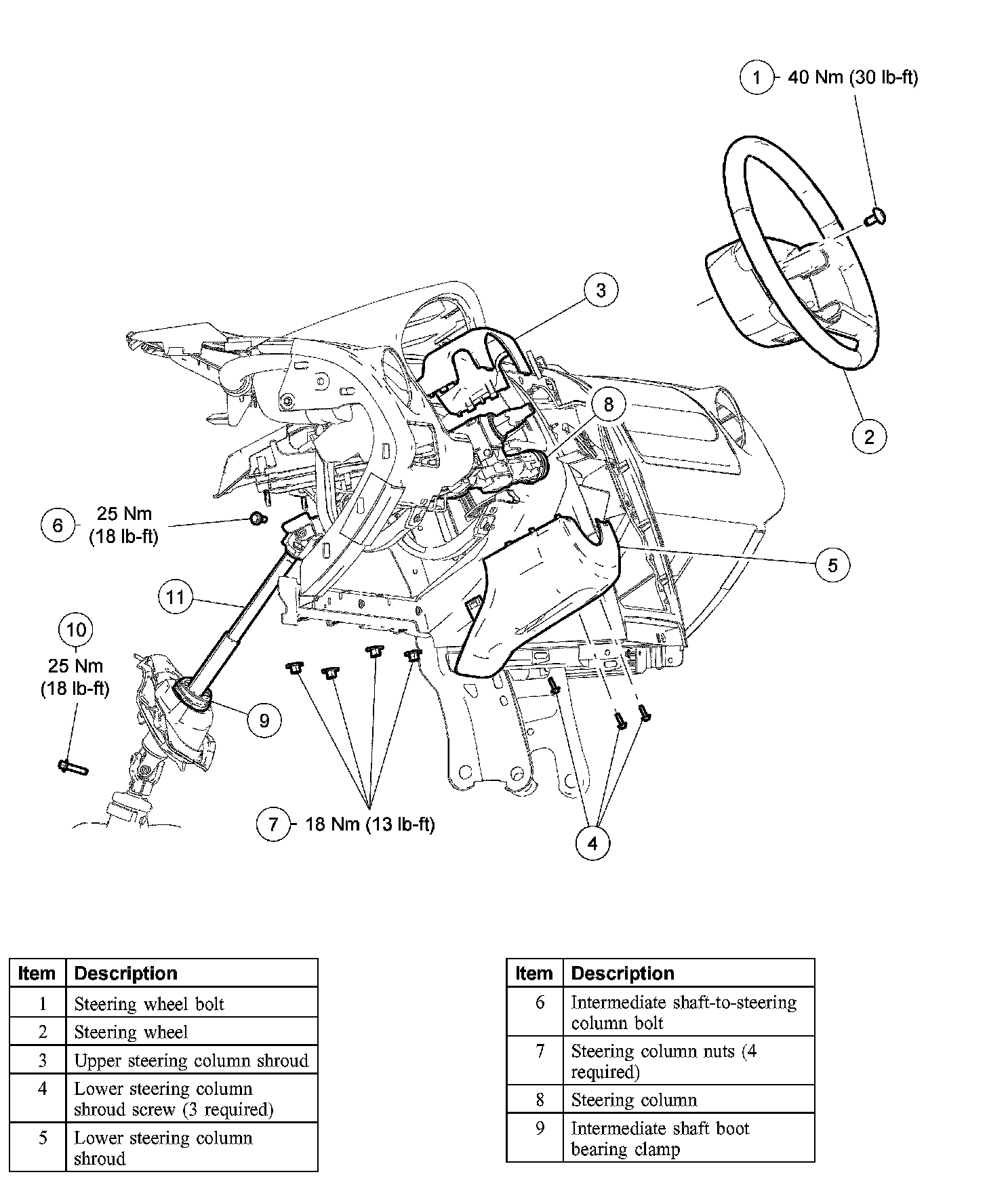

Steering Column-Exploded View
