Home >> Ford >> 2005 >> Freestar V6-4.2L VIN 2 >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Control Module >> Locations >> Climate Controlled Seat Module >> Passenger Side

Passenger Side

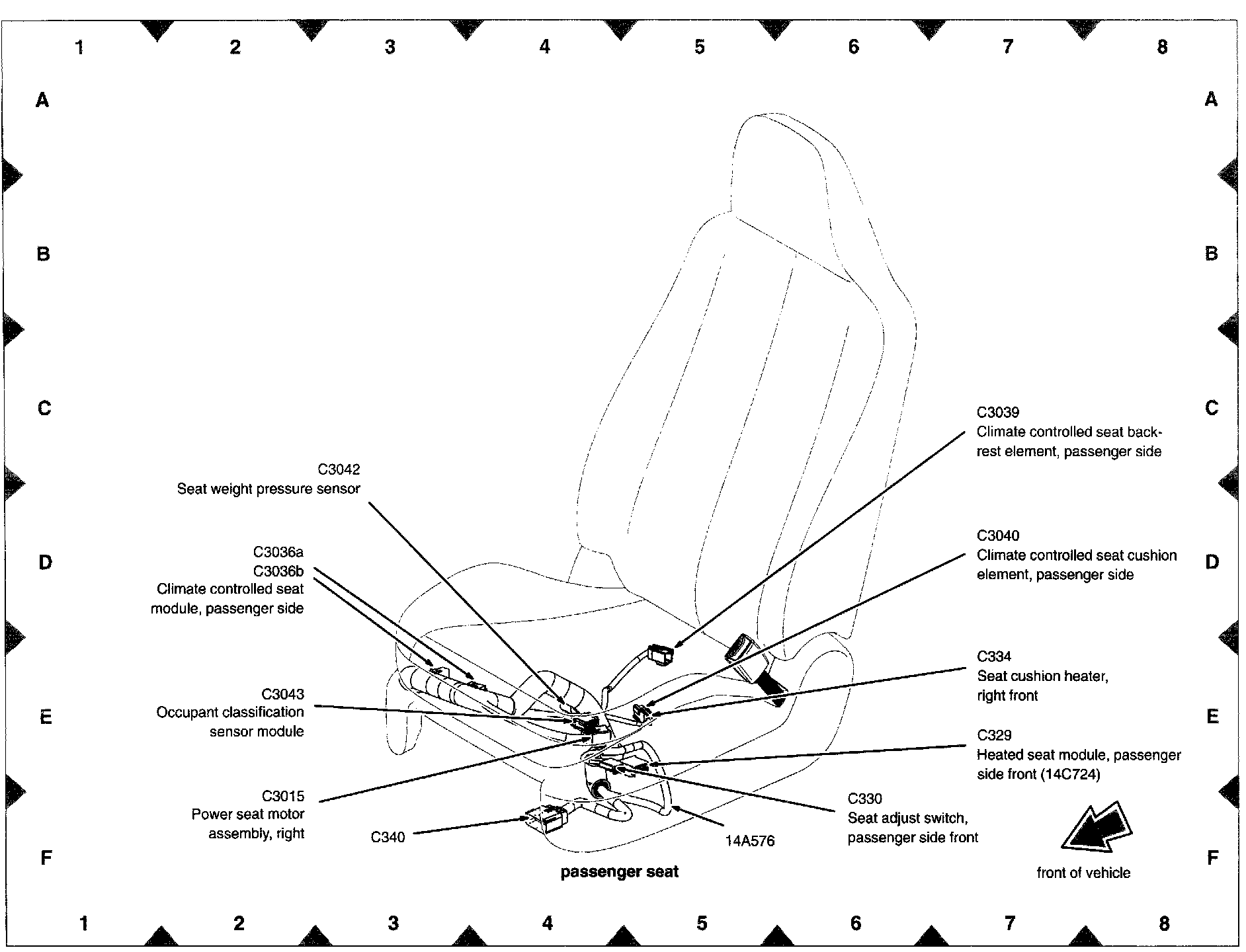

View 151-17 (Passenger Seat):
